2. PRINTER SETUP ENGLISH VERSION
2.6 Loading the Media
E2- 5

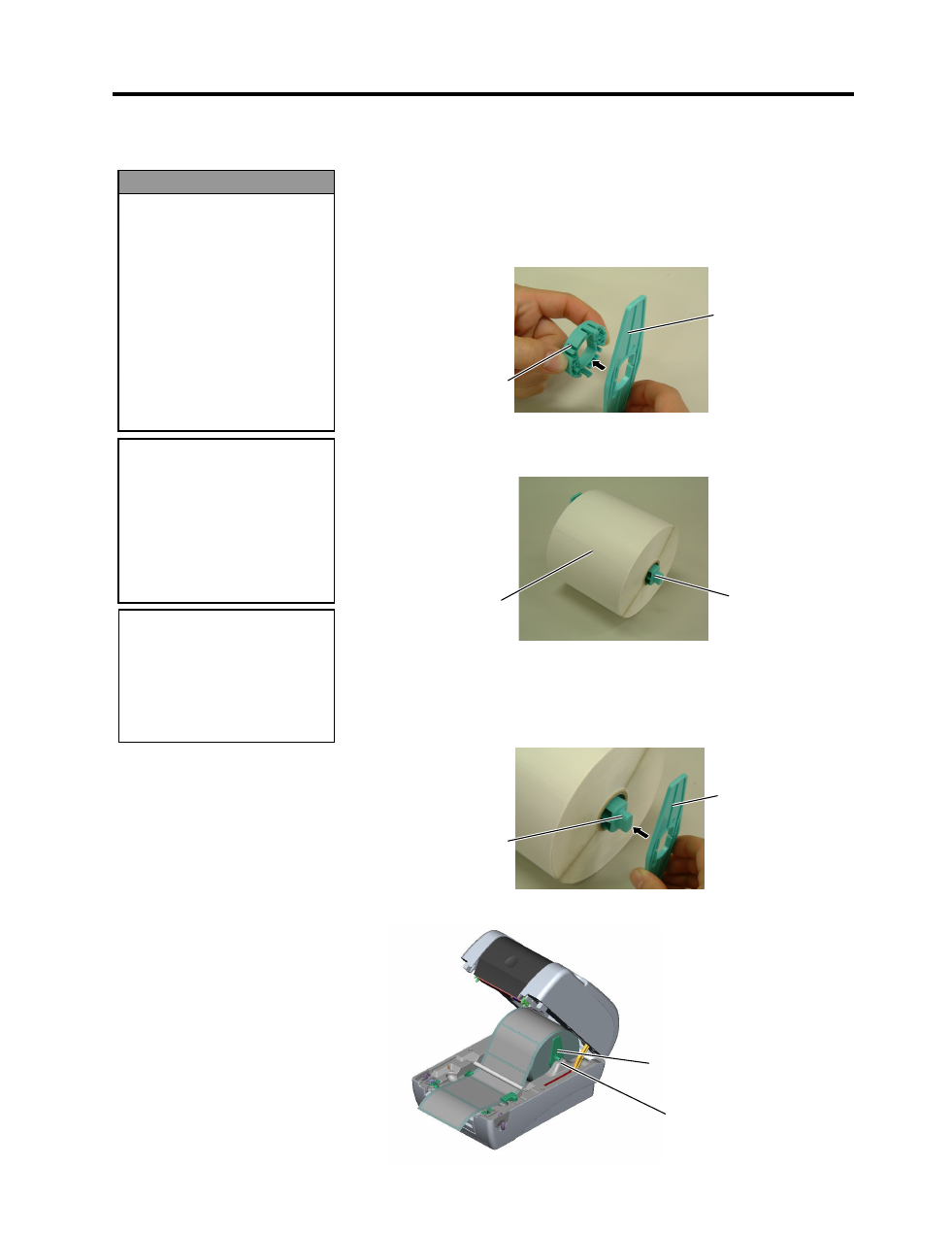

2.6 Loading the Media This section describes in detail how to load the media.
1. Turn OFF the printer and open the Top Cover.
2. Take out the Media Holder Ass’y from the printer.
3. Remove one of the Media Holders from the Media Shaft.
4. When the inner core diameter of the media roll is 25.4 mm (1”),
remove the Spacers from the Media Holders. The Spacers are
required to print media rolls with 38.1-mm (1.5”) inner core diameter.
5. Put the media roll onto the Medial Shaft so that the print side faces up
as shown below.
6. Hold the Media Holder with the smooth side facing the media roll,
align the Media Holder’s centre hole with the Media Shaft, and then
install the Media Holder by sliding it onto the Media Shaft. Make
sure that the media roll is positioned at the centre of the Media Shaft.
7. Insert the Media Holder Ass’y into the slots of the printer.
WARNING!
1. Do not touch any moving
parts. To reduce the risk
of fingers, jewellery,
clothing, etc. being drawn
into the moving parts, be
sure to load the media
once the printer has
stopped moving
completely.
2. To avoid injury, be careful
not to trap your fingers
while opening or closing
the cover.
CAUTION!
Be careful not to touch the
Print Head Element when
opening the Top Cover.
Failure to do this may cause
missing dots by static
electricity or other print quality
problems.
Media Shaft
Media Holder
Media Shaft
Media
Spacer
Media Holder
NOTE:
When the outer roll diameter
exceeds 127 mm (5”) or the inner
core diameter exceeds 38.1 mm
(1.5”), an optional External
Media Roll Hanger is required.
For details, refer to page 2-8.
Media Holder Ass’y
Slot
