9
5. OPERATION
5.1. Operating the Camera
The following camera operations can be performed when the Control indicator is on.

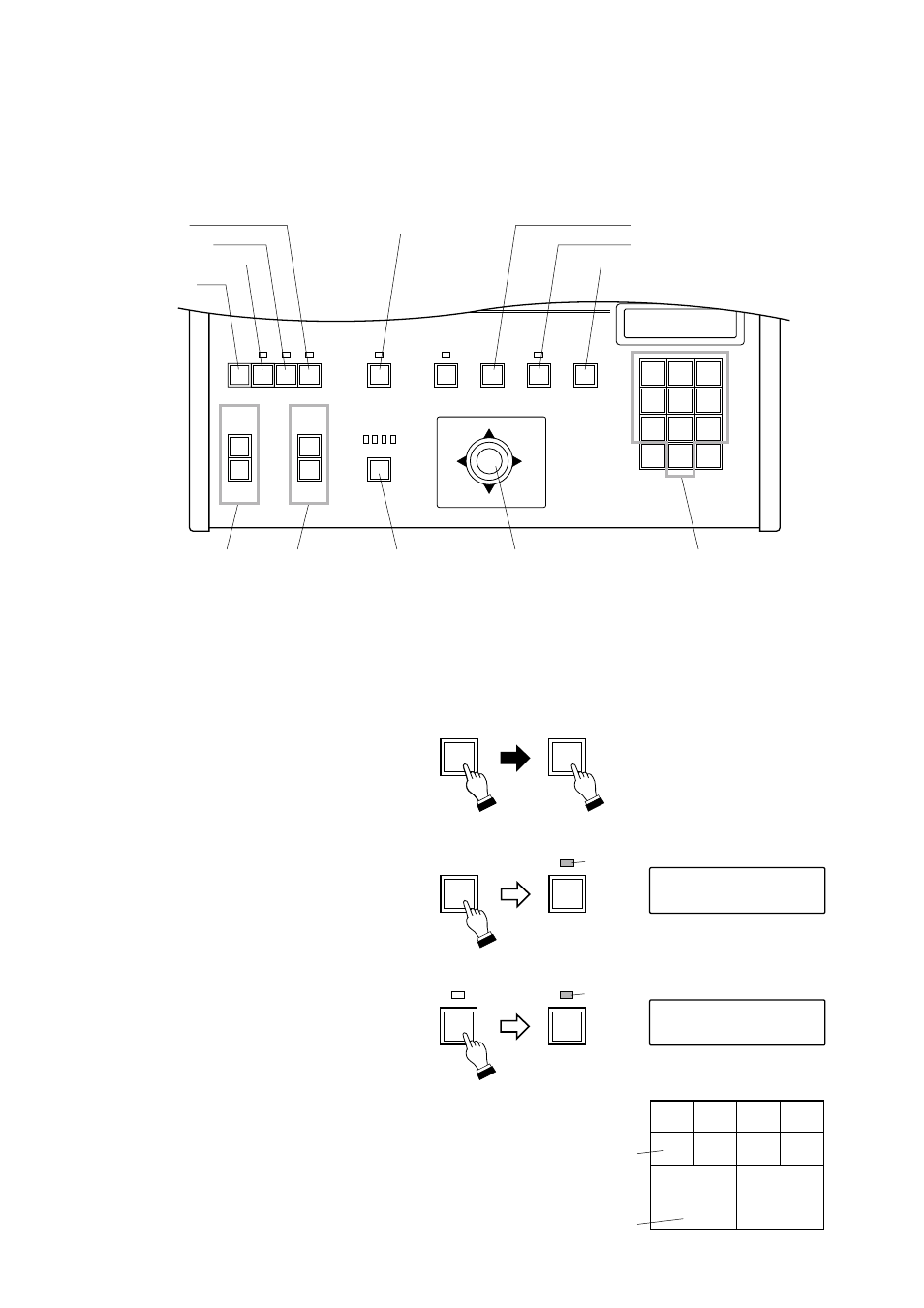

[Operating keys]
WIPER
ZOOM
TELE
WIDE
FOCUS
FAR
NEAR
LENS SPEED
UP
DOWN
RIGHT LEFT
LOW HIGH
DEF AUX AUTO AF POSITION CONTROL FREEZE FULL
REMOTE CONTROLLER C-RM500
1 2 3
4 5 6
7 8 9
C 0 SET
Wiper key
Zoom key Focus key Lens speed key
Defroster key
Auxiliary key
Auto key
Full-screen key
Control key
Position key Auto-focus key
Joystick Numeric keypad
5.1.1. Selecting cameras for operation
Cameras to be manually controlled can be selected during full-screen or multi-segment screen display.
(Refer to p. 10 – 12 for individual camera operations.)
Step 1. Using the numerical keypad, press the
desired camera number.
Step 2. Press either the Full-Screen key or
Control key.
2-1. Operation in full-screen display
format
Press the Full-Screen key.
The Control indicator will light,
permitting operation of the designated
camera.
2-2. Operation in multi-screen display
format
Press the Control key during multi-
screen display.
The Control indicator will light,
permitting operation of the designated
camera.
Note
Both XX and YY camera images can be freely
set using the switch.
LCD screen
1 3 C H A N N E L
F U L L CONTROL
Lights
LCD screen
1 3 C O N T R O L
Monitor screen
(10-segment split-screen display)
09 10 11 12
13 14 15 16
YY XX
Camera name
This camera can be operated.
CONTROL CONTROL
Lights
1 3
(Example)
