5.2.2. Viewing the freeze screen (only active when the Multi-Switcher is connected)

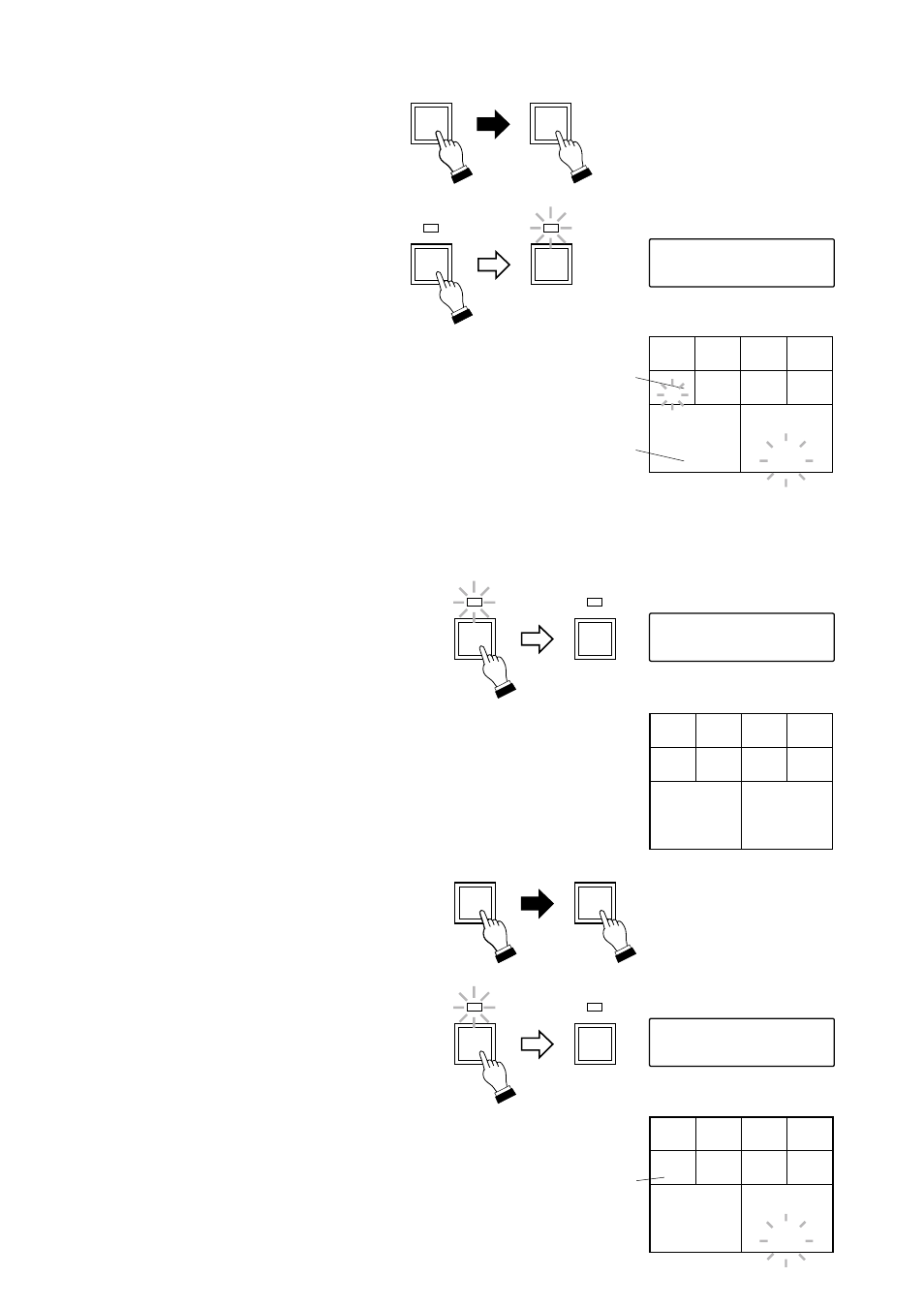

Step 1. Enter the camera number to
freeze using the numeric
keypad.
Step 2. Press the Freeze Screen key.
The "F" indication will flash on
the corresponding camera
image screen.
Step 3. Repeat Steps 1 and 2 to freeze
other camera images.
Note
In a system using the RS-232C to
control the Multi-Switcher, the freeze
screen display is only possible when the
full-screen mode is selected.
[Simultaneously resetting all freeze displays]
Press the Freeze Screen key.
[Resetting individual freeze displays]
Step 1. Enter the camera number to reset the
freeze display using the numeric
keypad.
Step 2. Press the Freeze Screen key.
14
LCD screen
1 3 F R E E Z E
FREEZE FREEZE
Flashes
Monitor screen
(10-segment split-screen display)
09 10 11 12
F 14 15 16
FREEZE XX
Camera name
Freeze display indication
Note: Two lower screens can be freely
set using the switcher.
1 3
(Example)
LCD screen
FREEZE FREEZE
Monitor screen
(10-segment split-screen display)
09 10 11 12
13 14 15 16
XX
The freeze display will be reset.
FREEZE
LCD screen
FREEZE FREEZE
Monitor screen
(10-segment split-screen display)
09 10 11 12
13 14 15 16
YY XX
1 3
(Example)
