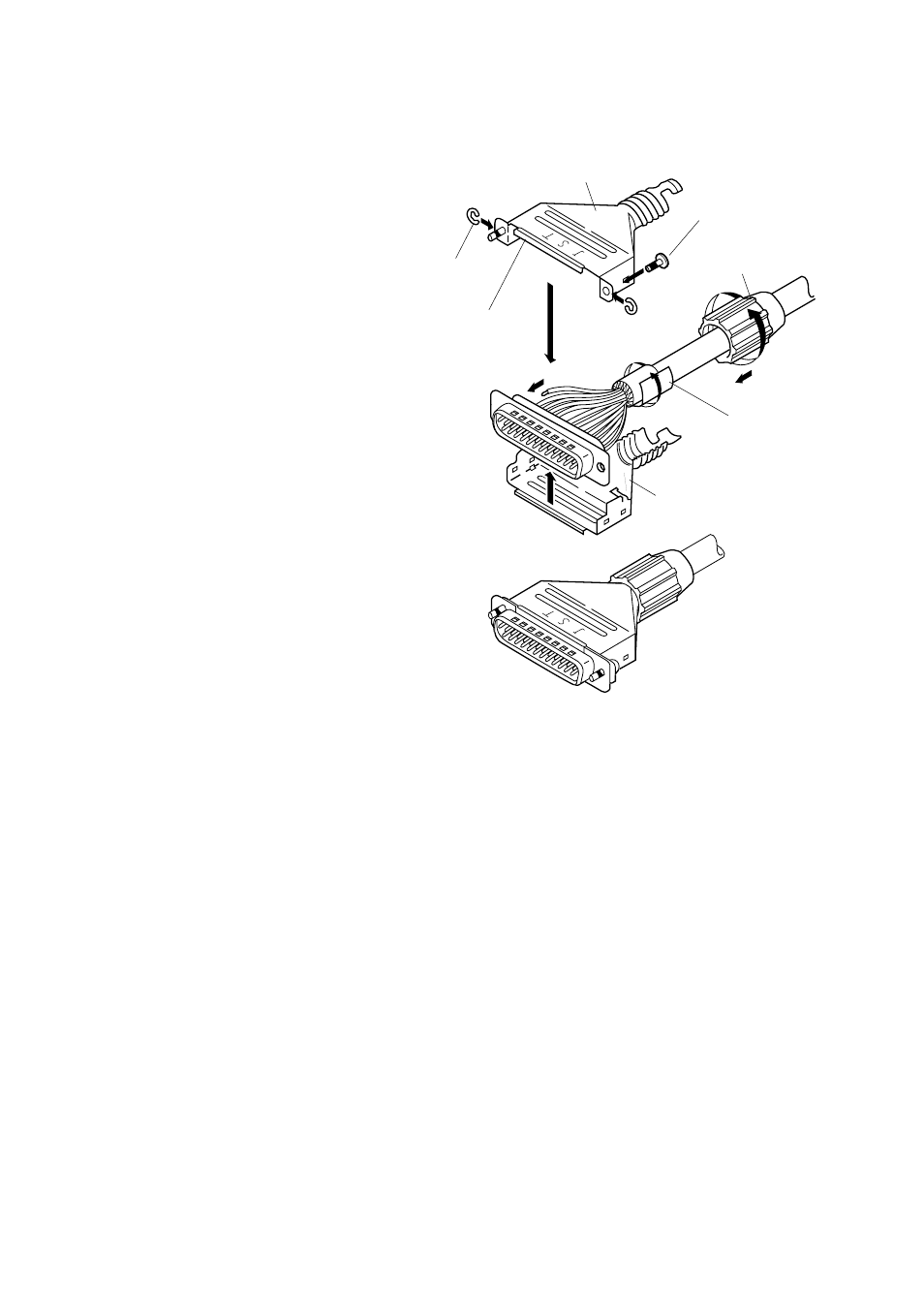

7.6.2. Assembling D-sub connectors onto cables
Prepare the D-sub connector supplied with the Unit.
Step 1. Solder the cable wires to the
corresponding connector pins to
be used.
Step 2. Bend back the braided shield and
wrap with the copper foil tape.
Step 3. Cover the connector with shield
cover A.
Step 4. Align shield cover B with shield
cover A, and press till its hook fits
into place.
Step 5. Tighten the nut.
Step 6. Install the lock screws.
Step 7. Mount the ring stopper to the
screws.
4
6
7
Shield cover B
Lock screw
Nut Ring stopper
Hook
1
2
5
Copper foil tape
Shield cover A
3
