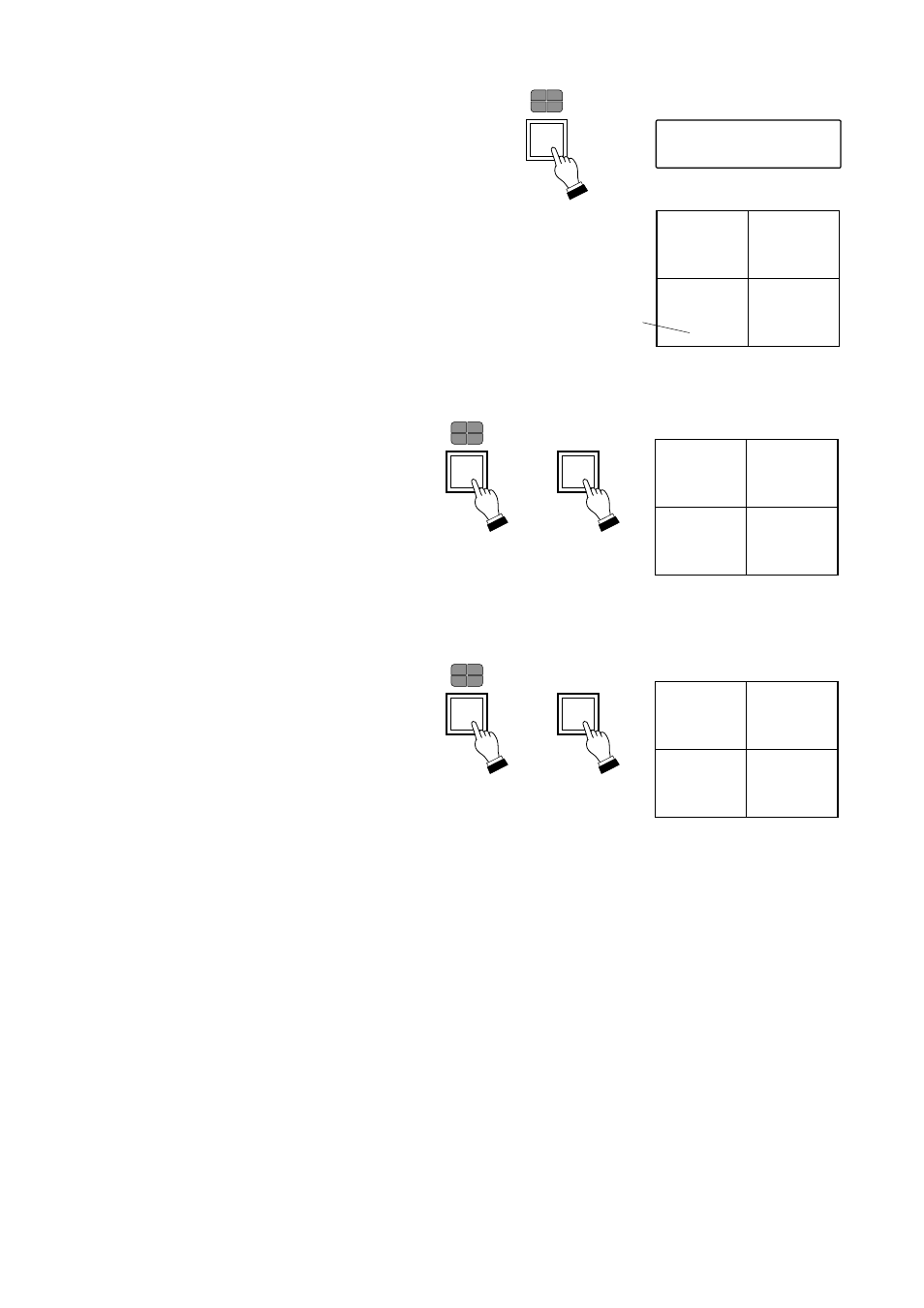

[4-segment split-screen viewing]
Step 1. Press the 4-Segment Split-Screen key.
The images of camera numbers 1 – 4 (Group 1)
will be displayed on the monitor.
Step 2. Press the 4-Segment Split-Screen
key again, or the Group Selector key.
The images of camera numbers 5 – 8
(Group 2) will be displayed on the
monitor.
Step 3. Repeat Step 2 to display other
succeeding the images of camera
numbers. The displayed camera
group is switched to Group 3
(Cameras 9 – 12), Group 4 (Cameras
13 – 16) and then back to Group 1
each time the 4-Segment Split-
Screen key is pressed.
18
LCD screen
4 – S E G M E N T
GROUP
SELECT
or
Monitor screen (Group 1)
04
03
02
01
Camera number
Monitor screen (Group 2)
08
07
06
05
GROUP
SELECT
or
Monitor screen (Group 3)
12
11
10
09
