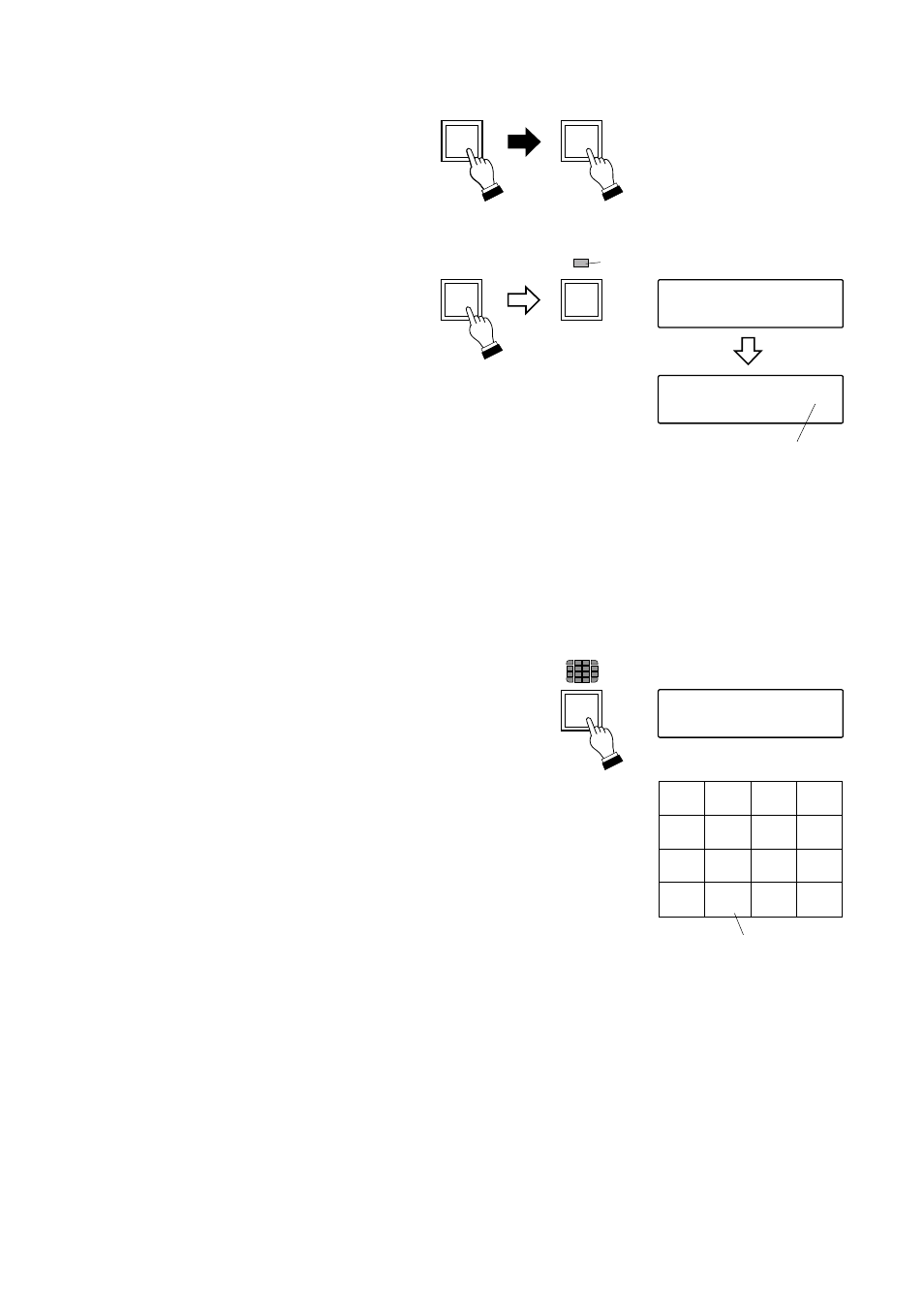

5.2.5. Viewing full-screen displays

Step 1. Enter the camera number to be

displayed on the full screen using the
numeric keypad.

Step 2. Press the Full Screen key.

The designated camera image will be
displayed on the full screen.
Simultaneously, the Control indicator
lights, permitting camera operations
with the joystick.

5.2.6. Viewing multi-screen displays (only active when the Multi-Switcher is connected)

[16-segment split-screen viewing]

Press the 16-Segment Split-Screen key.
All connected camera images will be displayed on the monitor.

LCD screen

1 3

C H A N N E L

1 3

Camera number displayed
in full-screen format

CONTROL

FULL

Lights

(Example)

LCD screen

1 6 – S E G M E N T

Monitor screen

Camera number
