Page 22: Continued
2-4
The CPU card mounts onto the CPU motherboard. The CPU card contains a service port,
a direct drive user interface connection, and a port for a service modem.
MODEM
2
LED1
LED2
LED3
SERVICE PORT
DISPL
A
Y
CPU CARD
BD ASSY
566-149
BA
T ON
BA
T OFF

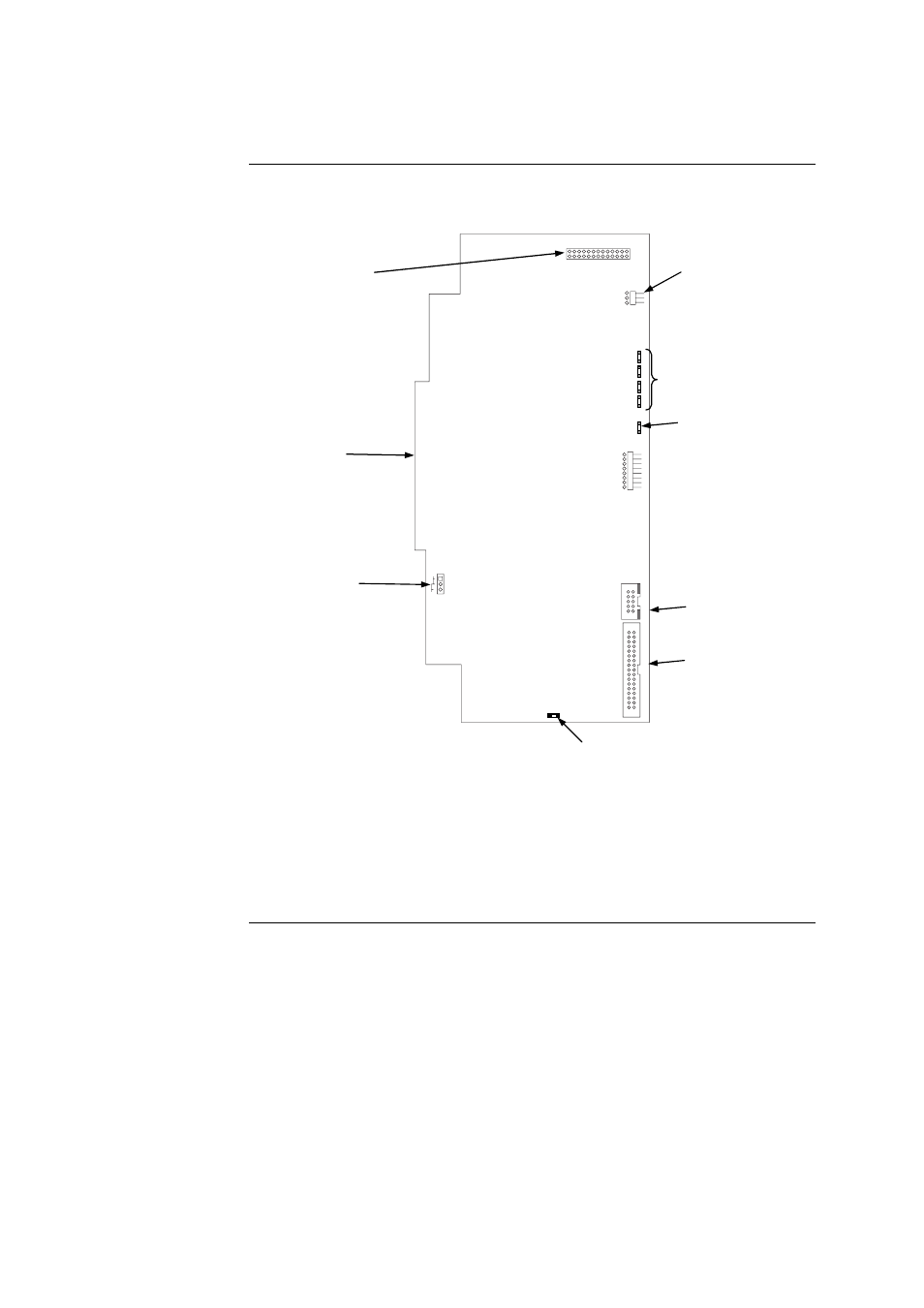

Figure 2-2. CPU Card (566-149)
Continued on next page
Introduction to 4100U-S1 Cabinet,
Continued
CPU Card
SERVICE MODEM
CONNECTOR (P4)
BATTERY BACKUP
ON/ OFF JUMPER (P3)
SERVICE PORT (P5)
DIRECT-DRIVE
DISPLAY PORT (P6)
CONNECTOR TO CPU
MOTHERBOARD (P9)
SERVICE PORT
COMM JUMPER (P1)
CPU BOOTLOADER LEDs
(LED1 – LED4)
TROUBLE LED (LD5)
TROUBLE LED (LED5):
OFF: No trouble.
FLASHING: CPU has power but the software is
failing to hit the watchdog
ON: The 5 V is outside the acceptable range
WARM START
SWITCH (SW1)
