http://www.TYAN.com

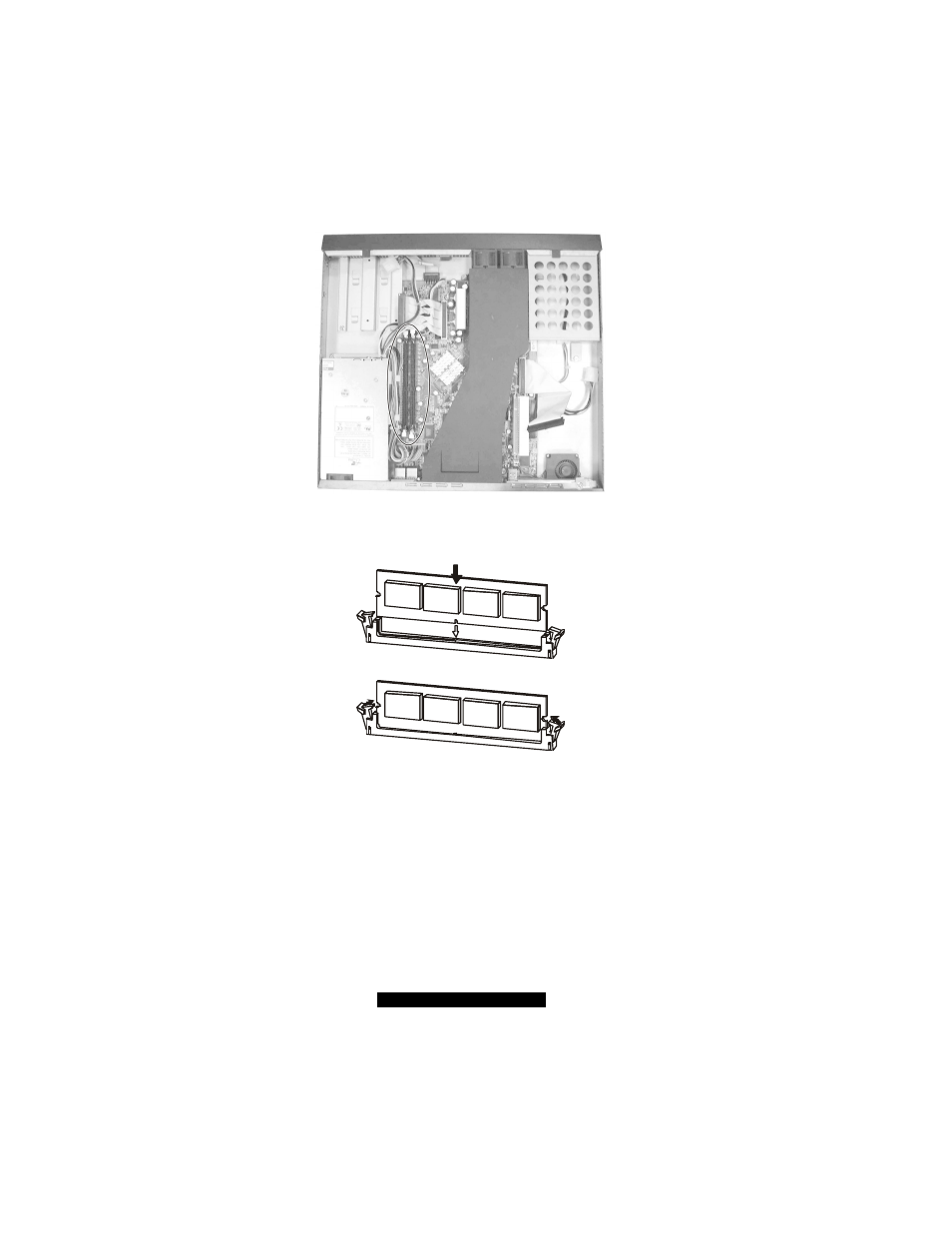

3. To install the DIMM, make sure the retaining clips are in the unlocked position, then align the

DIMM’s notched end with the socket’s corresponding end and firmly insert the DIMM into
the socket. Finally push the retaining clips inwards to lock the DIMM in place.

4. Replace the cabinet cover.

Installing a Hard Disk Drive

NOTE: Make sure that the jumper setting of the hard disk drive is set to “Master.” (See the
hard disk drive’s documentation for information.)

1. Remove the cabinet cover (see previous section).

2. Remove the screw from the hard disk drive bracket and detach the bracket from the cabinet.
