ATSC-100
Stand Alone ATSC/NTSC/QAM Receiver
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
Specifications subject to change without notice
Available through:
©2008 ToteVision
• ATSC/NTSC/Clear QAM receiver
• Tunes and decodes all 18 approved ATSC DTV broadcast formats
• Selectable DTV output resolution (480i/480p/720p/1080i)
• Standard definition NTSC 480i output
• Aspect ratio control 4:3 and 16:9 mode
• Component (YPbPr) and composite (CVBS) video outputs
• Remote control • Stereo analog audio output
• On-Screen Menu
• Advanced Electronic Program Guide
• V-CHIP & Closed Captioning from ATSC and NTSC source
• Support English, French, Spanish multi-languages
• Compact size

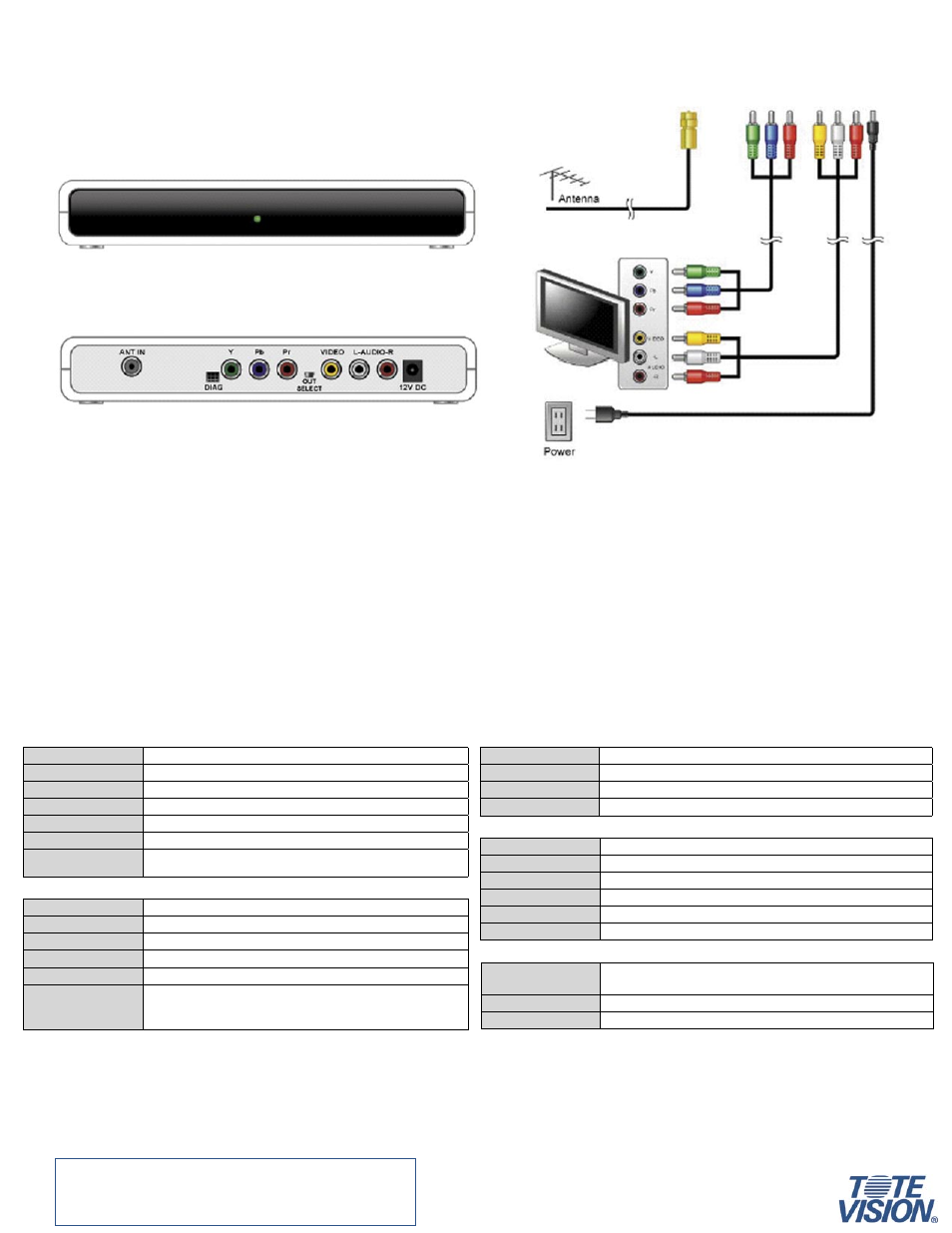

Front View
Rear View
P.31
Digital off-air (ATSC) ATSC reception of broadcast physical channels 2-69 / tuning frequency 55.25 to 859.25 MHz
Analog off-air (NTSC) NTSC reception of broadcast physical channels 2-69 / tuning frequency 5.25 to 859.25 MHz
Cable TV (NTSC/QAM) NTSC reception of cable chanels 2-125 (STD) and 1-125 (HRC, IRC)
Input Impedance 75 Ω female F-Connector
Bandwidth 6 MHz
Demodulator 8 VSB
ATSC TOV (Sensitivity) Min. -80dBm
Max. -8dBm
▼RF Inputs
Formats MPEG-2 Compatible MP@HL
Aspect Ratio 4:3, 16:9
Picture Resolution / TV Format Selectable 1080i/720p/480p/480i/ All 18 ATSC DTV format
Video Output CVBS, YPbPr
Composite (CVBS) CVBS Level: 1Vpp ± 10% @ external 75 Ω impedance
Component (YPbPr) Y Level: 1 Vpp ± 10% @ external 75 Ω impedance
Pb Level: 0.7Vpp ± 10% @ external 75 Ω impedance, DC Couple
Pr Level: 0.7Vpp ± 10% @ external 75 Ω impedance, DC Couple
▼Video
Decode MPEG-1 (Layer I & II), AC-3
Sampling Rate 32 KHz, 44.1 KHz, 48KHz
Output Stereo, mono-LR
Left/Right Channel Level 2Vpp 10% @ internal 10K Ω impedance
▼Audio
On-Screen Menu Supported
Graphical Menu 256 indexed true color
OSD transparency setting 5 levels
Closed Caption EIA-708B & EIA-608
V-CHIP Support MPAA, USTV (EIA-766)
Electronic Program Guide 16-day EPG
▼Applications & Software
Dimensions L (215 mm) x W (128.5mm, exclude connectors) / W (140mm, include connectors)
H (37 mm, exclude rubber foot) / H (40mm, include rubber foot)
Power Supply +12VDC
Power Consumption 12 Watts (Max.)
▼Physical & Hardware
