Tote Vision LCD-1901HDR - Manual

GS-07F-0069L, SIN: 246-42(1), 246-50
LCD-1901HD
LCD-1901HDL
LCD-1901HDR
• HD compatible (supports 480p/i, 720p, 1080p/i)
• RS-232 serial control provided
• Underscan capability
• Displays 16:9 and 4:3
• Front controls for Power, Menu, Up/Down, and Select
• On-screen display for brightness, contrast, back light,
hue, and volume
• IR remote control
• Composite x 2, S-Video, component, and PC capability
• Active matrix technology allows wide viewing angle
and eliminates distortion
• Anti-glare surface treatment
• Case made of durable metal
• Built-in removable desk stand
• Response Time: 16mS
• Built-in VESA 75mm FPMPMI interface for mounting
Display:
Back Light:
Input Signal:
PC compatibility:
Dot Pitch:
Colors:
Number of Pixels:
Viewing angle L/R/T/B:
Pixel Configuration:
Input Signal Level:
Speakers:
Speaker Amplifier:
LCD-1901HD: Dimensions w/o deskstand (WHD):
LCD-1901HD: Dimensions w/ deskstand (WHD):
LCD-1901HDL: Dimensions (WHD):
LCD-1901HDR: Dimensions (WHD):
Actual visible screen size (WH):
Operating temperature:
Power Requirement:
Power Consumption:
Includes switching power supply:
Rear Terminal Connections:
LCD-1901HD: Weight:
LCD-1901HDL: Weight:
LCD-1901HDR: Weight:
19" TFT LCD active matrix
Built-in CCFT
Composite NTSC/PAL (auto switching),
S-Video, Analog RGB, component
XGA, SVGA, VGA, MAC II
0.25875 (H) x 0.25875(V)mm
6-bit, 262, 144
1,024,00 dots
65/65/50/50
Stripe
1.0V P-P (positive) 75 Ohm
8 ohms, 5 W, 28 x 40mm oval type x 2
5 W x 2 @ 10% THD, 100 mV
432.5 x 310 x 44.5mm / 17" x 12.2" x 1.8"
432.5 x 352.5 x 182.8mm / 17" x 13.9" x 7.2"
19-3/8" x 13-5/16" x 2-5/16"
19" x 12.3" x 12.1" (Occupies 7 RU)
412 x 258mm / 16.2" x 10.1"
32~122°F or 0~50°C
Regulated 12VDC, 3A, negative ground
Part No. DC-1500 required for use in vehicles
9.6 W (max)
100 ~ 240VAC, 47 ~63Hz
Composite: BNC video IN/OUT, and
RCA video OUT jack for video 1 or 2
Component: RCA y/Pb/Pr jacks
S-Video IN jack
Audio: 3 RCA IN jacks (composite, audio L/R), and
3.5 stereo audio OUT jack
PC: 15-pin mini D-sub (female)
External IR jack
RS-232: 9-pin
Power: 2.5mm DC IN jack
Net: 4.5 kg. / 9.85 lbs. Gross: 6.4 kg. /14.1 lbs.
Net: 4.9 kg. /10.9 lbs Gross: 6.1 kg. /13.5 lbs.
Net: 4.9 kg. /10.9 lbs Gross: 6.1 kg. /13.5 lbs.
Resolution:
Brightness rating:
Contrast Ratio:
1440 (H) x 900 (V) dots
300 cd/m² (Nit)
800:1
Specifications subject to change without notice ©2009 ToteVision 50K
P.9
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
19" HD LCD Monitors
Dimensions (WHD): 19-3/8" x 13-5/16" x 2-5/16"
Installers Cut-Out (WH): 18" x 12-1/16"
Flush-mounted 19" Monitor

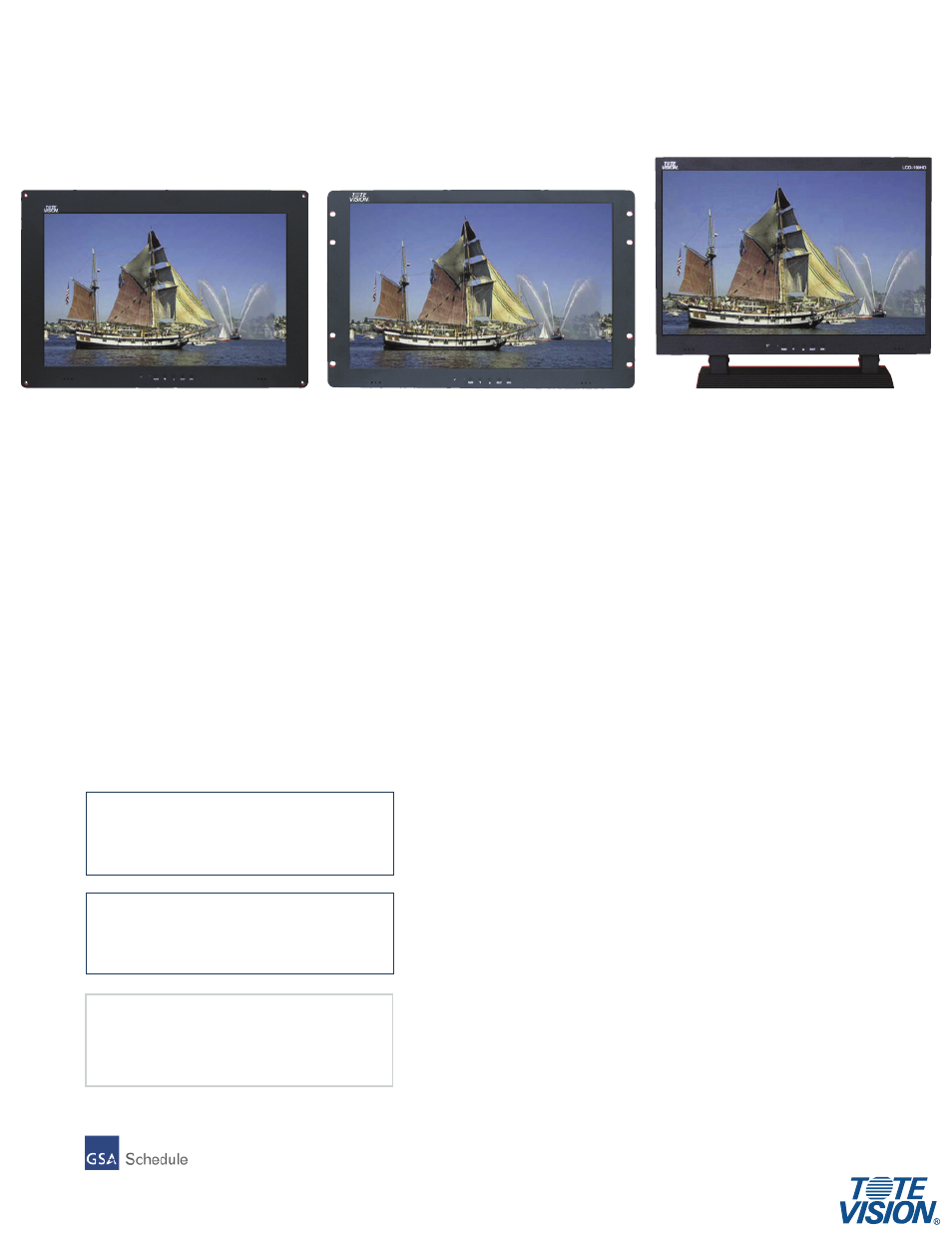

Model LCD- 1901HDL (shown above)
HM- 400 Under-cabinet hinge mount
WM- 30 Wall mount bracket (fixed)
WM-302 Wall mount with swing arm & 4-way adjustable
WMC -1720 Ceiling mount
Optional Accessories
LCD-1901HD LCD-1901HDL LCD-1901HDR
Dimensions (WHD): 19" x 12.3" x 12.1"
Occupies 7 RU
Rack-mounted 19" Monitor
Model LCD- 1901HDR (shown above)
