15.1" TFT LCD active matrix
Built-in (CCFT)
Composite NTSC/PAL (auto switching),
S-Video, Analog RGB
B
XGA 1024 (H) x 768 (V)dots
XGA, SVGA, VGA, MAC II
0.297 (H) x 0.297(V)mm
LCD-1510V: 500 cd/m² (Nit)
16.7M
400 : 1
786,432 dots
LCD-1510V: 60/60/60/60 degrees
Stripe
1.0V P-P (positive) 75 Ohm
8 ohms, 2 W, 28 x 40mm oval type x 2
2 W x 2 @ 10% THD, 100 mV
378 x 322 x 60mm / 14.9" x 12.7" x 2.4"
378 x 355 x 162mm / 14.9" x 14" x 6.4"
309 x 232mm / 12.1" x 9.1"
32~122°F or 0~50°C
Regulated 12VDC, 3500mA, negative ground
Part No. DC-1500 required for use in vehicles
35 W (max)
100 ~ 240VAC, 1A/47 ~63Hz
BNC video IN/OUT, S-Video jack
3 RCA IN jacks (composite, audio L/R),
3.5 stereo audio OUT jack, 2.1mm DC IN jack
15-pin mini D-sub (female), 9-pin Component IN jack,
RS-232, DVI
Net: 4.82 kg. / 10.62 lbs. Gross: 6.72 kg. / 14.82 lbs.
LCD-1510V
• Hot key allows toggeling between video, S-Video, and PC modes
• PIP: Picture in picture capability
• Front controls for power menu, up/down, +/-
• On-screen display for: brightness, contrast, back light, hue, volume
• Composite, S-Video, component, and PC capability
• Case made of durable ABS plastic
• Built-in removable desk stand included
• Response Time: 30mS/20mS (rising/falling)
Active Matrix 15.1" Color LCD Monitors
The Biggest Thing
in LCD Monitors
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
with
RS-232 &
DVI
DC-1500 Factory approved car cord
HM-1215 Under-cabinet hinge mount bracket
HM-400 Under-cabinet hinge mount
LM-1510V Flush mount kit, Black metal
17" (W) x 15"(H) x 2.4"(D)
Installer’s Cut-out: 15.5"(W) x 14.8"(H)
PLT-1000 VESA compliant pl)ate (75mm) FPMPMI
WM-31 Wall mount bracket (fixed) (order w/ PLT-1000)
WM-302 Wall mount with swing arm & 4-way adjustable (order w/ PLT-1000)
WM-1000 2-way adjustable wall mount bracket
WMC-1015 Ceiling mount (order PLT-1000)
Optional Accessories
Touch screen not available for the LCD-1510V.
HM-400
Specifications subject to change without notice 60K ©2008 ToteVision
P.14
Display:
Back Light:
Input Signal:
Resolution:
PC compatibility:
Dot Pitch:
Brightness rating:
Colors:
Contrast Ratio:
Number of Pixels:
Viewing angle L/R/T/B:
Pixel Configuration:
Input Signal Level:
Speakers:
Speaker Amplifier:
Dimensions w/o desk stand (WHD):
Dimensions w/ desk stand (WHD):
Actual visible screen size (WH):
Operating temperature:
Power Requirement:
Power Consumption:
Includes switching power supply:
Rear Terminal Connections:
Weight:
• HD compatible (supports 480p/i, 720p)
WM-302
• RS-232 feature allows external devices to
control the monitor through the serial port.

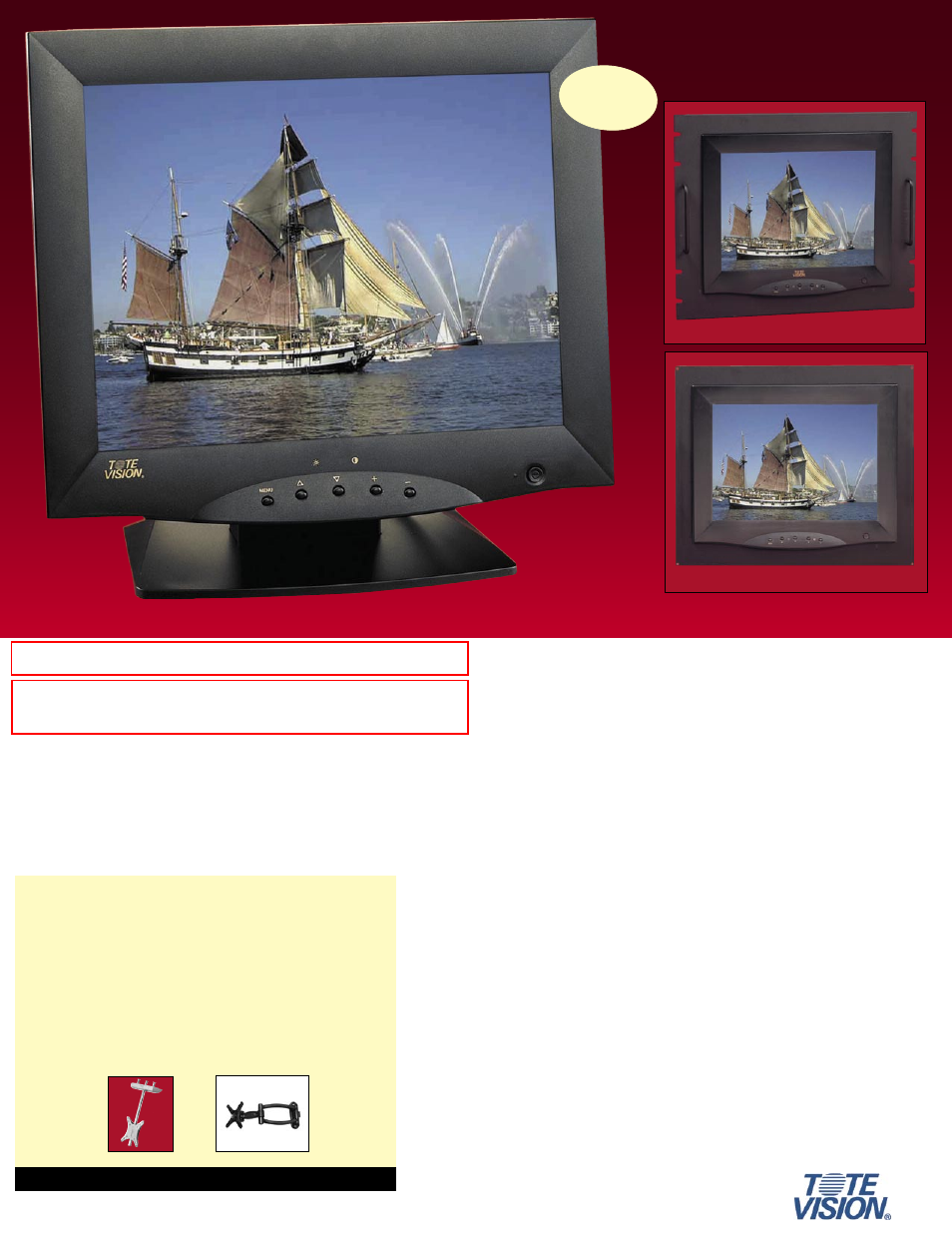

Shown with LM-1510V Flush Mount
Shown with RM-1510V Rack Mount
