Tote Vision LCD-1048HDR User Manual

4" color lcd with component input, Optional accessories

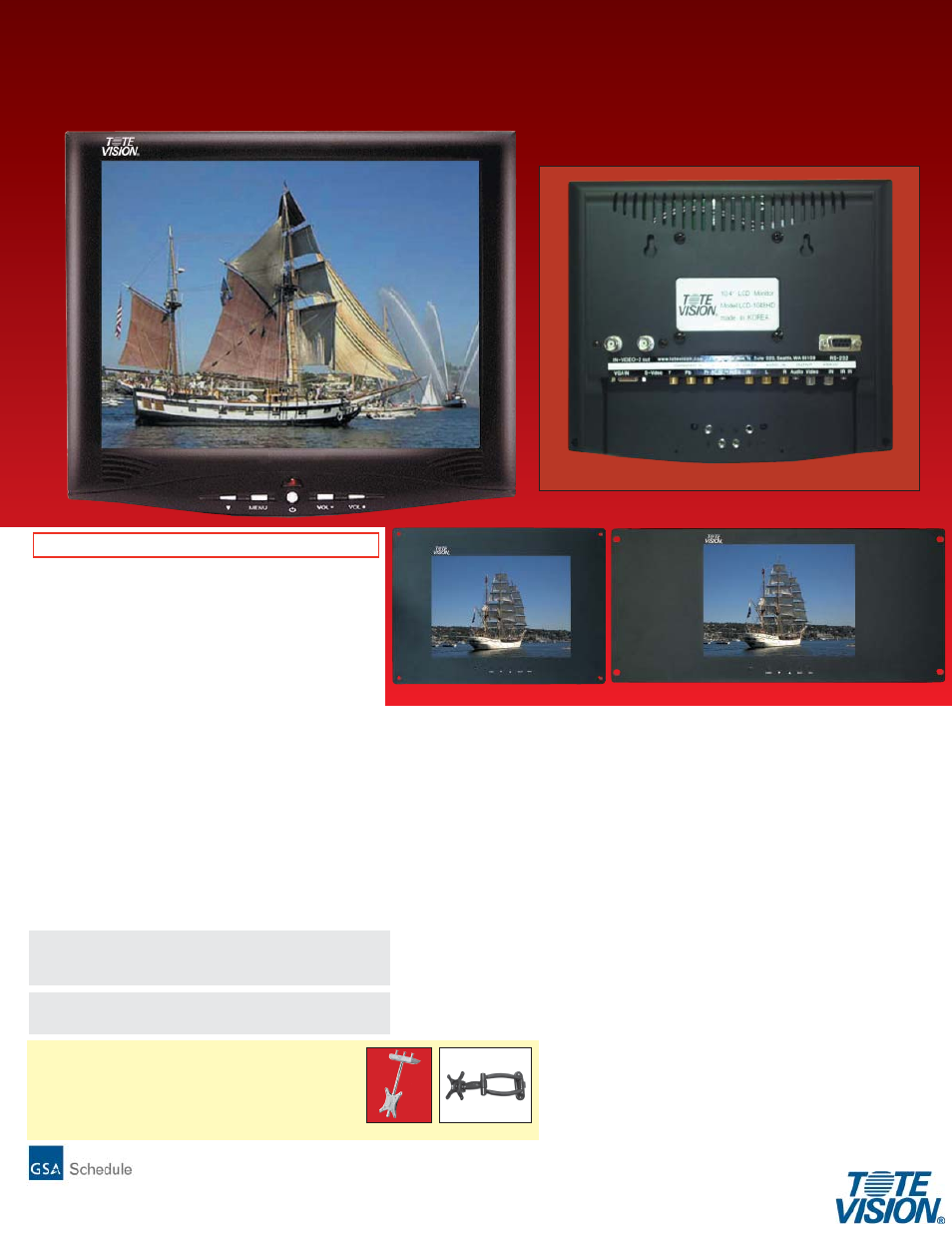

background image

10.4" TFT LCD active matrix
2 x CCFT
[Composite, component, & S-Video, NTSC/PAL auto sensing]
analog RGB
0.206 (H) x 0.206 (V)mm
1024(H) x 768(V) [700 lines for CCTV] or
786,432 dots
350 cd/m² (Nit)
262,144
500:1
90/90/90/90 degrees
RGB Vertical Stripe
5W x 2, 8 ohm
19" x 7" x 2" (Occupies 4 RU or 5 RU - call to confi rm)
269 x 229 x 47mm / 10.6" x 9.0" x 1.9"
269 x 229 x 152mm / 10.6" x 9.0" x 6.0"
210 x 158mm / 8.3" x 6.2"
50~104°F or 10 ~ 40°C
14 ~ 158°F or -10 ~ 70°C
12VDC, 2A, negative ground / 24W
15-pin mini D-sub, 4-pin RS-232, S-Video,
component (RCA x 3), 3.5 PC audio IN,
RCA x 2 and BNC composite IN/OUT,
RCA L/R audio IN, 3.5 audio line OUT,
3.5 IR IN, L/R screw down speaker connectors,
2.1mm DC jack and screw down DC connector
Net: 1.94 kg. / 4.28 lbs. Gross: 3.4 kg. / 7.4 lbs.
Net: 2.79 kg./ 6.14 lbs. Gross: 3.9 kg. / 8.5 lbs.
Net: 1.2 kg. / 2.5 lbs. Gross: 3.3 kg. / 7.3 lbs.

Display:

Back Light:

Input Signal:

Dot Pitch:

Resolution:

Number of Pixels:

Brightness Rating:

Colors:

Contrast Ratio:

Viewing Angle L/R/T/B:

Pixel Confi guration:

Audio output:

LCD-1048HDR Dimensions (WHD):

LCD-1048HD Dimension w/o desk stand (WHD):

LCD-1048HD Dimension with desk stand (WHD):

Actual visible screen size (WH):

Operating temperature:

Storage temperature:

Power requirement / consumption:

Rear Terminal Connections:

LCD-1048HDL Weight:

LCD-1048HDR Weight:

LCD-1048HD Weight:

10.4" Color LCD with
Component Input

LCD-1048HDL
LCD-1048HDR
LCD-1048HD

1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109

Tel: 206-623-6000 • FAX: 206- 623-6609

E-mail: [email protected]

http://www.totevision.com

GS-07F-0069L, SIN: 246-42(1), 246-50

Specifi cations subject to change without notice

30K

©2008 ToteVision

DC-1500 Factory approved car cord
HM-400 Under-cabinet hinge mount
WM-31

Wall mount bracket (fi xed)

WM-302 Wall mount with swing arm & 4-way adjustable

Optional Accessories

HM - 400

WM - 302

• RS-232 serial control provided
• Composite video BNC IN/OUT capability
• Underscan

capability

• On-screen display controls, with front controls for
power, Select, Menu, and Volume Up/Down.
• Wireless remote control provided.
• Hot key on remote control allows easy toggeling between
composite, S-Video, component, & PC inputs
• Rear IR jack allows direct connection for
use with IR repeater systems
• Speaker output on board allows screw down
connection for R/L audio
• Built-in

amplifi er provides ample power to drive

right and left stereo 8 ohm speakers
• 2

built-in

speakers

• LCD-1048HDL and LCD-1048HDR are made of durable
metal with black powder coating.
• LCD-1048HD cabinet is made of durable ABS plastic with
2 key hole slots for wall mounting
• Built-in interface and proper cable exiting for
wall arm mounting, VESA 75mm compliant
• Screw down DC feature provides additional
security for power connection
• Response time: 15/25 ms (rising/falling)
• SPS included, 100 ~240 VAC

HD Compatible (supports 480p/i, 720p, 1080p/i)

LCD-1048HDL Unit in Flush Mount Kit

Dimensions(WHD): 337 x 247x 42mm / 13.3” x 9.7” x 1.7”
Installers Cut-Out (WH): 299 x 209mm / 11.8” x 8.2”

Back View

LCD-1048HDR Unit in 19" Rack Mount Kit

Occupies 4 RU or 5 RU (call to confi rm)

P.17

LCD-1048HDL

LCD-1048HDR
