Tote Vision LCD-841SDI - Manual (Page 22)

7" TFT LCD active matrix
LED
NTSC/PAL (auto sensing)
800 (H) x 480 (V) dots
0.19(H) x 0.19(V)mm
350 cd/m² (Nit)
300 : 1
1.2 M
65/65/55/60 degrees
Stipe
6~20 VDC, 500mA, + pin, - ground
350mA@ 12 VDC (max)
1.0 V P-P (positive) 75 Ohm
174 x 134 x 35mm / 6.9" x 5.3" x 1.4"
152.4 x 91.4mm / 6" x 3.6"
10 ~ 104°F / -12 ~ 40°C
-13 ~ 140°F / -25 ~ 60°C
BNC composite video IN/OUT,
S-Video IN/OUT, BNC component IN/OUT
RS-232, Tally , DVI-D, 2.1mm DC IN jack
Net: 0.7 kg./ 1.5 lbs Gross: TBD
(Height including 5mm mounting pad: 134 + 5mm = 139mm)
Display:
Back Light:
Input Signal:
Resolution:
Dot Pitch:
Brightness rating:
Contrast Ratio:
Number of Pixels:
Viewing angle L/R/T/B:
Pixel Configuration:
Power Requirements:
Power Consumption:
Video Input Level:
LCD-703HDA/HDV: Dimensions (WHD):
Actual visible screen size (WH):
Operating temperature:
Storage temperature:
Rear inputs:
LCD-703HDA / HDV: Weight:
• RS-232 feature allows external devices to
control the monitor through the serial port.
The Biggest Thing in
Small HD Monitors
• DVI-D input jacks accepts digital input.
• Anti-glare treatment adds to viewing pleasure
• Displays either 16:9 or 4:3 aspect ratio
• Front controls for : menu, up, down, On/Off, mode
• IR remote control
• Case made of durable metal.
• A/C adaptor (Part No. AC-1000) included
• Built-in interface and proper cable exiting for wall or
arm mounting VESA 75mm FPMPMI compliant
• Response time: 22mS (Rising), 35mS (Falling)
• Mounting pad with ¼ -20 threaded socket (located
at bottom and can be moved to top).
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
GS-07F-0069L, SIN: 246-42(1), 246-50
Specifications subject to change without notice 20K-30K ©2008 ToteVision
HS-1 Hot shoe mount
MB-3 Desk stand
SS-703HD Sun shield
TB-703
Custom Tote bag with
sun shield for LCD-703HD
WM-30 Wall mount bracket (fixed)
Optional Accessories
• HD compatible (supports 480p/i, 576p/i, 720p, 1080p/i)
• LED backlight provides longer life, uses less
power and provides better color saturation
NEW
• Underscan capability
• Blue gun feature provides for easy
adjustment of screen display
Active Matrix 7" Color LCD Monitors
Custom Tote Bag
Order TB-703HD for nylon tote bag with sun sheild.
LCD-703HDA
LCD-703HDV
LCD- 703HDA Unit with Anton Bauer QRC-Gold mount
LCD- 703HDV Unit with “V” lock mount for IDX batteries
SS-703HD
Metal Sun Sheild
P.22
Both component & DVI inputs accept 1080p/i.

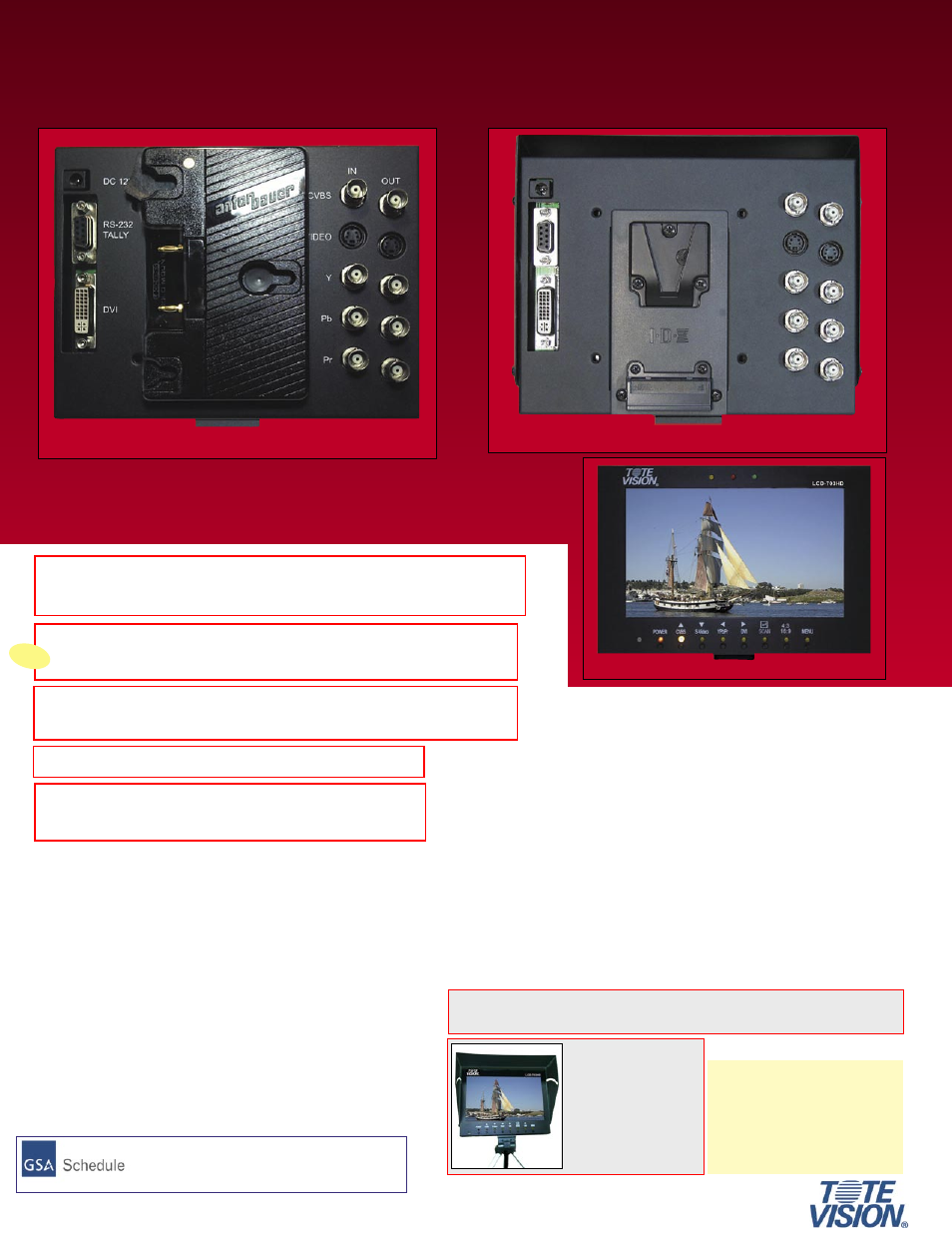

Front View
