• LCD-560 and LCD-560L features 2 composite video inputs with front
controls for channels A & B, contrast, tint, color, brightness, and power
• LCD-560 and LCD-560 DIP switches allow user to select mirror image
or Up/Down image for both channels A and B, and “auto ON with power” feature
• LCD-560X3 tilts 90° in 19" rack for optimum viewing, occupies 3 rack units
• Composite video passive loop through capability for all 3 monitors (always active
regardless of power). Loop out termination is provided.
• Self-powered 3 color tally system
• Front controls: contrast, tint, color, brightness, power, video, S-Video
• Broadcast quality display by auto termination switch in the BNC connector
• LCD-560LX: Rear controls: contrast, tint, color, brightness
Front control for power can be disabled by DIP switch
• For color and B&W applications
• Low power consumption
• LCD-560 and LCD-560L cases made of durable steel
• LCD-560X3 case made of durable aluminum & steel
• Active matrix technology allows wide viewing angle
• Active matrix technology eliminates distortion
• Response Time: 22ms
• 1/4-20 mounting pad included for LCD-560
• VESA 75mm compliant
• AC adaptor included.
GS-07F-0069L, SIN: 246-42(1), 246-50
Display:
Back Light:
Input Signal:
Resolution:
Dot Pitch:
Brightness:
Contrast Ratio:
Viewing angle L/R/T/B:
Power Requirements:
Power Consumption:
LCD-560: Dimensions (WHD):
LCD-560L / LCD-560LX: Dimensions (WHD):
LCD-560X3: Dimensions (WHD):
Actual visible screen size (WH):
Operating temperature:
Storage temperature:
LCD-560 / LCD-560L Connectons:
LCD-560X3 Rear Connectons:
LCD- 560: Weight:
LCD- 560L/LX: Weight:
LCD- 560X3: Weight:
5.6" TFT LCD active matrix
LED
NTSC/PAL (auto sensing)
960(H) x 234(V) dots
0.118(H) x 0.362(V)
350 cd/m² (Nit)
300:1
65/65/55/55
10 ~ 15 VDC, 0.4 A @ 12 VDC
5 W
134 x 134 x 21mm / 5.3" x 5.3" x 0.8"
174 x 175 x 22mm / 6.8" x 6.8" x 0.9"
432 x 132 x 50mm / 19" x 5.2" x 2", 3RU
114 x 87mm / 4.5" x 3.4"
50 ~ 104°F or 10 ~ 40°C
-13 ~ 140°F or -25 ~ 60°C
Cable w/ 2 female BNC and
one 2.1mm DC inputs
BNC video IN/OUT jacks x 3
S-Video IN/OUT jacks x 3
15-pin DB for talley system
2.1mm DC IN jack
Net: 400g / 14 oz.
Gross: 0.88 kg. / 1.95 lbs.
Net: 700g / 24.6 oz.
Gross: 0.9 kg. / 2 lbs.
Net: 2.5 kg./ 5.2 lbs.
Gross: 2.7 kg. / 5.85 lbs.
LCD-560
LCD-560L
LCD-560LX
LCD-560X3
The Biggest Thing
in Small LCD Monitors
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
• LED backlight provides longer life, uses less
power and provides better color saturation
NEW

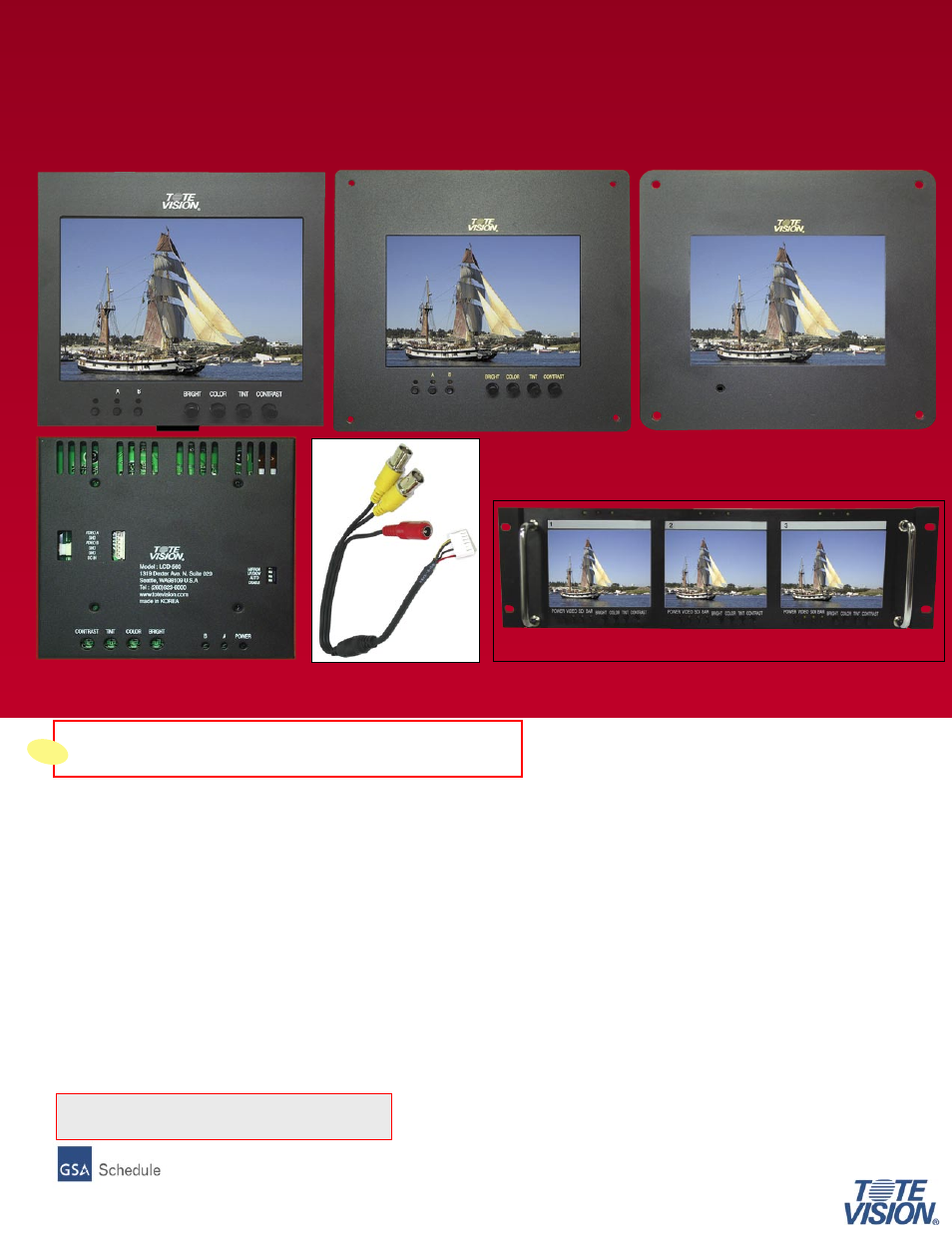

LCD-560 LCD-560L LCD-560LX
LCD- 560 Back View Video Cable
VIDEO 1
VIDEO 2
POWER
LCD-560X3 Triple Rack Mount Unit
LCD- 560L /LX
Installer’s Cut-out (WH): 140 x 134mm / 5.5" x 5.25"
Flush Mount Kits
Active Matrix 5.6" Color LCD Monitors
Specifications subject to change without notice 20K ~ 30K ©2008 ToteVision
