Display:
Back Light:
Input Signal:
Resolution:
Dot Pitch:
Brightness rating:
Colors:
Contrast Ratio:
Number of Pixels:
Viewing angle L/R/T/B:
Pixel Configuration:
Input Signal Level:
Speakers:
Dimensions w/o desk stand(WHD):
Dimensions w/ desk stand (WHD):
Actual visible screen size (WH):
Operating temperature:
Power Requirement:
Power Consumption:
Includes switching power supply:
Rear Terminal Connections:
Net Weight:
Gross Weight:
14.1" TFT LCD active matrix
Built-in (CCFT)
Composite NTSC/PAL (auto sensing),
ATSC/NTSC/QAM/CATV
VGA 640 (H) x 480 (V)dots
0.4425 (H) x 0.4425(V)mm
450 cd/m² (Nit)
16.7M
400 : 1
307,200 dots
85/85/85/85degrees
RGB Vertical Stripe
1.0V P-P (positive) 75 Ohm
4 ohms, 1 W x 2
352 x 307 x 73 mm / 13.9" x 12.1" x 2.9"
352 x 307 x 93 mm / 13.9" x 12.1" x 3.7"
283 x 212mm / 11.1" x 8.3"
50~104°F or 10~40°C
Regulated 12VDC, 5A, negative ground
60 W (max)
100 ~ 240VAC, 1A/47 ~63Hz
RCA video IN/OUT jacks,
RCA R/L audio IN/OUT jacks,
headphone jack x 2
“F” connector for CATV,
2.1mm DC IN jack
6 kg. / 13.2 lbs.
6.4 kg. / 14 lbs.
LCD-1411T
LCD-1411TC
LCD-1411TL
LCD-1411TR
LCD-1411TW
The Biggest Thing
in LCD TV Monitors
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: [email protected]
http://www.totevision.com
• Cable ready ATSC/NTSC/QAM TV tuner
• Wireless remote control
• Dual front speakers for easy listening
• Top controls for power, menu, channel/volume up/down, mode, mute
• On-screen display for : brightness, contrast, tint,
H/V position, saturation, sharpness
• Slim space saving design
• For color and B&W applications
• Low power consumption
• Case made of durable black ABS plastic
• Active matrix technology allows wide viewing angle
• Built-in removeable desk stand included
• Response time: 15mS (rising), 10mS (falling)
• VESA conversion plate makes this unit 75mm compliant
• Wireless stereo FM tranmitter
Active Matrix 14.1" Color LCD TV Monitor
Perfect for
behind-the-mirror
applications.

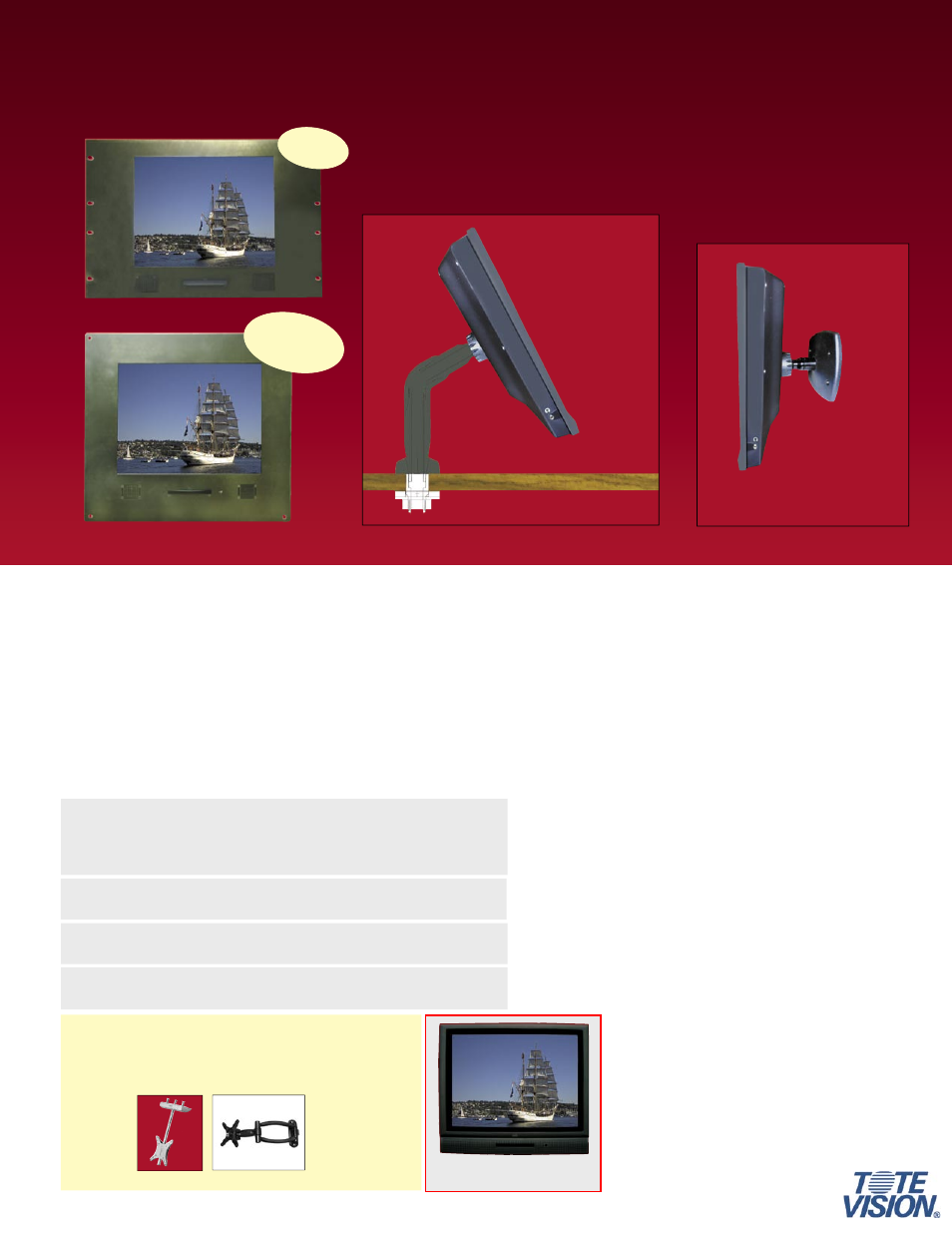

LCD-1411TL Unit in Flush Mount Kit (Shown Above)
Dimensions (WHD): 406 x 368 x 73.6mm / 16" x 14.5" x 2.9"
Installer’s Cut-out (WH): 368 x 330mm / 14.5" x 13"
Black metal front with plastic back
LCD-1411TR Unit in Rack Mount Kit (Shown above)
Dimensions (WHD): 19" x 12.25" x 2.9"(Occupies 7 RU)
Occupies
7 RU
LCD-1411TR
LCD-1411TL
HM-400 Under-cabinet hinge mount (shown below)
WM-30 Wall mount bracket (fixed)
WM-302 Wall mount with swing arm & 4-way (shown below)
Optional Accessories
HM-400 WM-302
LCD-1411TW Unit with Custom 4-way Wall Mount
and all cables hidden (bulk special order only)
P.15
Specifications subject to change without notice 10K ©2008 ToteVision
Includes 4-way adjustable wall
mount and concealed cables.
LCD-1411TW
LCD-1411TC Unit with Custom 4-way Counter Mount
and all cables hidden (bulk special order only)
LCD-1411T
LCD -1411TC
Counter mount application
all cables concealed
3/4" ~ 1.5" counter
