Using the Menus
1740A/1750A Series Waveform/Vector Monitor User Manual
3-19
VERTPOS
HORIZPOS
CLEAR
MENU
Bezel
Buttons
Left
Center
Right
INPUT
VECTOR
FORMAT
STANDARD
OFFSET
CALIBRATE
REMOTE
REFERENCE
COUPLING
AC
DC
DCRESTORER
SLOW
FAST
CLAMP
ST
BP
A123
COMPOSITE
COMPONENT
B123
COMPOSITE
COMPONENT

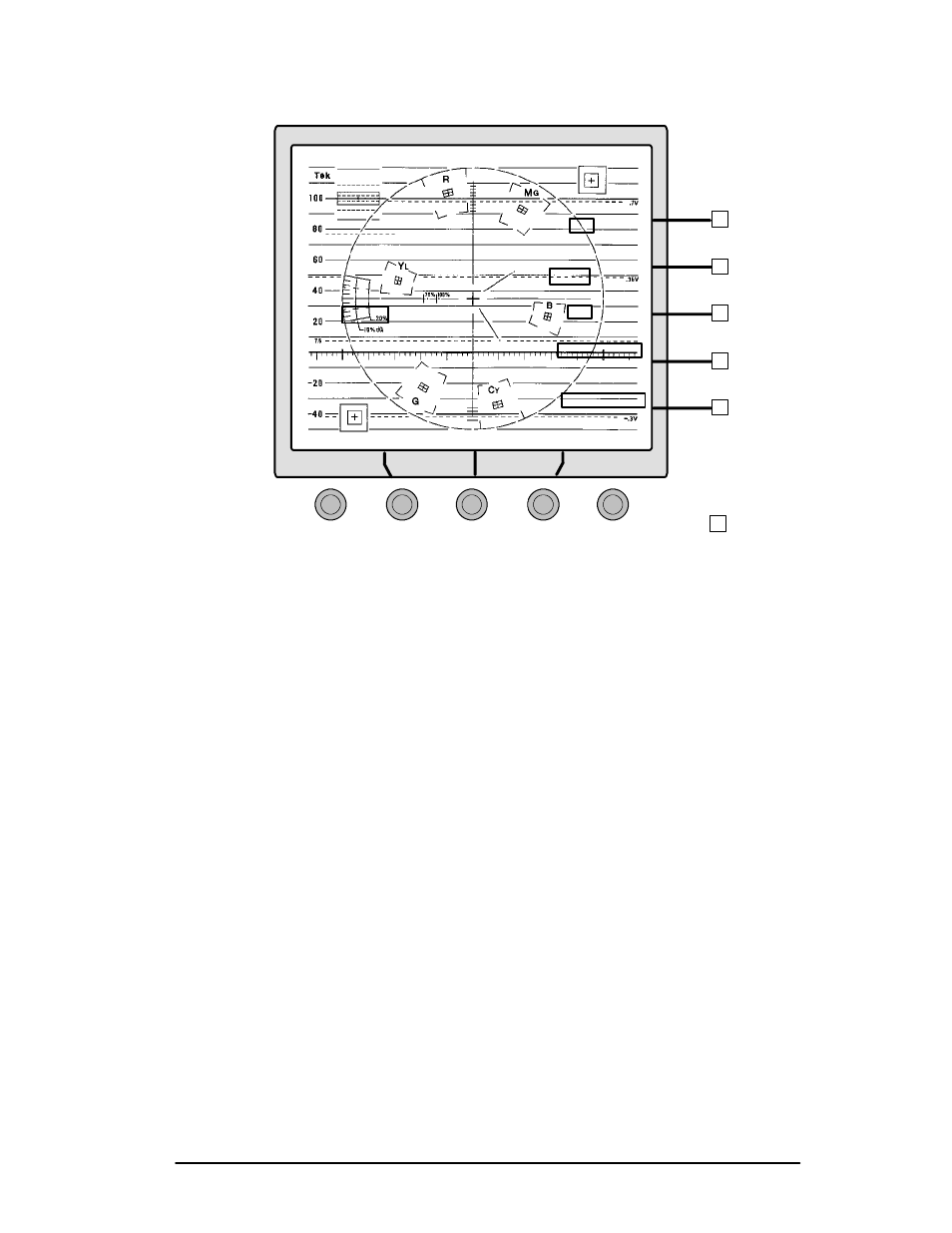

Figure 3-6.
The
CONFIGURE
menu display with INPUT selected.
FORMAT
H
CONFIG—FORMAT
is used to to select the configura-
tion of signals used for interconnection of equip-
ment. Available signal formats are:
GBR
,
SMPTE/EBU
,
BETA
, and
MII
. When viewed as a
waveform parade display, GBR signals can be
displayed in either GBR sequence or RGB sequence,
as selected through the GBR PARADE GBR/RGB
menu. Table 3-1 shows valid format selections.
H
CONFIG—FORMAT
is also used to select
LIGHTNING
or
DIAMOND.
The present selection will be dis-
played when the front-panel
LIGHTNING
button is
pressed.
