10.2 Corrective Action Dialogs
Troubleshooting

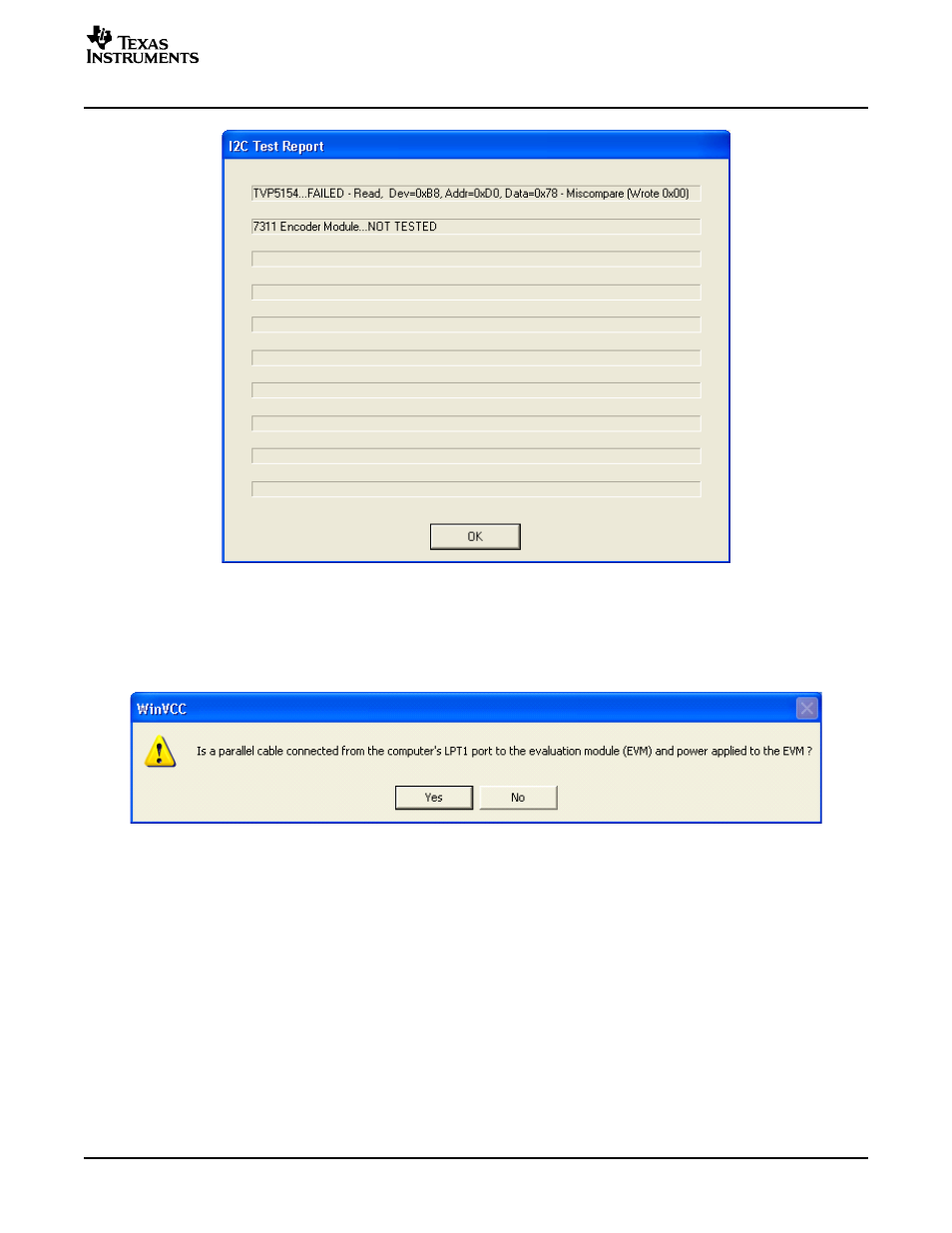

Figure 22. I 2 C System Failure Dialog Box
After closing the I 2 C system test report dialog box, a dialog box (see Figure 23 ) appears.
Figure 23. Corrective Action Dialog Box
1. If the parallel port cable is NOT connected between to PC and the TVP5154EVM, or if the EVM power
is not on:
a. Click NO.
b. The dialog box shown in
Figure 23 appears instructing you to correct the problem.
c. Correct the problem.
d. Click OK to continue. The Real-Time Polling dialog appears.
