Text mode
Original mode

www.ti.com

8.5.2.4

Memory Map Editor

WinVCC in Depth

The DM642 I

C registers can be edited using I

C sub-address 0x40. See

Section 9

for details about the

DM642 registers.

The video encoder module registers can be edited using I

C sub-address 0x54 (default) or 0x56 if the

alternate slave address is being used.

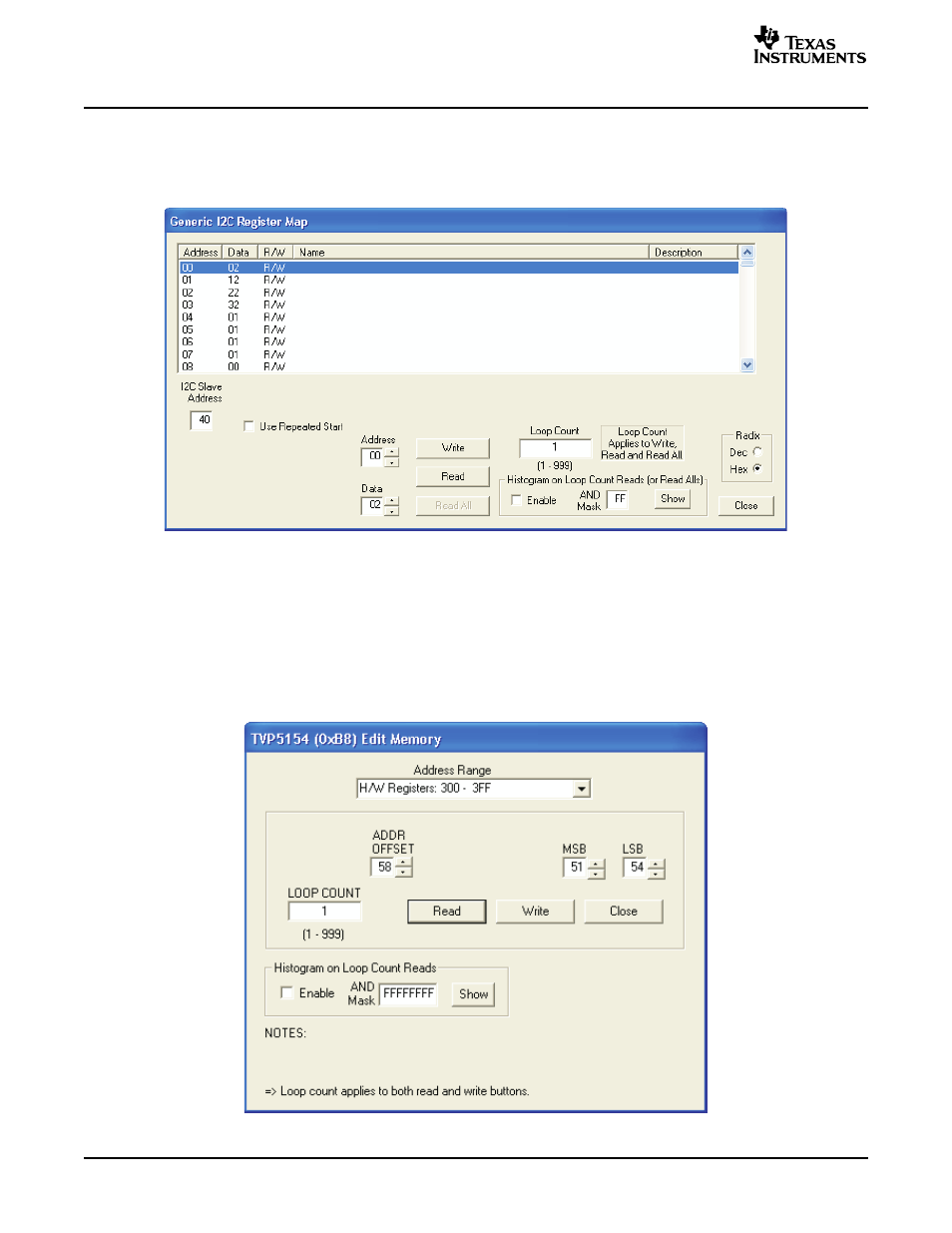

Figure 18. Generic I

C Register Map Editor

The memory map editor (see

Figure 19

) allows the display and editing of the data memory and hardware

registers of the device, such as the scaler setting registers.

To open this, click on Memory Map in the Edit menu and click on the device type to edit. The operation of
the memory map editor controls are explained in

Table 5

Figure 19. Memory Map Editor
