8.5.2 Register Editing
8.5.2.1 Register Map Editor
WinVCC in Depth
If the literal slave address method is used, the slave address entered is used directly. This method is
normally used for programming the video encoder.
The slave address 0x40h is used to access the DM642.
•
A delay may be inserted between commands using the WAIT command, which is written as:
WAIT,<# milliseconds>
The next section describes the five available modes of register editing: TVP5154 Register Map editor,
7311 Encoder Module Register Map editor, Generic I
2 C Register Map editor, TVP5154 memory map
editor, and TVP5154 Property Sheets. Each of these functions can be selected from the Edit menu.
The TVP5154 Register Map editor (see Figure 16 ) allows the display and editing of the entire used
register space of the device within a simple scrolling text box. To open this, click on Edit Register Map in
the Edit menu and click on the device type to edit.
Table 4 describes how to use each of the controls in
the TVP5154 Register Map editor.

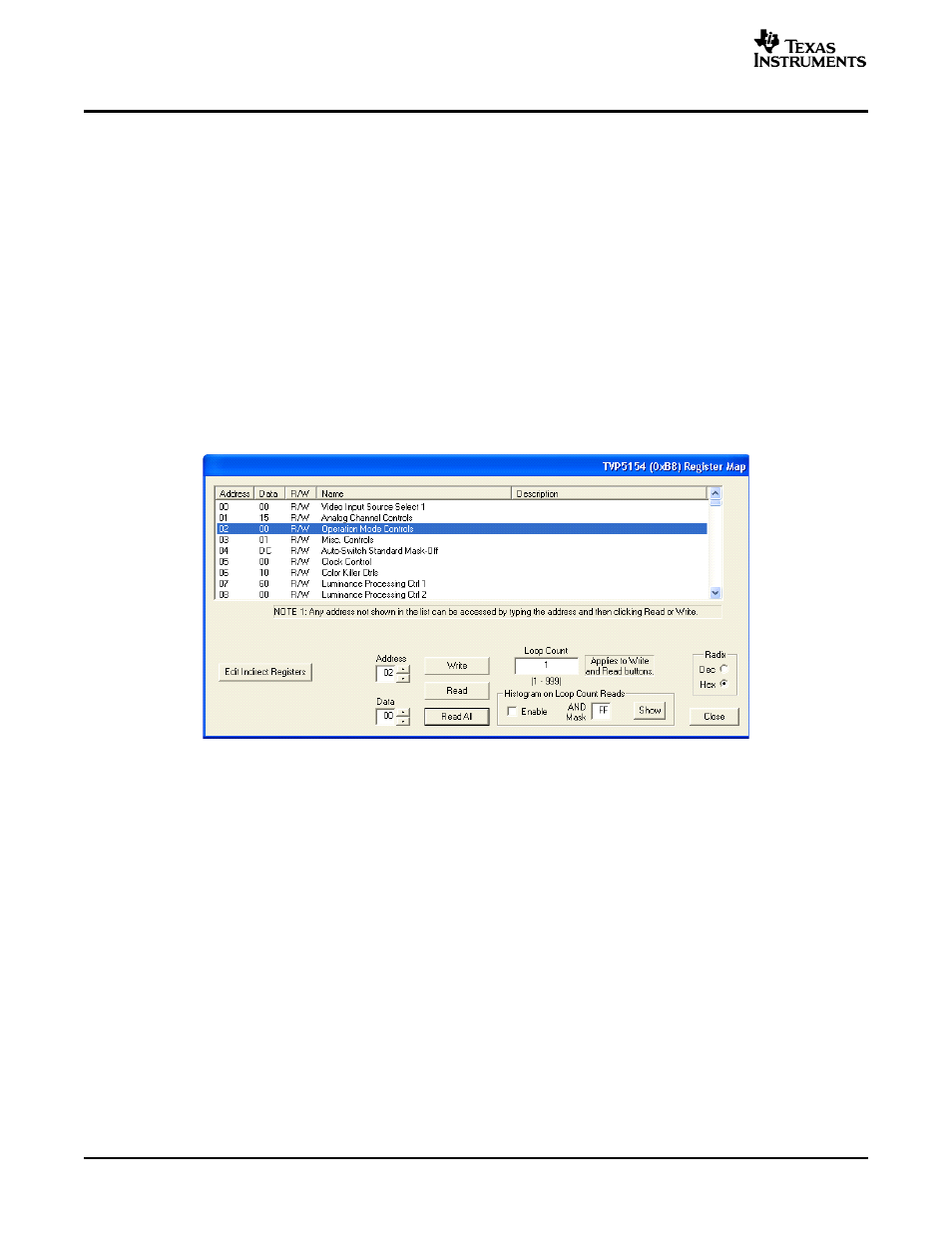

Figure 16. TVP5154 Register Map Editor
