SDLT 600 Product Manual Chapter 4: Installing Your Tape Drive
81-81184-02 REV A01 March 2004 4-21
4.6.1 Configuring the Tape Drive
Figure 4-9 on page 4-21 shows the location of the controls and connectors for the tabletop tape drive.
This model of tape drive is normally configured to meet customer specifications before leaving the
factory, so should not require any internal configuration changes on site.

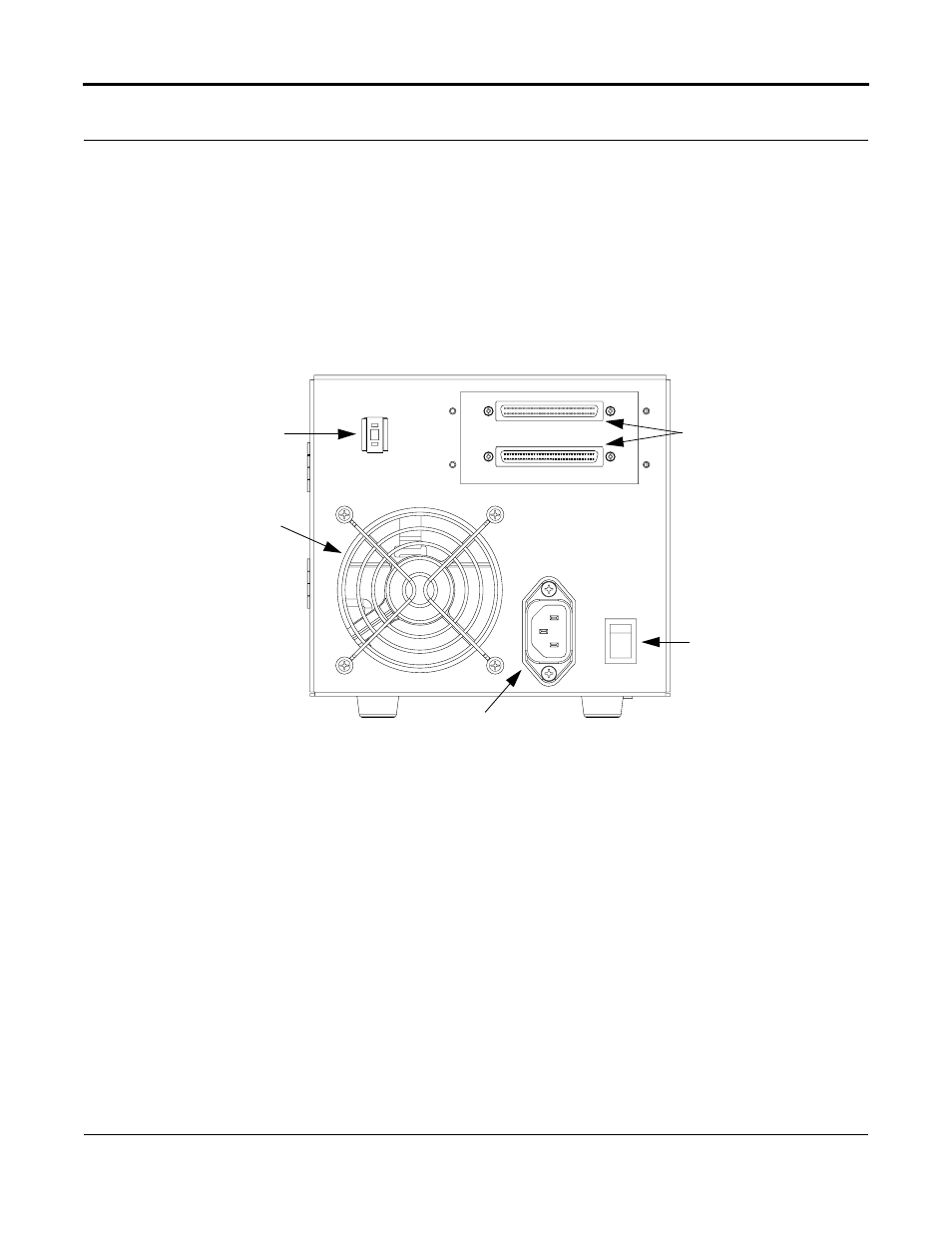

Figure 4-9. Back Panel of the Tabletop Model
SCSI ID
The SCSI ID default for the tabletop tape drive is set to 3; you can configure the tape drive for SCSI ID
addresses that range from 0 to 15 using the SCSI ID pushbutton. Press the button above or below the
ID number display to set the desired SCSI ID. The top button increases the ID number, the bottom
button decreases the ID number.
Figure 4-10 on page 4-22 shows a close-up view of the SCSI ID
switch and its location on the rear of the tabletop model of the SDLT 600 tape drive.
Power
Connector
Power
Switch
SCSI
Connectors
SCSI ID
Selector
Fan
