SDLT 600 Product Manual Chapter 3: SDLT 600 Tape Drive Specifications
81-81184-02 REV A01 March 2004 3-17

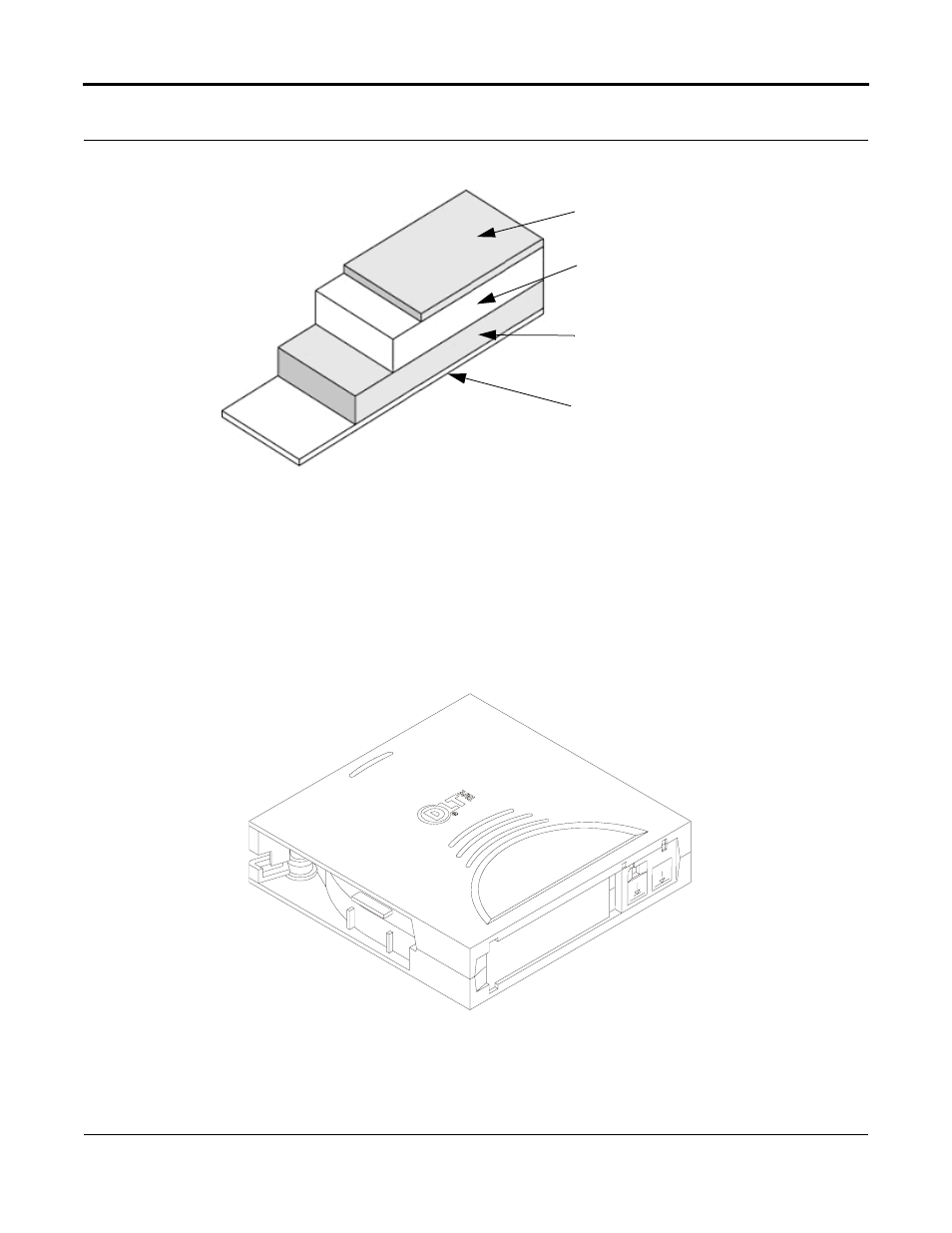

Figure 3-1. Multiple Layers Comprise Super DLTtape II Media
3.4.2 Physical Data Cartridge
A durable plastic case encloses the Super DLTtape II media, as shown in Figure 3-2 .
Figure 3-2. Super DLTtape II Data Cartridge
Layers not drawn to scale
High Coercivity
Magnetic Layer
Under Layer
Enhanced Base
Film Layer
Back Coat Layer
with Servo Guides
