SDLT 600 Product Manual Chapter 4: Installing Your Tape Drive
81-81184-02 REV A01 March 2004 4-9
4.4.2 Configuring the Internal Tape Drive for TERMPWR
You must terminate a SCSI bus at each end of the bus. Terminate all signals not defined as
RESERVED, GROUND, or TERMPWR exactly once at each end of the bus. At least one device must
supply terminator power (TERMPWR).
To enable TERMPWR, install the jumper across Pins 1 and 2 (see Figure 4-3 ) on the TERMPWR
jumper block. Remove the jumper to disable TERMPWR. Pins 3 and 4 on this block are reserved and
require no jumper.

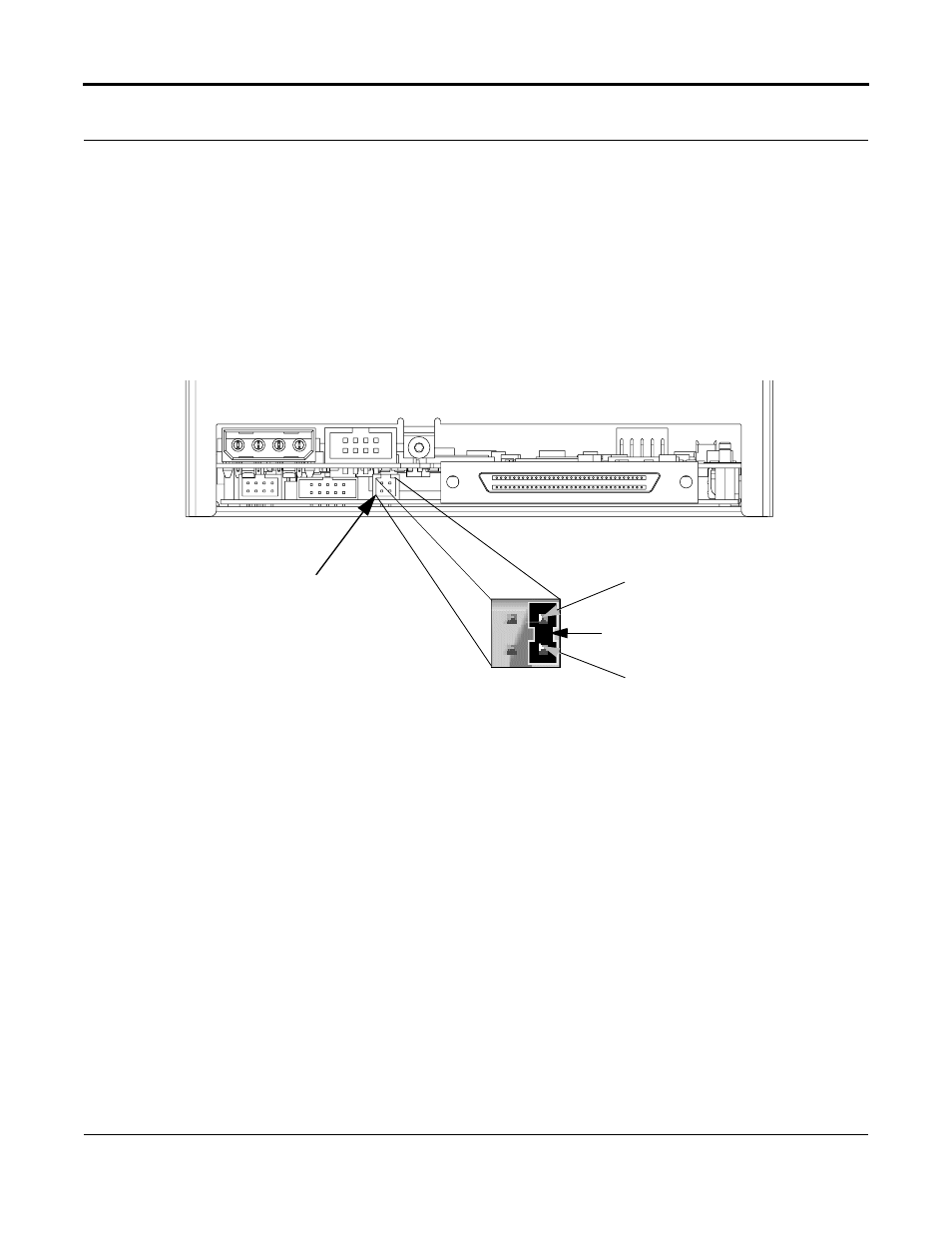

Figure 4-3. TERMPWR Jumper Block on Rear of Tape Drive
4.4.3 Installing the Internal Tape Drive
“Securing the Internal Tape Drive” on page 4-10 describes installing the tape drive by securing the
tape drive in its bay or chassis and connecting the SCSI bus (or Fibre Channel) and power cables.
When you have finished mounting and installing the tape drive, proceed directly to
“Confirming the
Installation” on page 4-25 to confirm the installation.
TERMPWR Block
Pin 1
(Install jumper on Pins 1-2
to enable TERMPWR)
Pin 2
(4 pin)
