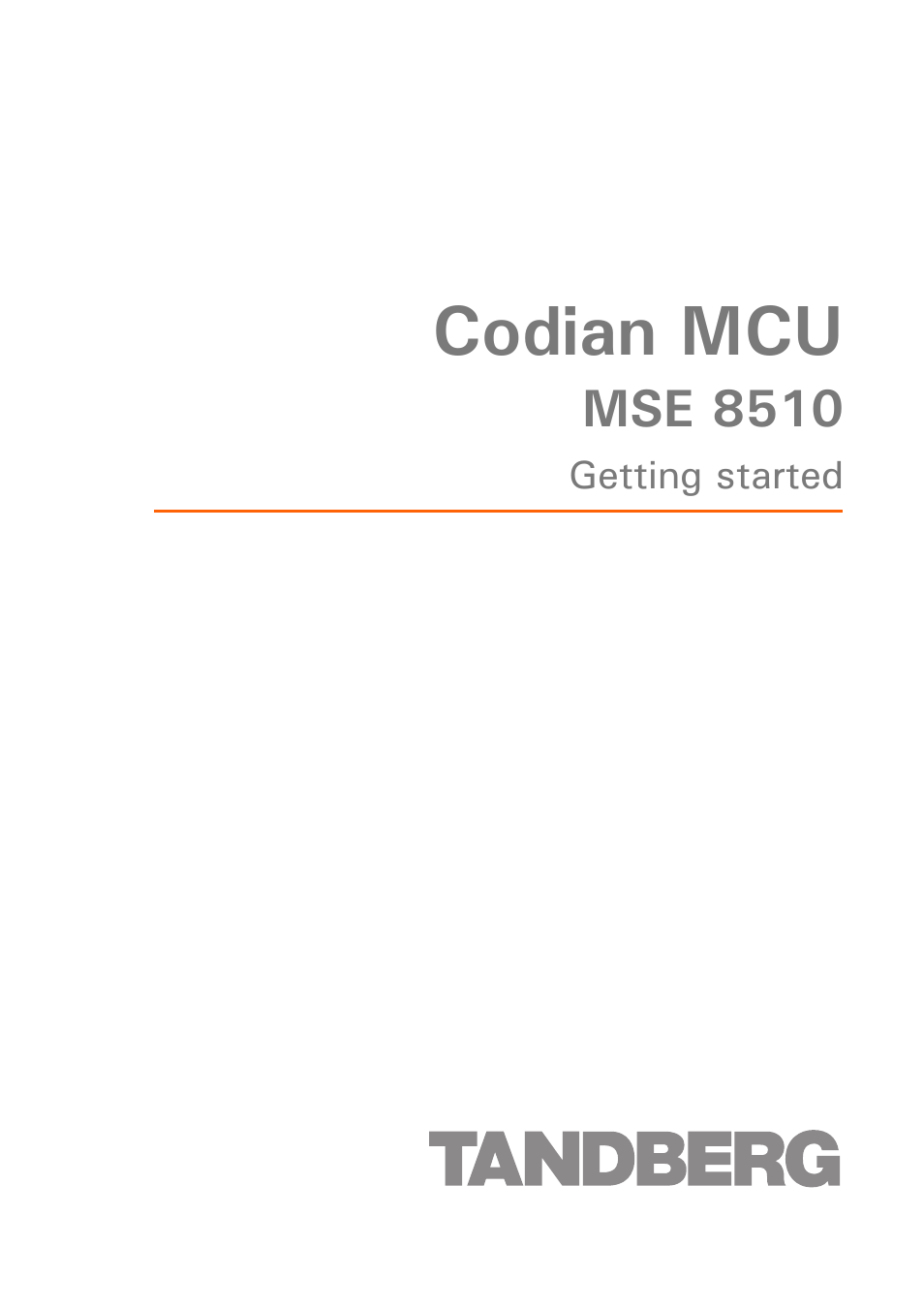

TANDBERG Media2 Blade MSE 8510 User Manual
Codian mcu
Table of contents
Document Outline
- Table of contents
- General information
- Installing the Media2 blade
- Step one: Install the Media2 blade into the MSE 8000 chassis
- 1 Remove the blade or blanking blade from the slot into which you are going to install the Media2 blade:
- i Using a No.1 Phillips screwdriver, loosen the screws in the retaining latches with an anti-clockwise quarter turn.
- ii Open both retaining latches on the front of the blade or blanking blade. When open, a retaining latch is at a 90˚ angle perpendicular to the front of the blade.
- iii Slide out the blade or blanking blade.
- 2 Open both retaining latches on the front of the Media2 blade. When open, a retaining latch is at a 90˚ angle perpendicular to the front of the blade.
- 3 Slide the Media2 blade into the blade slot (as shown in Figure 2) until it stops.
- 4 Simultaneously close both retaining latches on the blade (thereby engaging the connectors at the rear of the blade) to secure in the chassis as shown in Figure 3.
- 5 Using a No.1 Phillips screwdriver, tighten the screws in the retaining latches with a clockwise quarter turn.
- 1 Remove the blade or blanking blade from the slot into which you are going to install the Media2 blade:
- Step two: Connect to Ethernet Port A
- Step one: Install the Media2 blade into the MSE 8000 chassis
- Initial configuration
- Configuring the Media2 blade
- Using the Media2 blade
- Creating conferences
- 1 In the web interface of the Media2 blade, go to Conferences and click Add new conference.
- 2 Type a Name for the conference, for example SalesMeeting.
- 3 Type an optional numeric identifier, for example 123. This will be the telephone number that participants can use to join the conference when calling in to the Media2 blade via a gatekeeper or SIP registrar.
- 4 If you are using a gatekeeper, check H.323 gatekeeper; if you are using a SIP registrar, check SIP registrar.
- 5 Ensure the Maximum duration of the conference is sufficient (the default is one hour).
- 6 All other values can be left at their default settings. Refer to the online help for further information about the available settings.
- 7 Scroll down and click Add conference.
- 1 In the web interface of the Media2 blade, go to Conferences and click Add new conference.
- Calling participants in to a conference
- 1 In the web interface of the Media2 blade, go to Conferences and click on the name of an active conference.
- 2 On the Participants tab, click Add participant to call out to an H.323 or SIP endpoint.
- 3 In the Address field:
- 4 Leave the other fields as their default values and click Call endpoint. The Media2 blade automatically connects to the endpoint.
- 5 If the endpoint is not configured to automatically answer calls, accept the call on the endpoint.
- 1 In the web interface of the Media2 blade, go to Conferences and click on the name of an active conference.
- Calling in to a conference
- Streaming conferences
- Creating conferences
- Instructing conference participants
- Checking for updates
- 1 Log in to the Media2 blade web interface and go to Status > General.
- 1 Unzip the software release file that you downloaded.
- 2 In the Media2 blade web interface, go to Settings > Upgrade.
- 3 In the Main software image section, click Browse and locate the unzipped file.
- 4 Click Upload software image. The browser begins uploading the file to the Media2 blade, and a new browser window opens to indicate the progress of the upload.
- 5 Go to Settings > Shutdown to shut down and restart the Media2 blade.
- Troubleshooting and technical support information
- Using the event log to help solve a problem
- Getting more help
- 1 Refer to the Technical FAQ section of the web site. We keep the Technical FAQ section up to date with the latest information from our technical support team regarding the resolution of customer issues.
- 2 Contact your reseller. Our resellers have a wealth of experience with our products and this is often a quick way of solving a problem.
- 3 If your query remains unsolved, there is a web form in the support area of the web site that you can complete. Ensure that you provide all the details requested by the form to assist the technical support team in resolving your problem:
- 1 Refer to the Technical FAQ section of the web site. We keep the Technical FAQ section up to date with the latest information from our technical support team regarding the resolution of customer issues.
