Start-up Overview
TurboChef includes an authorized start-up procedure with every oven purchase. This procedure consists of an authorized
local agent ensuring that all steps in this installation manual were completed properly, and that the oven is functioning
to factory specifi cations.
TurboChef will schedule this authorized start-up procedure through the equipment distributor. Please contact Turbo-
Chef with any questions regarding the start-up and scheduling at 800.90
TURBO
(+1 214-379-6000).
The purpose of the start-up is to ensure that the installation is complete and correct. The technician must complete the
Initial Start-up Checklist (located at the back of this manual) using the procedures and
guidelines (pages 10-13) and return it to TurboChef. The oven must meet all specifi cations and pass all tests outlined in
the Start-up Checklist for the oven to enter into the manufacturer’s warranty program.
If the oven fails to pass any of the following tests, all electrical and gas connections MUST be disconnected and the
technician MUST indicate that the oven is out of warranty and non-operational. The oven MUST remain disconnected
and will remain out of warranty until all failing items are corrected and TurboChef is notifi ed that the oven has passed
all tests.
Required Equipment
-5mm nut driver
-8mm nut driver
-Digital manometer (P/N: HHC-3001)
-Gas connection kit
Single oven (P/N: HHC-6580)
Stacked oven (P/N: HHC-6579)
-Leak test materials
-Philips head screw driver
-Smoke tester
-Straight blade screw driver
Maintenance Mode
To successfully complete the following procedures, main-
tenance mode must be activated. Some ovens may already
have this mode activated; if so, leave maintenance mode
activated.
To activate maintenance mode,
1. Ensure the oven is in the oven off or cooling down
mode.
2. Press the up key until you enter the confi g menu.
3. Press the bottom-right soft key to enter test mode
(see below).
4. Input the password 2 4 3 3.
5. Press the down key to acess test page 2 (see below).
6. Press the middle-right soft key to activate
maintenance mode (see below).
NOTE: Once the start-up process is successfully
completed, repeat the above steps to deactivate
maintanence mode.

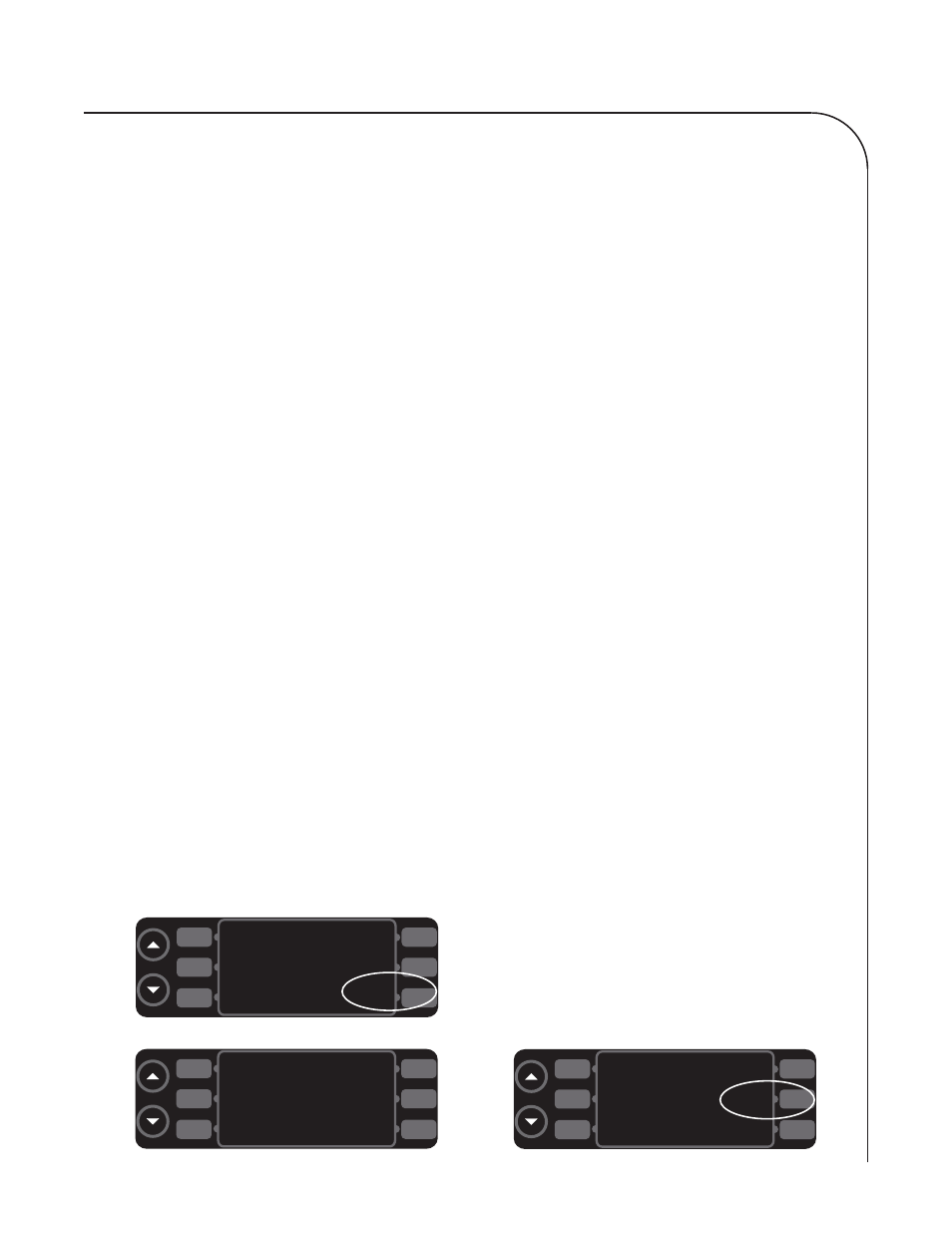

Maintenance Mode, Step 3
Maintenance Mode, Step 5 Maintenance Mode, Step 6
SMARTCARD
FAULTS
CONFIG MENU
SETUP
TEST MODE
BURNER CTRL TOP AIR
TEST PAGE 1
BOT AIR
D EC27 45% 100% 23.9V 0.0V 450F
R 1 2 _ H _ _ _ _ – – – – – _ _ _ O _ _ T B T B – F – – – –
INPUT SN
BURN-IN
ERASE/CLEAR
208V
TEST PAGE 2
CLEAR FAULTS
MAINT ON
