Notes
• When the Recorder is used for the first time, the date and time could not be correctly displayed. Perform the

clock setting before use. (Refer to

p. 100

; Date/time setting.)

• When the Digital Video Recorder is switched to standby mode, it cannot be switched on for about 10

seconds.

• Priority recording and auto-recording cannot be made in standby mode. Be sure to press the Power key

when making recording.

11.2. Recorder's Power Off and Disconnect

Hold down the Power key for 2 seconds or more. All operations stop, placing the Recorder in standby mode.
When moving the Recorder, be sure to place it in standby mode, then remove the power supply plug from the
wall outlet.

11. DIGITAL VIDEO RECORDER ACTIVATION AND TERMINATION

11.1. Recorder's Activation

1. Connect each component correctly. (Refer to

p. 20

; Connections.)

2. Insert the power supply plug.

The Recorder is placed in standby mode. The power
key flashes at about 5-second intervals while in standby
mode.

Note
Do not pull out the power supply plug while the Power
key is light green. Ensure that the Recorder is in the
standby mode when pulling out the power supply plug.
Logged data could be damaged or lost if the power
supply plug is pulled out during initialization (while
accessing the hard disk).

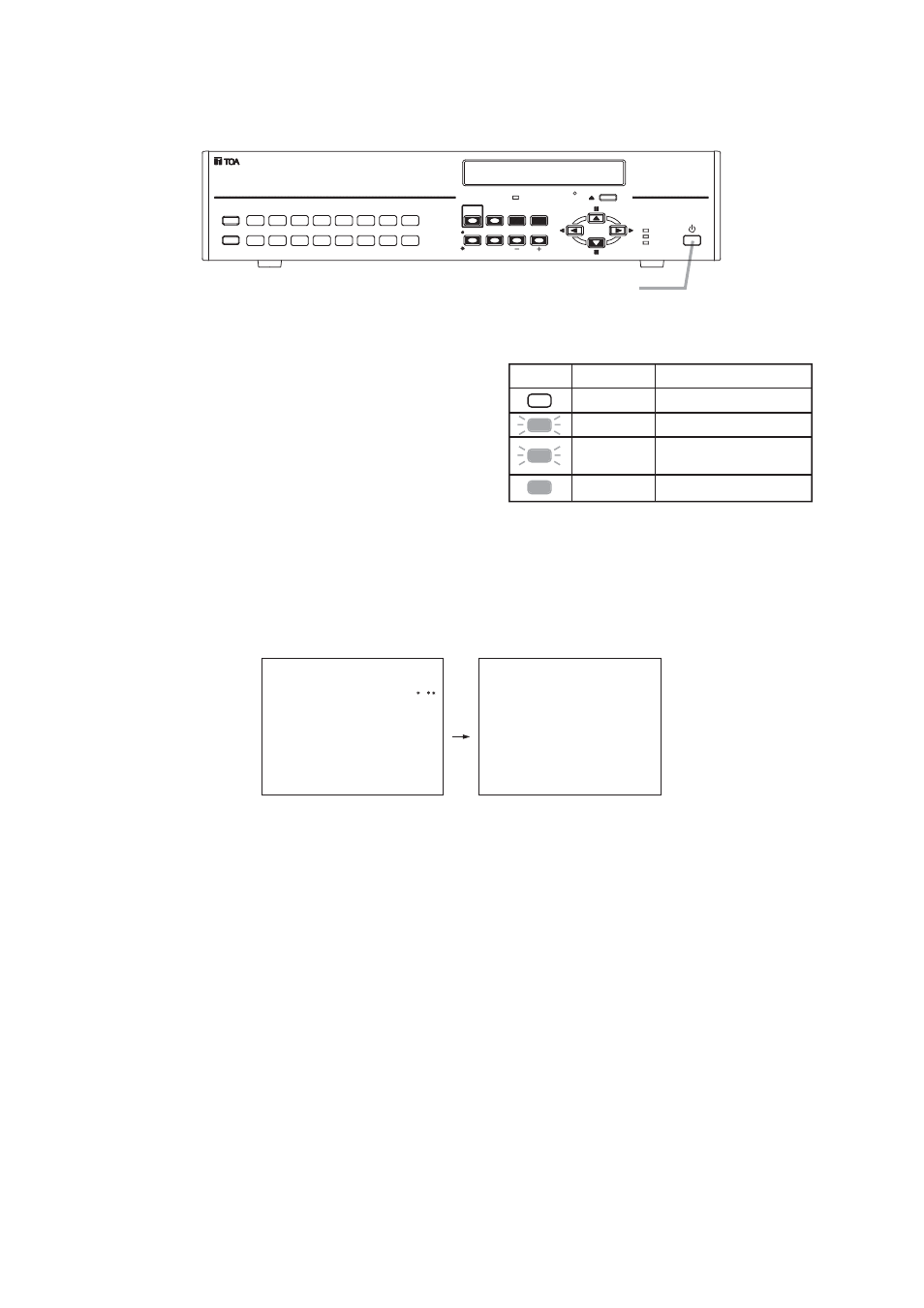

3. Press the Power key while the Recorder is in standby mode.

The screen automatically changes as shown below. The Power key flashes green during a system check.
The Power key changes from flashing to steady ON after system check completion, allowing camera
images to be displayed.

V e r

.

S Y S T E M

C H E C K

I N

P R O G R E S S .

P L E A S E

W A I T .

KEY LOCK

MONITOR 2

DVD

DIGITAL VIDEO RECORDER C-DR161

HD FULL

FAILURE

REC

MONITOR 1

SEQUENCE

SCREEN

MULTI

ZOOM

SEARCH

ALARM RESET

BUZZER STOP/

REC

PRIORITY

16

8

15

7

14

6

13

5

12

4

11

3

10

2

9

1

ARCHIVE

MENU/

ENTER

Power key

Power key LED indicator

Mode

Distinguishes

Main power OFF

Flashes (5sec) Standby mode

Lights

Power ON (during operation)

Flashes (1sec)

During a system check
(during activation)
