Terminal name

Name

PRIORITY IN
PRIORITY G
NC
CAMERA +
CAMERA G
CAMERA -
RM IN-B +
RM IN-B G
RM IN-B -
RM OUT-B +
RM OUT-B G
RM OUT-B -

Priority Recording Input
Priority Recording Ground
Not connected
Camera Control (RS-485) +
Camera Control (RS-485) Ground
Camera Control (RS-485) -
Remote Control Input B + (RS-485)
Remote Control Input B Ground
Remote Control Input B - (RS-485)
Remote Control Output B + (RS-485)
Remote Control Output B Ground
Remote Control Output B - (RS-485)

Terminal name

Name

CONTROL OUT 1
CONTROL OUT G
CONTROL OUT 2
CONTROL OUT G
CONTROL OUT 3
CONTROL OUT G
CONTROL OUT 4
CONTROL OUT G
TIME SYNC IN
TIME SYNC G
TIME SYNC OUT
TIME SYNC G

Control Output 1
Control Output Ground
Control Output 2
Control Output Ground
Control Output 3
Control Output Ground
Control Output 4
Control Output Ground
Date/Time Adjustment Input
Date/Time Adjustment Input Ground
Date/Time Adjustment Output
Date/Time Adjustment Output Ground

A

B

IN

RM OUT-B

OUT

IN

G

G

-

-

-

+

+

+

G

G

G

G

G

G

G

G

4

3

2

1

NC

PRIORITY

RM IN-B

CAMERA

TIME SYNC

CONTROL OUT

A

B

Master

Input Output

Slave 1

Input Output

Slave 2

Input Output

Slave 7

Input Output

10.4. 10BASE-T/100BASE-TX Terminal Connections

Use this terminal to remotely monitor or control cameras connected to the Digital Video Recorder, or search or
play back their recorded images on a PC web browser. When connecting a PC directly to the Digital Video
Recorder, use a network crossover cable. Use the straight-through cable for connection between them via a
switching hub.

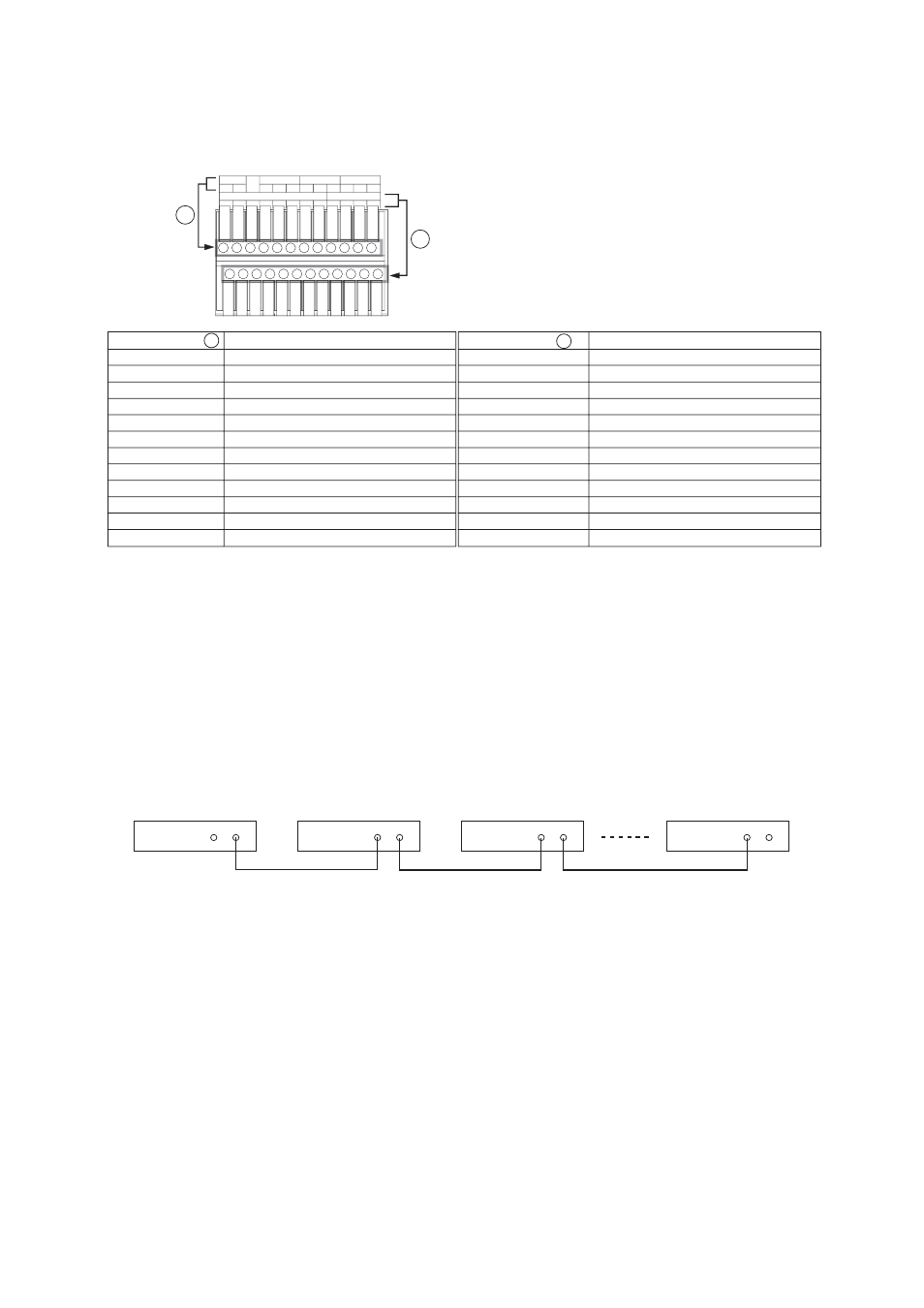

10.3. Control I/O Terminal Connections

The control input and output terminals include: priority recording terminal, camera control terminal, remote
controller input/output terminals, control output terminal, and time synchronization input/output terminals.
(Refer to

p. 14

; Nomenclature and Functions.)

Note
Ensure that the cable is securely locked into the terminal after connection. (Refer to

p. 24

; Alarm input

terminal connections.)

10.3.1. Time synchronization input/output terminal connections

Two different methods are available to synchronize the time, one using both master and slave units, the other
using NTP. (Refer to

p. 100;

Date/time setting.)

Note
When synchronizing a single-channel Digital Video Recorder, set the synchronization interval to “5 seconds.”
(Refer to

p. 100;

Date/time setting.)

To synchronize the times of slave units with the time of the master unit, connect the slave units to the master
unit in a series via their input and output terminals. In other words, connect the input of slave number 1 to the
master unit’s output and the input of slave number 2 to slave number 1’s output, and so on.
