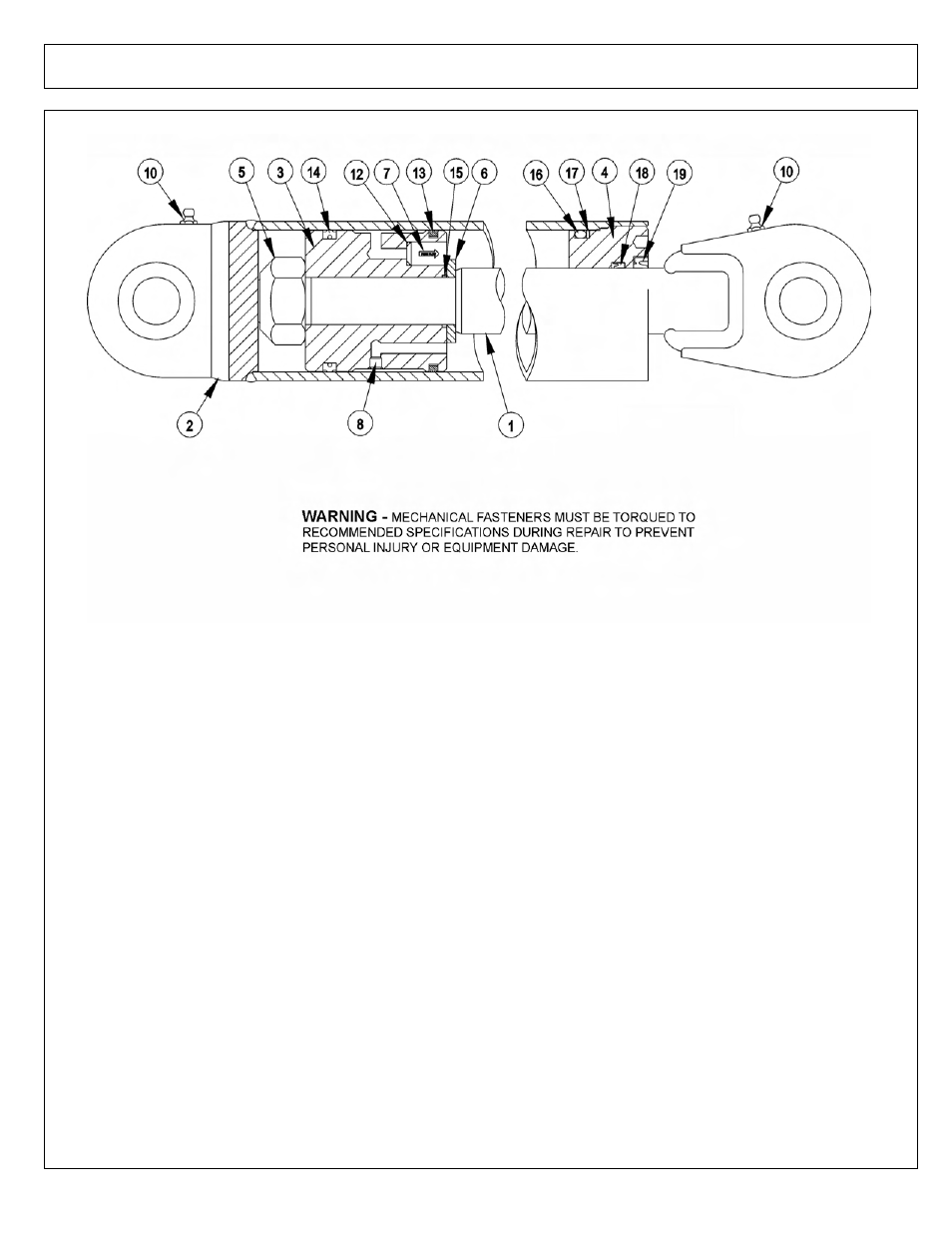

3IN X 17-1/2IN WELDED CYLINDER BREAKDOWN
ITEM
PART NO. QTY.
DESCRIPTION
---
33705
-
CYLINDER,WELDED,3" X 17-1/2"
1
34571
1
PISTON ROD ASSY
2
34572
1
BUTT & TUBE ASSY
3
34573
1
PISTON
4
34574
1
GLAND
5
34575
1
LOCK NUT,1"-14 UNS (TORQUE TO 315 FT.LB.)
6
34576
1
SPACER
7
34577
1
CHECK VALVE,KEPNER
8
34578
1
ORIFICE
9
33761
1
SEAL KIT,PACKING (ITEMS 12 THRU 19)
10
------
2
GREASE ZERK
12
------
1
O - RING
13
------
1
CAST IRON PISTON RING
14
------
1
CROWN SEAL
15
------
1
O - RING
16
------
1
O - RING
17
------
1
BACK - UP WASHER
18
------
1
U - CUP
19
------
1
WIPER
20
34334
-
SPHERICAL BEARING (NOT SHOWN)
