CONNECTING OTHER EQUIPMENT
To connect a video camera
This connection allows you to view pictures from a video camera.

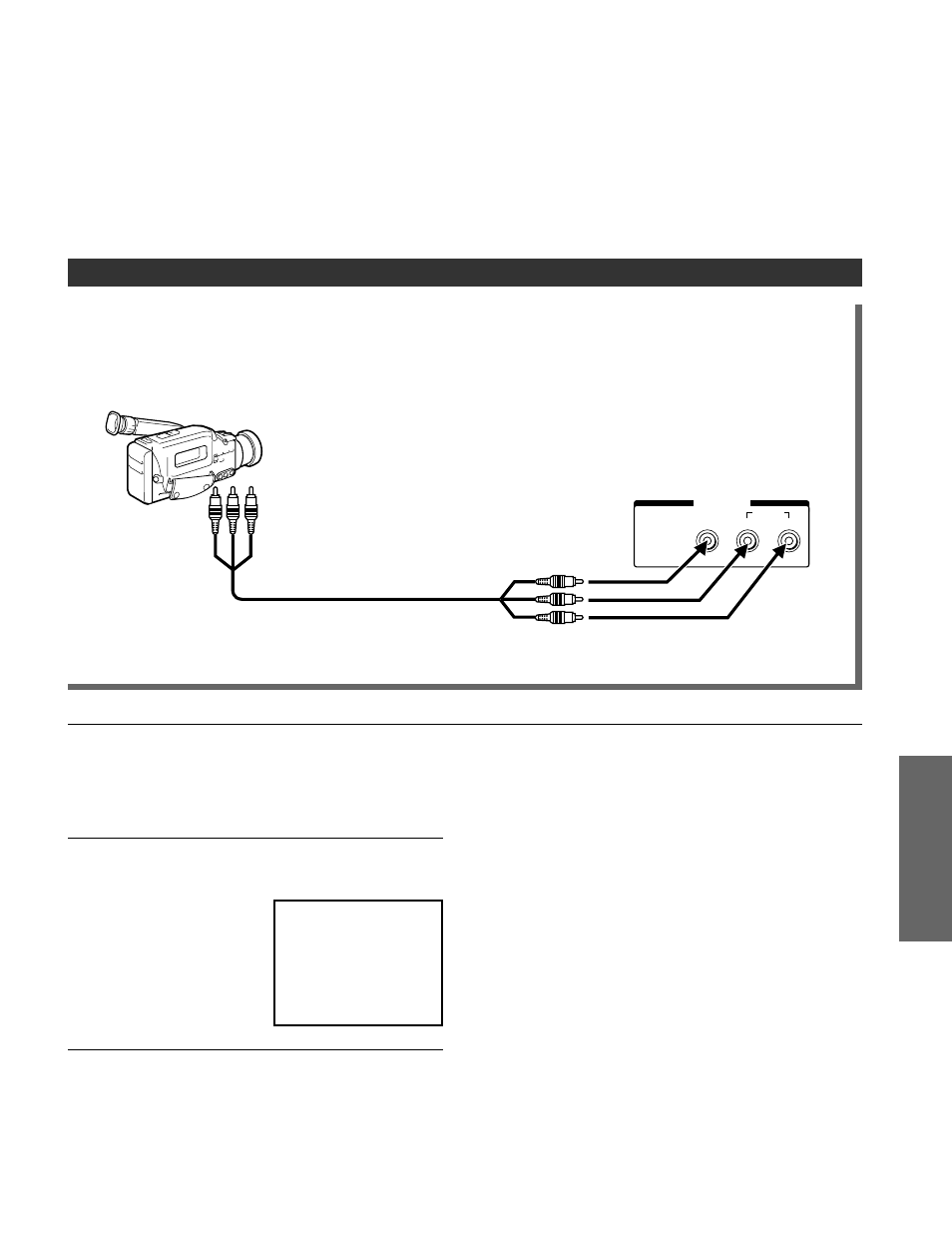

Connect the audio/video cable to the IN-VIDEO 3 jacks.
Video camera
TV front
Usually supplied
with the video camera
Audio/Video cable (not supplied)
Video plug
Audio plugs
L
R
To select the video input source
To operate your video camera properly, see the
instructions supplied with the connected video camera.
Turn on the TV and the video camera.
Press TV/VIDEO on the Remote Control (or ANT/
VIDEO on the TV) to select “VIDEO 3.”
Operate your video camera normally.
2
3
1
Notes:
• If you connect a monaural video camera, connect the
audio output to the L /MONO jack.
• If you have a video camera with an S-video jack, the
VIDEO 1 or VIDEO 2 IN jacks at the rear of the TV can
also be used.
Audio/Video
outputs
( )
TO SELECT PUSH TV / V I DEO
V I DEO 3
COLOR STREAM
V I DEO 2
V I DEO 1
TV
IN–VIDEO 3
VIDEO
AUDIO
L/MONO R
