I. Quick Reference Guide
The MACH-1 and Standard MagnaStar ® Handsets have:
• Backlit LCD Display and telephone style keypad with two additional
keys, “+” and “End Call.”
• Hook Switch is activated by a magnet mounted in the standard holder
(depending on model and installation).
• For use without standard holder, use “+” key for off-hook, and “+”
key at main menu for on-hook.
• Built in credit card reader.
• Built in signal alerter and LED.
• Two button volume control.
• Built in RJ-11 Jack.
1
(Rev. 8/04)
®

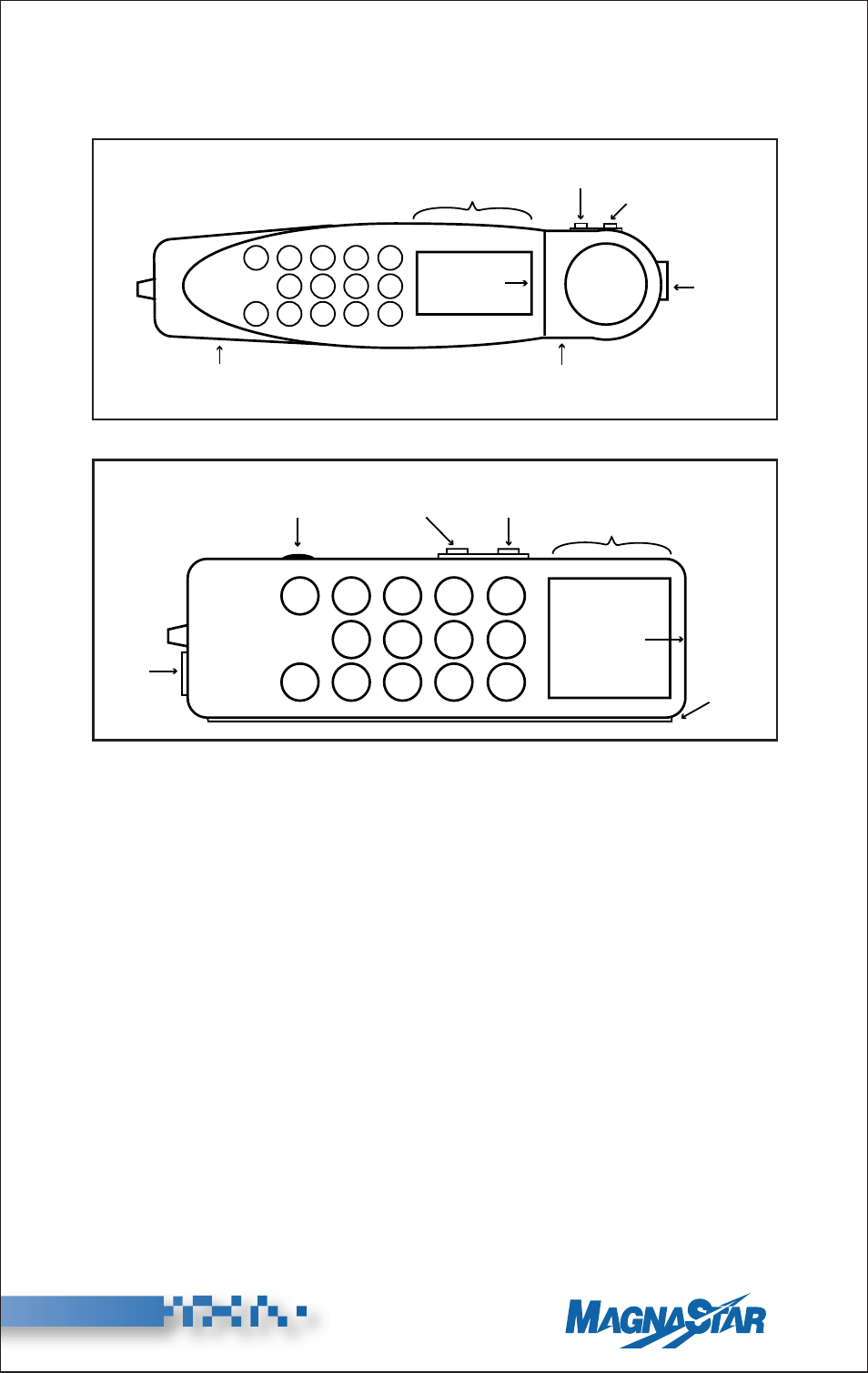

RJ-11
Jack
Volume
Decrease
Volume
Increase
Backlit LCD
Display
Credit Card
Reader (on unit rear)
1
