ES 3037/3037e Accessories • 449

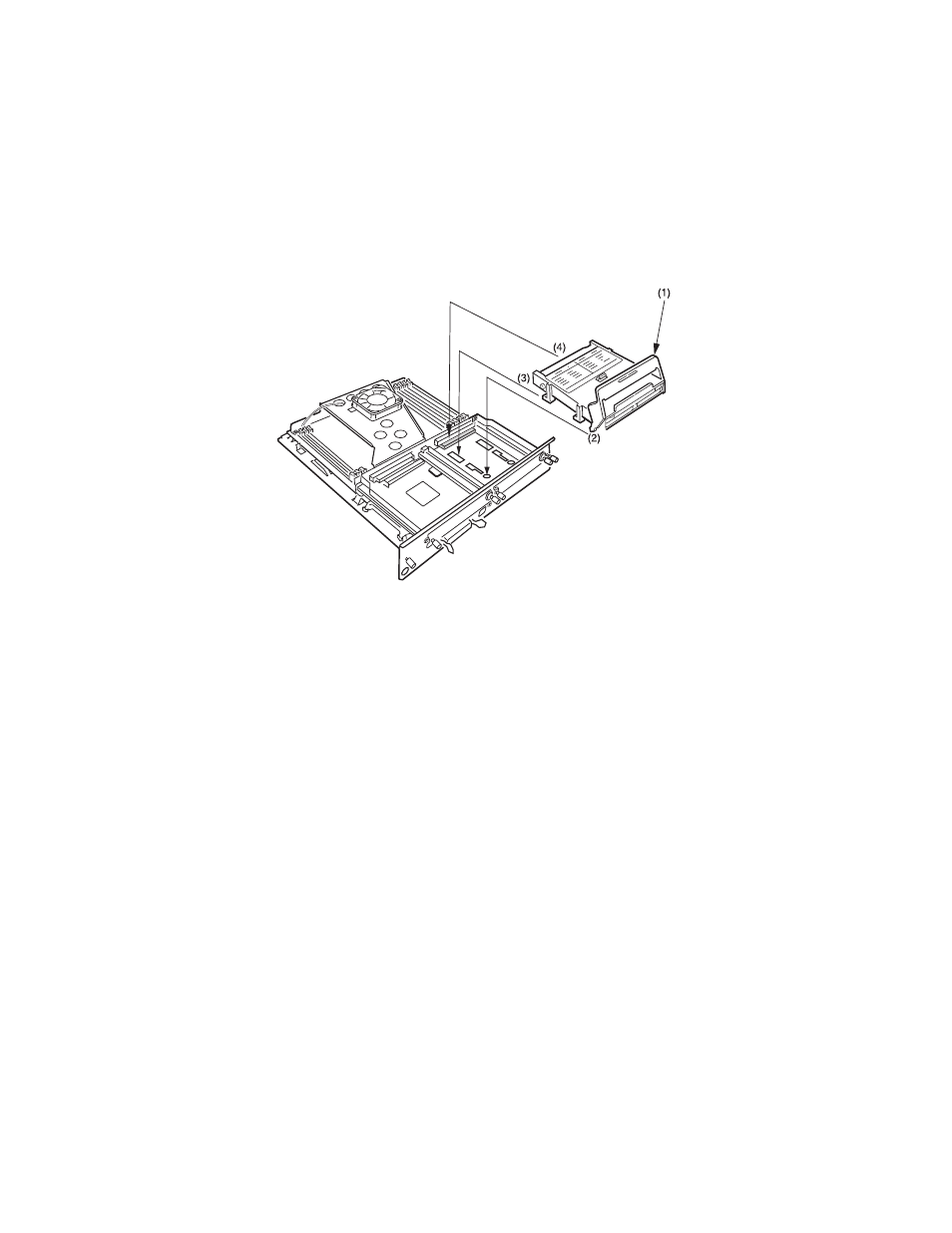

Hold the hard disk drive by the locking handle (1), then insert
the handle locating lugs (2) and four locating feet (3) into the
holes in the main board making sure the hard disk connector (4)
starts to engage with the socket on the control board.

hard disk install.eps

4. Gently push down on the locking handle (1) making sure the

hard disk moves forward and fully engages with the socket.

5. Replace the main board and secure it with the two screws.

6. Connect the printer interface cable and power cable, then switch

on the printer.

7. Print a MenuMap (see “Printing the MenuMap” on page 44) and

check that the HDD appears at the top of the MenuMap. If it
doesn’t, pull the main board back out and reseat the HDD.
