Oki 4M User Manual
Page 49
3 - 13
3.3.8

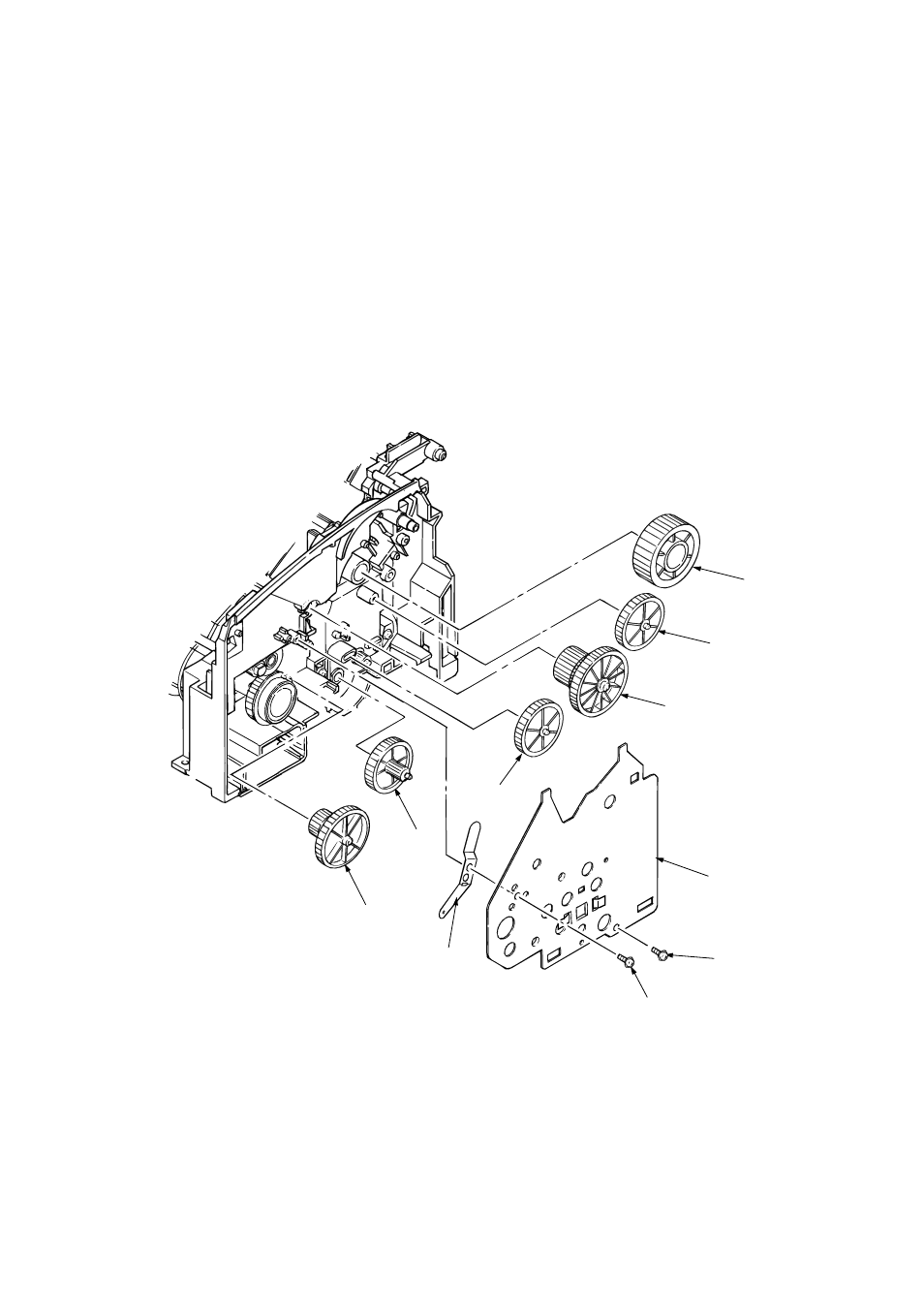

Side Plate M and Idle Gear
Perform parts replacement while making the base frame assy stand so that side plate M will face
upward.
(1) Dismount the upper cover assy. (See Section 3.3.4.)
(2) Remove two screws
1
and two claws, then dismount plate side M
2
.
(3) Dismount earth plate
3
, two idle gears P
4
, idle gear M
5
, idle gear 3R
6
, idle gear 2R
7
,
and idle gear heat
8
.
1
7
5
4
3
2
1
6
4
8
