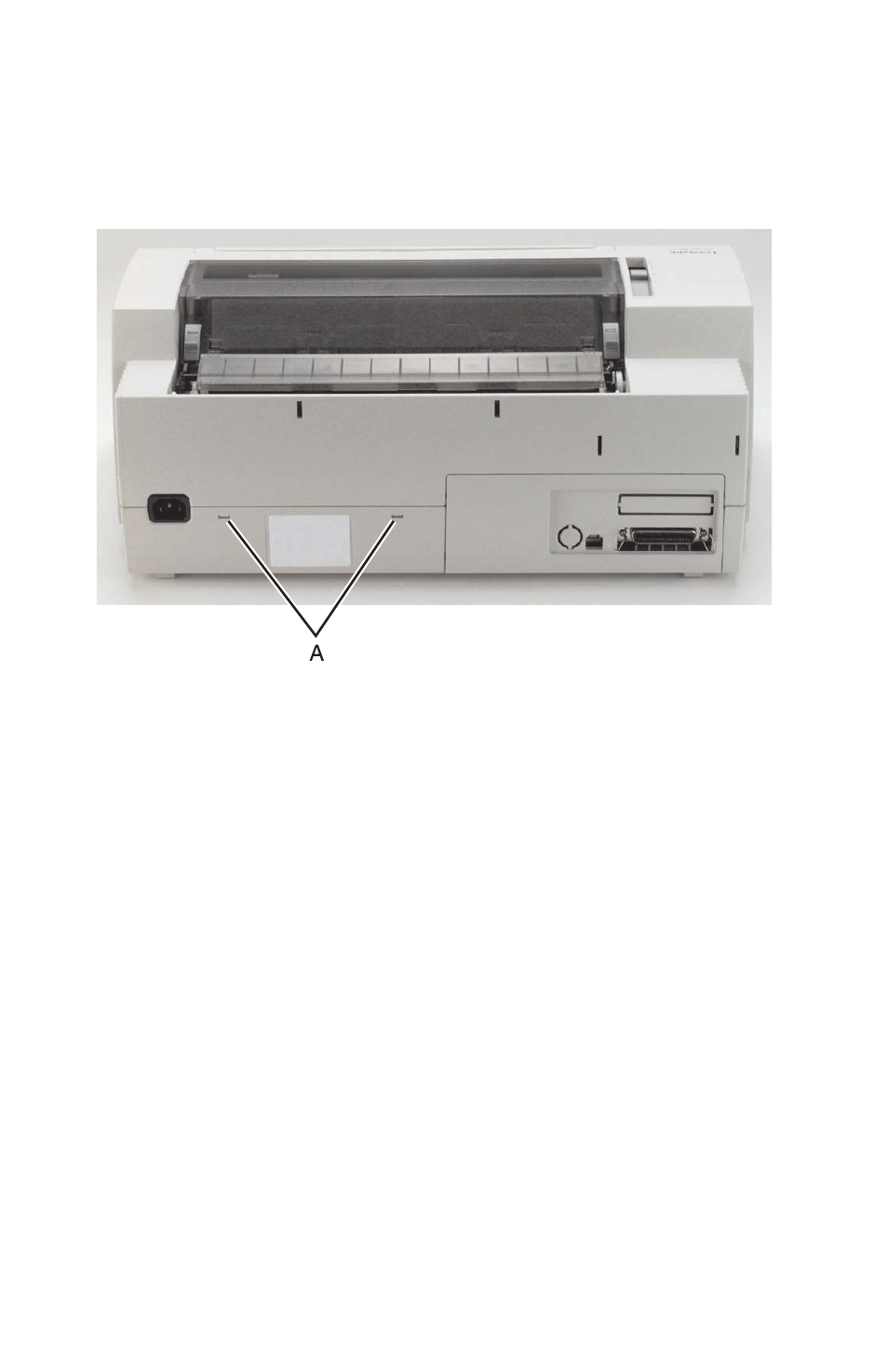

10. Turn the printer right side up and insert a flat blade screwdriver
into each of the two holes [A] in the back of the top cover.
11. Lift the top cover up and over the print unit assembly.
Note: When replacing the top cover, be sure the operator panel
cable is correctly aligned and inserted securely into the logic board.
Damage to the operator panel cable may cause failure of other
electrical components in the printer.
