268
Making the Cable Appendix E

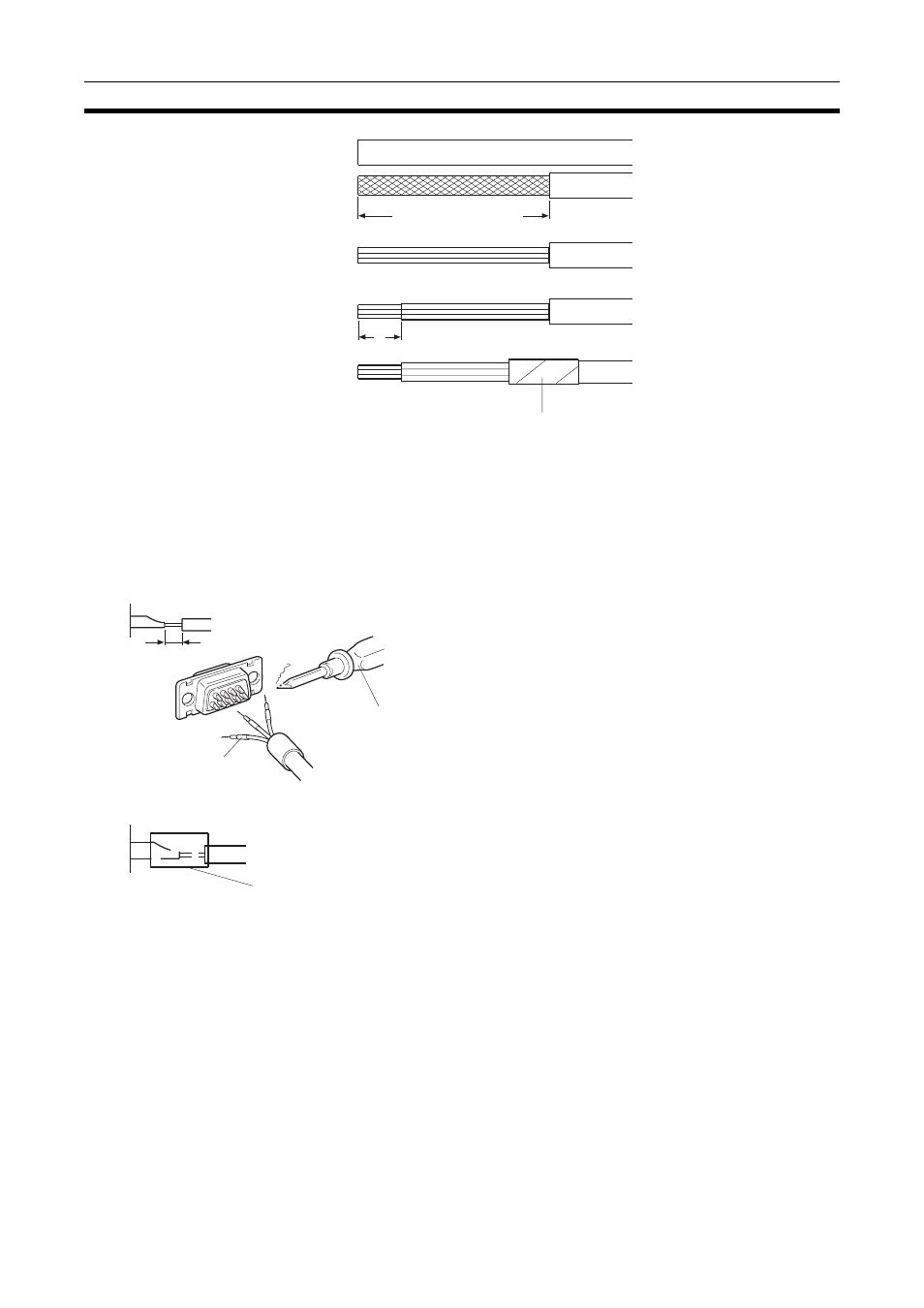

Soldering
1,2,3...
1. Slide heat-shrink tube over each wire.
2. Pre-solder each wire and connector terminal.
3. Solder each wire to each connector terminal.
4. Push the heat shrink tube over the soldered joint and heat the tube to shrink it in place.
40 (1.57) (RS-232C)
5
25 (0.98) (RS-422A)
(1)
(2)
(3)
(4)
(5)
Units: mm (inch)
Vinyl tape
(0.19)
Soldering iron
Heat-shrink tube
(F, 1.5 mm dia.,
l = 10 mm)
1 mm
Heat-shrink tube
