212
System Maintenance
Section 6-11
• If nothing is displayed at Received Data when data is read with the bar
code reader, there is a communications fault: check the communications
cables and settings.
Check Method

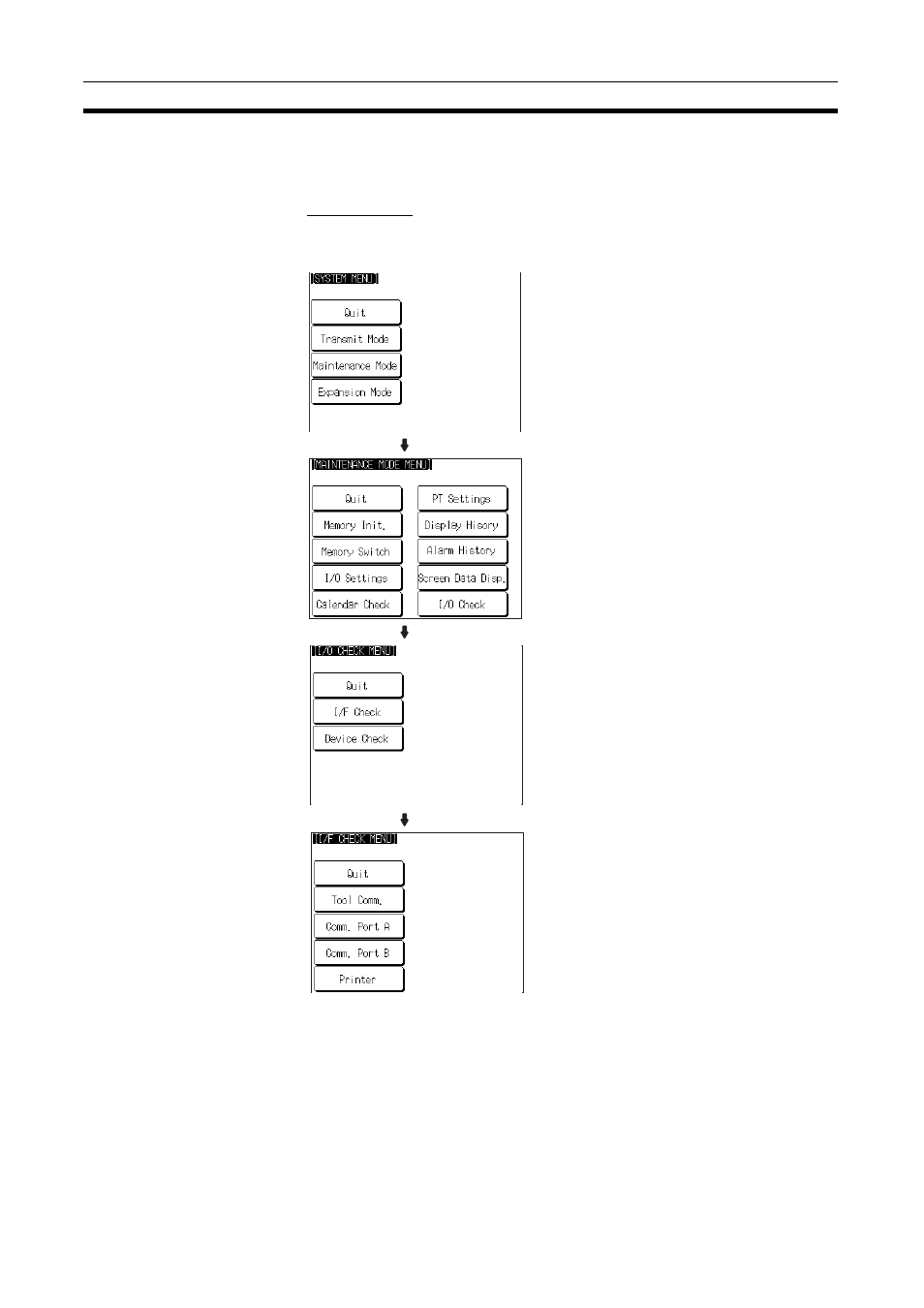

Check communications with the serial ports by following the menu operation
from the System Menu shown below.
After confirming the result of the check, press Quit. The NT631/NT631C
returns to the I/F CHECK MENU screen.
Select Maintenance Mode.
Select I/O Check.
Select I/F Check.
Ver 4.12
Select Comm. Port A or Comm. Port B.
The check screen is displayed (Check
screen, page 210).
