5-9
ZS-MDC
User’s Manual
Section 5
APP
E
NDIX
Section 5
Specifications and External Dimensions

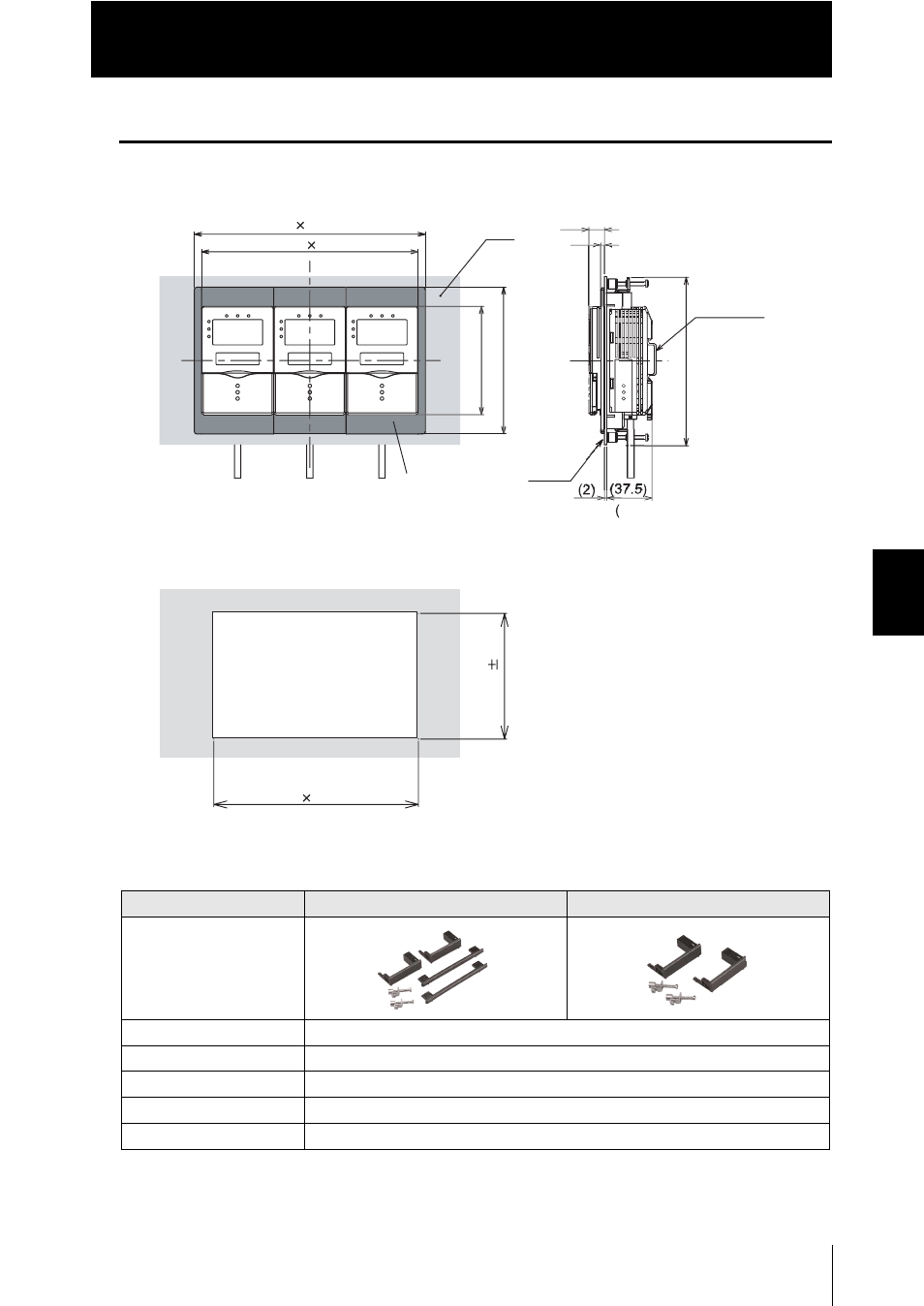

Panel Mount Adapters
ZS-XPM1/XPM2
When mounting on a panel
Item ZS-XPM1 (for 1st unit) ZS-XPM2 (for 2nd unit onwards)
Appearance
Applicable controller ZS Series
Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude, 80 min each in X, Y, and Z directions
Shock resistance 300 m/s 2 3 times each in six directions (up/down, left/right, forward/backward)
Materials Polycarbonate (PC), etc.
Weight Approx. 50g
Note 1)
(60 n)+12
60 n
122 9
0
3
13
(140)
116 1
(60 n)+8
Panel
DIN track
Panel
Panel Mount
Adapter
Note 1: Dimensions are shown for a panel
thickness
of 2.0 mm.
Panel cutout dimensions
n: number of gang-mounted controllers (1 to 10)
(Unit: mm)
Panel cutout dimensions
