Section 4

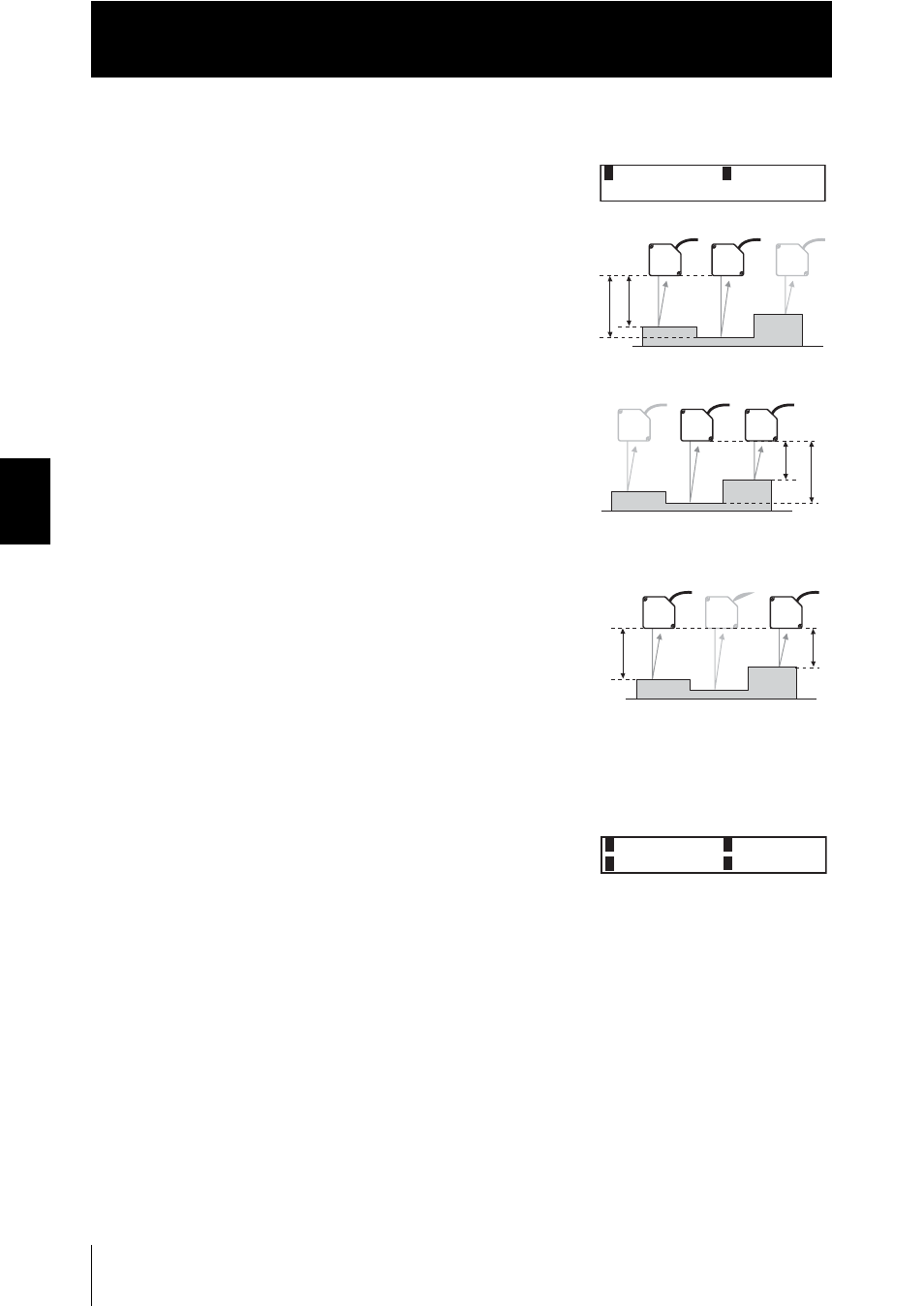

Measuring the Relative Difference between Steps
[SENSING]-[CALC]-[CALC]-[STEP]
3.
Set the expression of TASK1.
INPUT X: INPUT A
INPUT Y: INPUT B
4.
Following the same procedure as 2 to 3, set
up TASK2.
INPUT X: INPUT B
INPUT Y: INPUT C
5.
Following the same procedure as 2 to 3, set
up TASK3.
INPUT X: INPUT C
INPUT Y: INPUT A
• To output the judgment result of the operation
[I/O SET]-[I/O SET]-[OUT]
6.
Select TASK1, TASK2, or TASK3 depending
on the details to be output.
To output judgment on the difference between
point A and point B: Set TASK1 to I/O SET
To output judgment on the difference between
point B and point C: Set TASK2 to I/O SET
To output judgment on the difference between
point C and point A: Set TASK3 to I/O SET
▲
1 INPUT X 2 INPUT Y
Input A Input B Input C
Y X
Input A Input B Input C
X
Y
Input A Input B Input C
Y
X
▲
1 TASK1
3 TASK3
2 TASK2
4 TASK4
