Section 4
Measuring the Relative Difference between Steps
4-5
ZS-MDC
User’s Manual

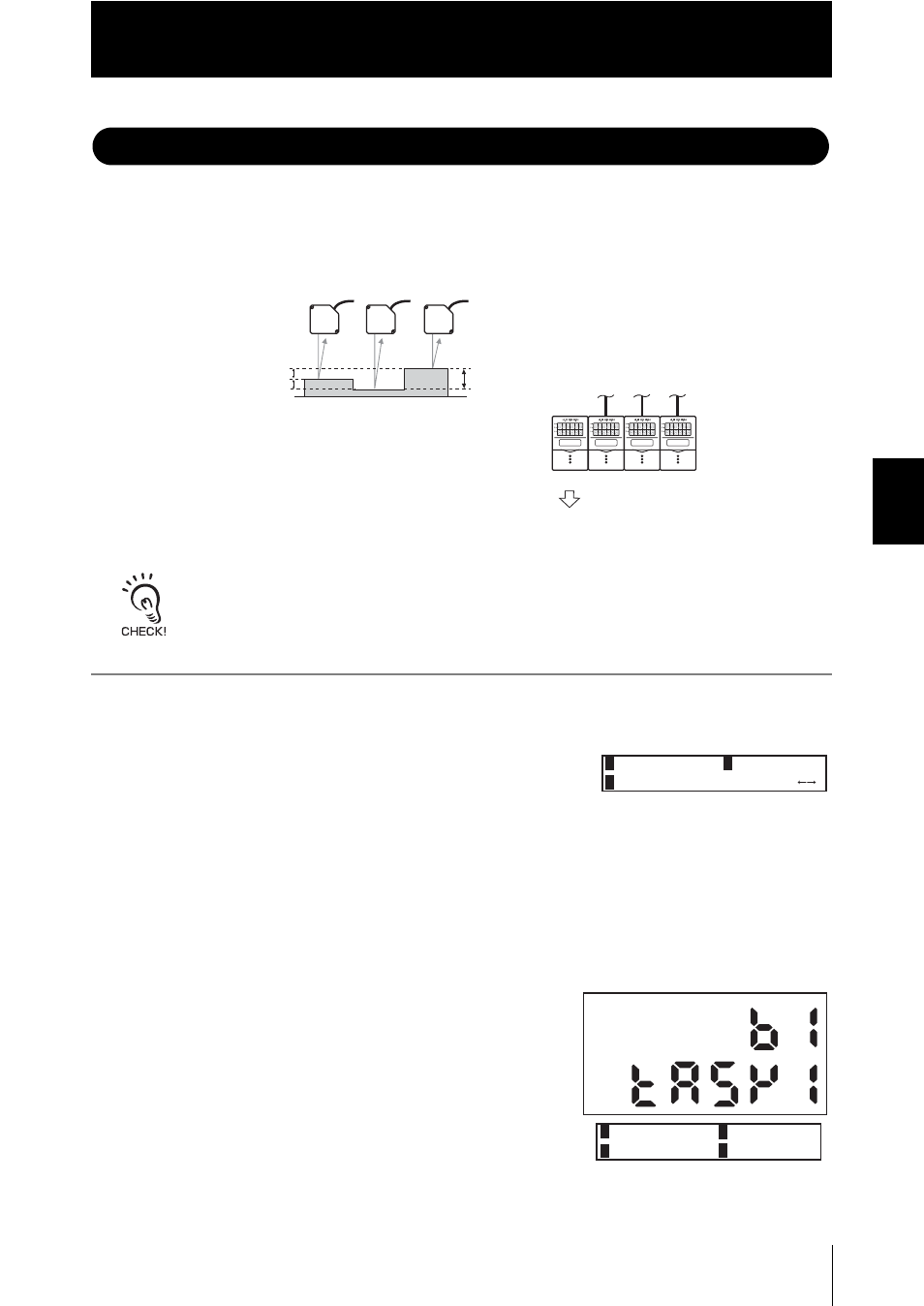

Measuring the Relative Difference between Steps
This is an example of how to measure the height at three locations on a workpiece, and
calculate the difference (step difference) between each of the measured values. Use
[STEP] (X-Y) for the expression.
For details on how to connect and install the Sensor Heads and Sensor Controllers, refer to the “ZS-L
User’s Manual.”
FUN Mode-[SENSING]-[SEL CH]
1.
Assign the CH No. of the controller to inputs
A to C to be used for the expression.
INPUT A:1CH
INPUT B:2CH
INPUT C:3CH
Press MENU key - ESC key.
2.
Select [TASK1].
Input B Input C
CH0 CH1 CH2 CH3
Input A Input B Input C
The operation and/or measurement results are output
as judgement output or linear output.
Input A
Step difference
Step difference
Step difference
▲
1 INPUT A
3 INPUT C
2 INPUT B
▲
1 TASK1
3 TASK3
2 TASK2
4 TASK4
