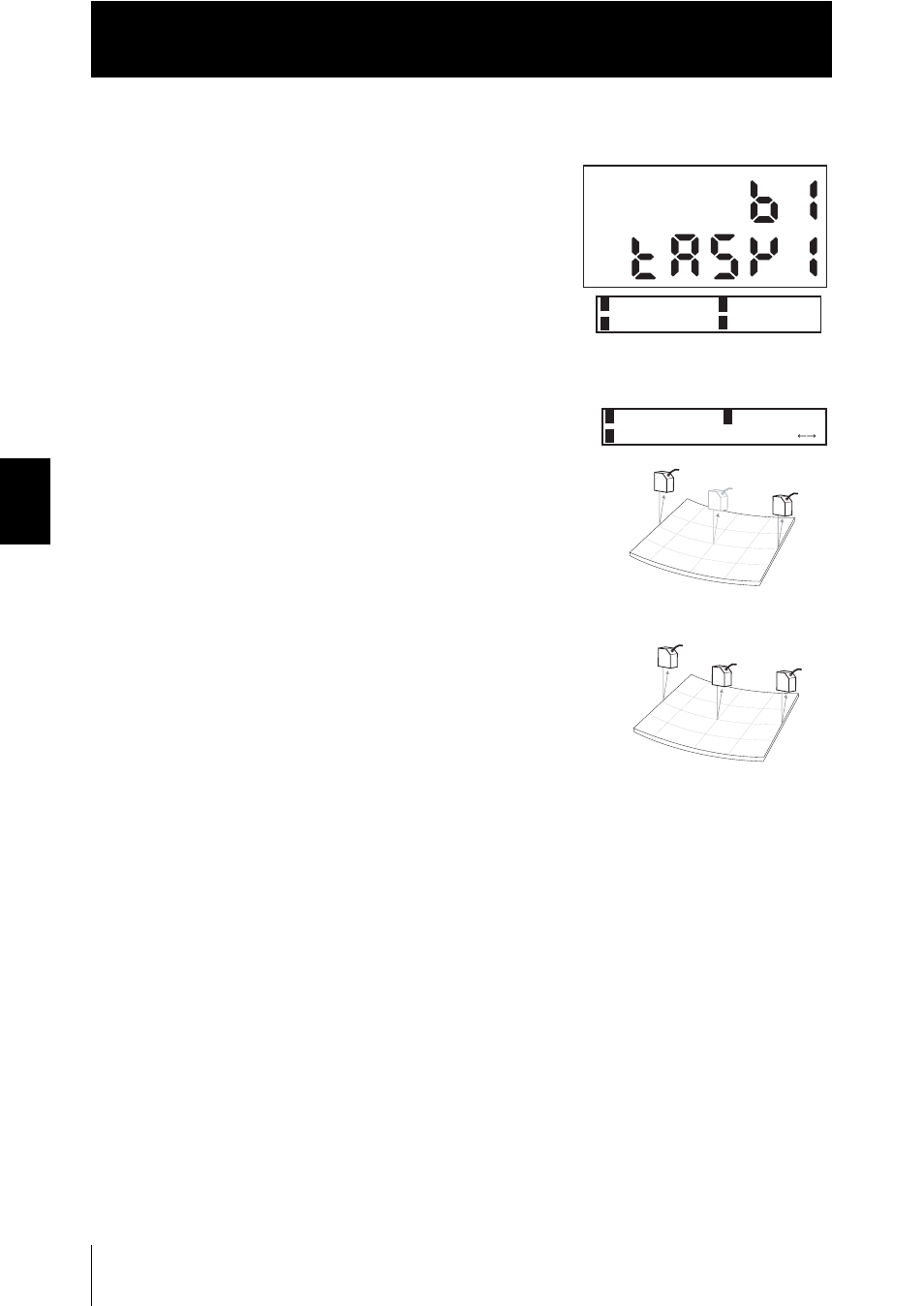

Measuring the Warp of a Workpiece
Press MENU key - ESC key.
2.
Select [TASK1].
[SENSING]-[CALC]-[CALC]-[K+mX+nY]
3.
Set the expression of TASK1.
INPUT K:0
INPUT m:1
INPUT n:1
INPUT X: INPUT A
INPUT Y: INPUT C
4.
Following the same procedure as 2 to 3, set
up TASK2.
INPUT K:0
INPUT m:1
INPUT n:-0.5
INPUT X: INPUT B
INPUT Y:TASK1
▲
1
TASK1
3
TASK3
2
TASK2
4
TASK4
▲
1
INPUT A
3
INPUT C
2
INPUT B
Input A
Input B
Input C
Input A
Input B
Input C
