3-8
Section 3
SETUP
ZS-MDC
User’s Manual
Section 3
About Setup
●

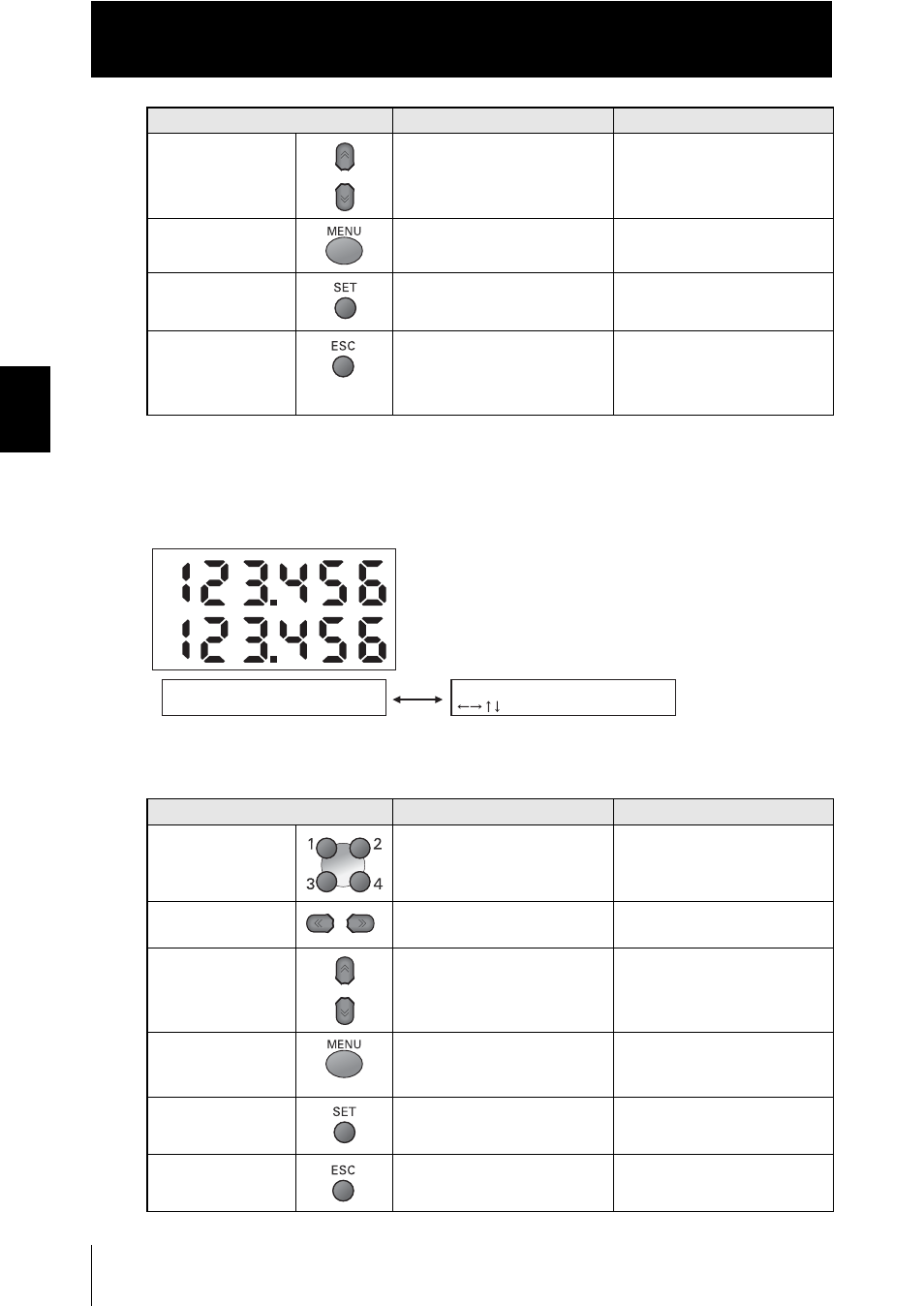

TEACH Mode
In this mode, the measured value is displayed at all times on the main display. The
threshold values are displayed on the sub-display. Which of the HIGH or LOW threshold
values is displayed changes according to the setting of the threshold selector switch.
Key Operations
↑ UP key
↓ DOWN key ↑ UP key: Executes trigger input.
↓ DOWN key: Executes reset
input. The function changes depend-
ing on the settings.
• Changes numerical values.
• Changes text.
MENU key Displays the display customize
menu. Returns to the top of the display
customize menu.
SET key Executes a zero reset. Applies numerical value settings.
ESC key Hold down for at least two sec-
onds to cancel a zero reset. Returns to the previous menu.
When the top menu is displayed,
returns to the measured value
display.
Key TEACHING DIRECT IN
Function keys Not used Not used
← LEFT key
→ RIGHT key
Not used Selects the digit in the threshold
numerical value.
↑ UP key
↓ DOWN key Not used Changes the threshold numerical
value.
MENU key Registers the measured value
when this key is pressed as the
threshold value. Not used
SET key Not used Applies the newly set threshold
value.
ESC key Not used Cancels the newly set threshold
value.
Key Measured Value Display Display Customize Menu
Displayed alternately
TEACH MODE
MENU : TEACHING TEACH MODE
: DIRECT IN
