Connecting the instruments

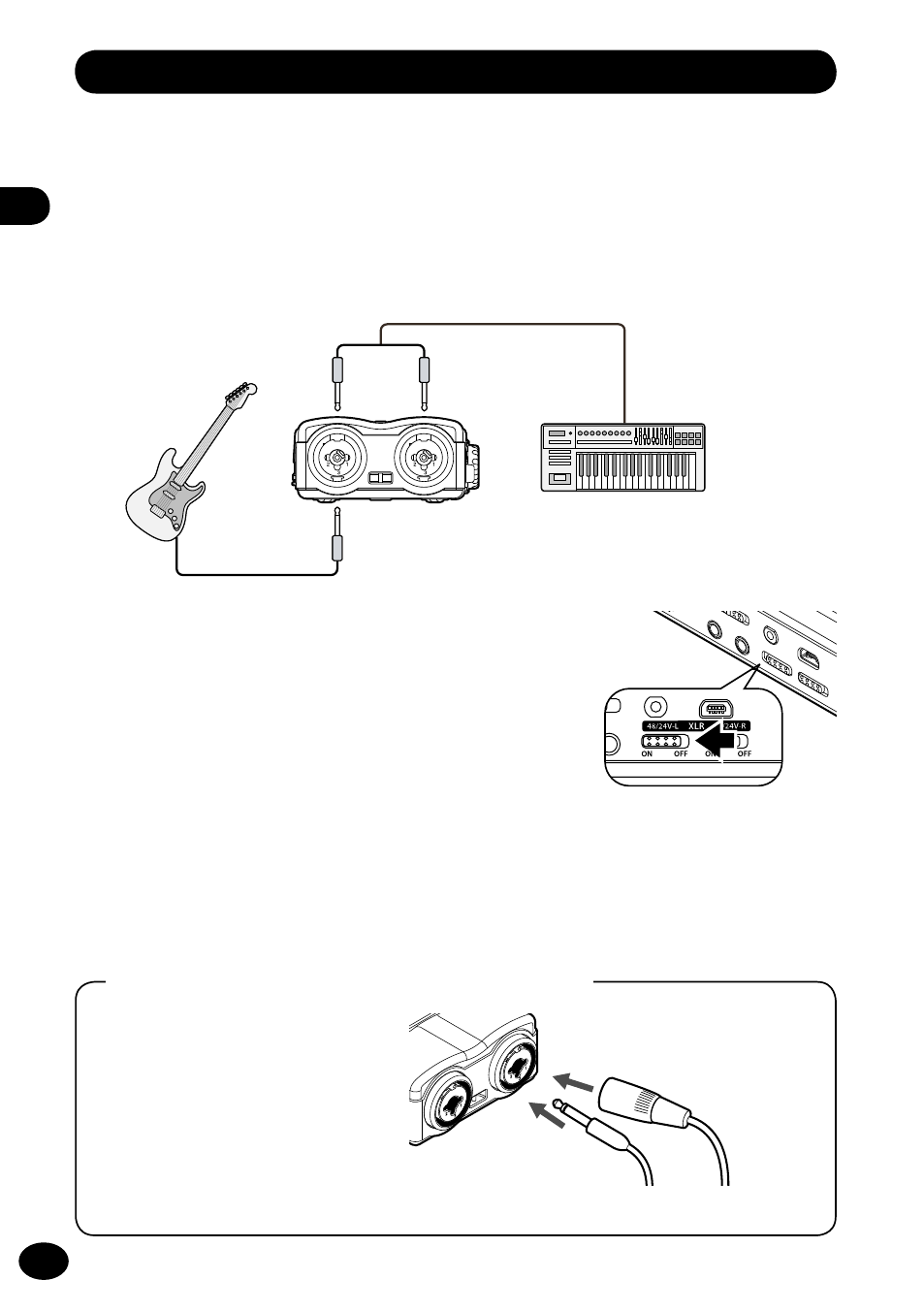

Connect a monaural instrument to the XLR/standard phone combo jack (L).
▌
The guitar, bass guitar, keyboard and other instruments can be directly connected to the XLR/
standard phone combo jack. Some settings are required when connecting a microphone that
needs the phantom power supply, such as a condenser microphone.
Connect a stereo output instrument such as
a keyboard to both the XLR/standard phone
combo jacks (L) and (R).
Connecting the microphone
Connect the dynamic or condenser microphone to the
XLR/standard phone combo jack (L) or (R). If the phantom
power supply is required, slide the XLR Power switch to
[ON] on the XLR/standard phone combo jack to which the
microphone is connected.
▌
Connection of the XLR/Standard Phone Combo Jack and Phantom Power Supply
XLR/standard phone combo jack
The XLR/standard phone combo
jacks of the recorder support
the XLR type and standard type
plugs.
Standard type
(unbalanced)
XLR type
A
• For details on the settings, refer to "Microphone Power Supply" (☞ p.83).
• Slide the XLR Power switch to [OFF] if the condenser microphone that needs the phantom power
supply is not connected.
