Page 49
– 46 –

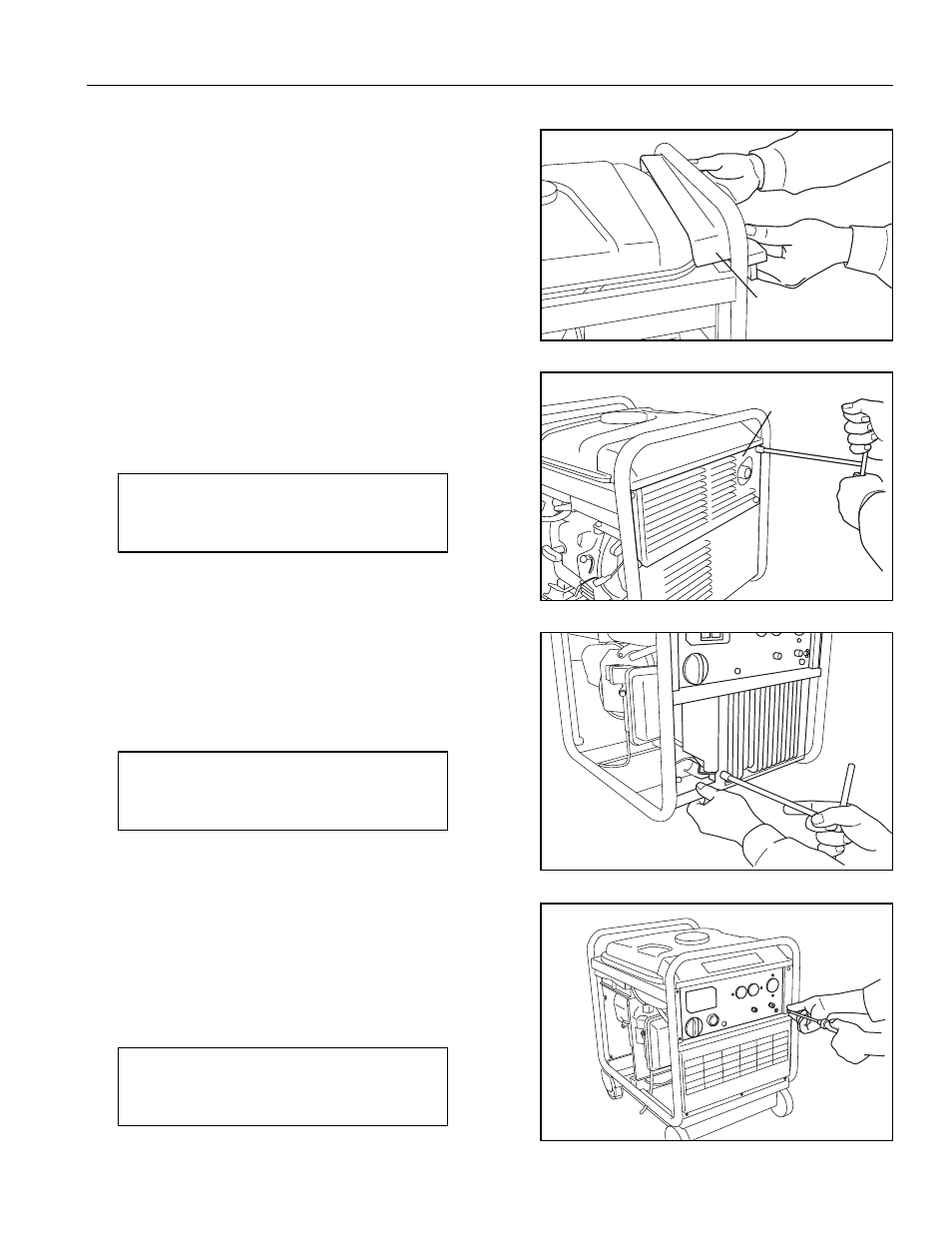

5-4-24 REAR COVER (UPPER) and
MUFFLER COVER (REAR)
(1) Attach the Rear Cover (Upper) first to the frame.
(2) Install the Muffler Cover (Rear) onto the Rear Cover
(Upper) and the frame.
M6 x 18mm Flange bolt : 6pcs.
(2) Assemble the Front Cover (Lower) below the Front
Cover (Upper)
M6 x 18mm Flange bolt : 2 pcs.
(3) Attach the Front Cover (Upper).
M6 x 18mm Screw : 4 pcs.
5-4-25 CONTROL PANEL and INVERTER UNIT
(1) Assemble the Bracket (Cover) to the inverter unit.
M6 x 18mm Flange bolt : 2 pcs.
M6 x 25mm Flange bolt : 1 pce. (for right side of
the inverter unit)
Tightening torque : 4.0-6.0
N m
40-60
kgf cm
(3.0-4.4
ft lbs)
Tightening torque : 4.0-6.0
N m
40-60
kgf cm
(3.0-4.4
ft lbs)
Tightening torque : 4.0-6.0
N m
40-60
kgf cm
(3.0-4.4
ft lbs)
Muffler cover
(Rear)
Rear cover
(Upper )
