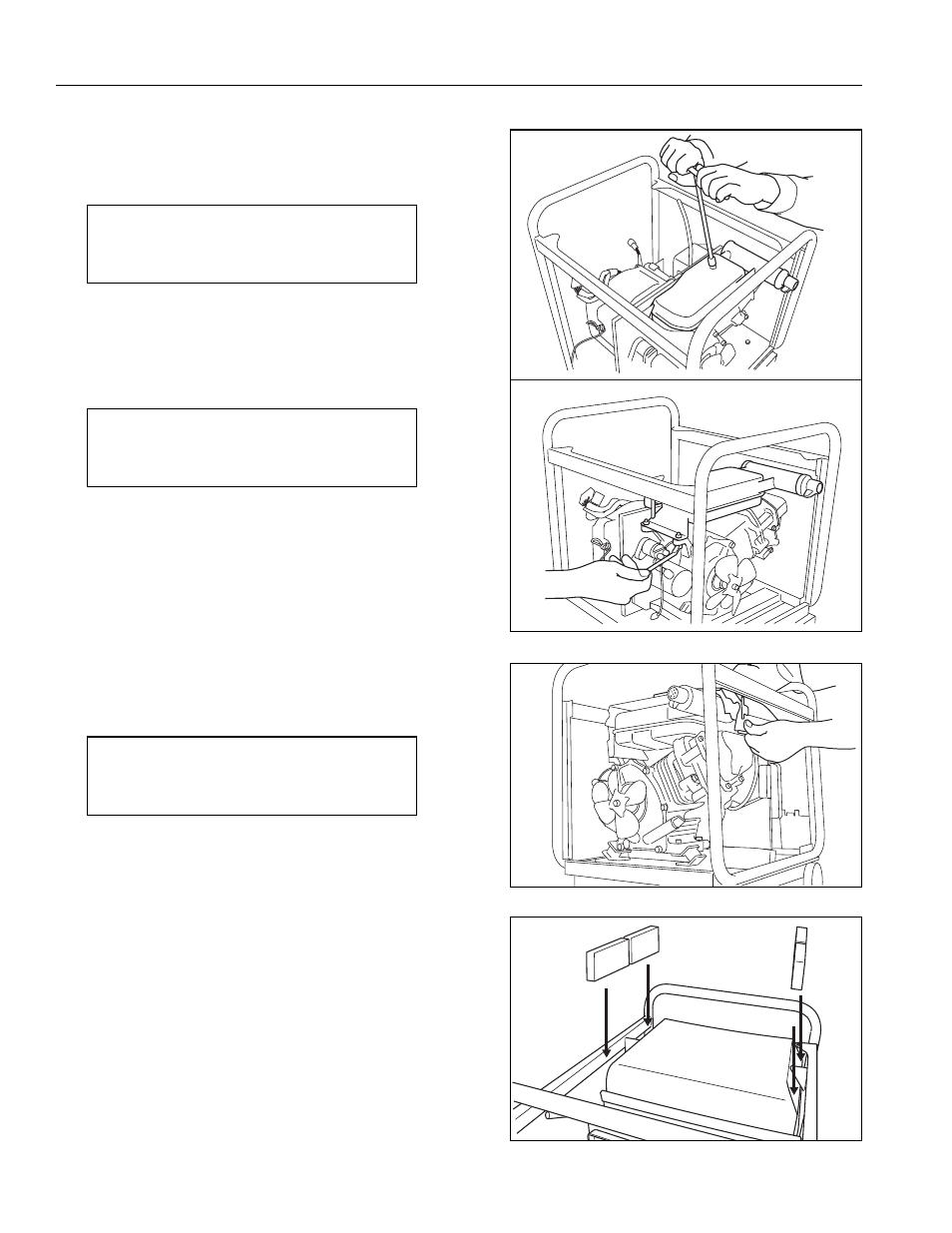

5-4-15 MUFFLER
Install the muffler to the engine.
M8 Flange nut : 2 pcs.
M6 x 23mm Flange bolt : 2 pcs.
Tightening torque : 4.0-6.0 N m
40-60 kgf cm
(3.0-4.4 ft lbs)
Tightening torque : 4.0-6.0 N m
40-60 kgf cm
(3.0-4.4 ft lbs)
Tightening torque : 17.0-19.0 N m
170-190 kgf cm
(12.5-14.0 ft lbs)
5-4-16 MUFFLER COVER
Attach the Muffler Cover to the muffler.
M6 x 12mm Flange bolt : 4 pcs.
5-4-17 SPONGE
Install the Sponges between the fuel tank and the frame
as shown in the figure righrt.
