– 40 –
Recoil starter
Tightening torque : 6.5-8.5 N m
65-85 kgf cm
(4.8-6.3 ft lbs)

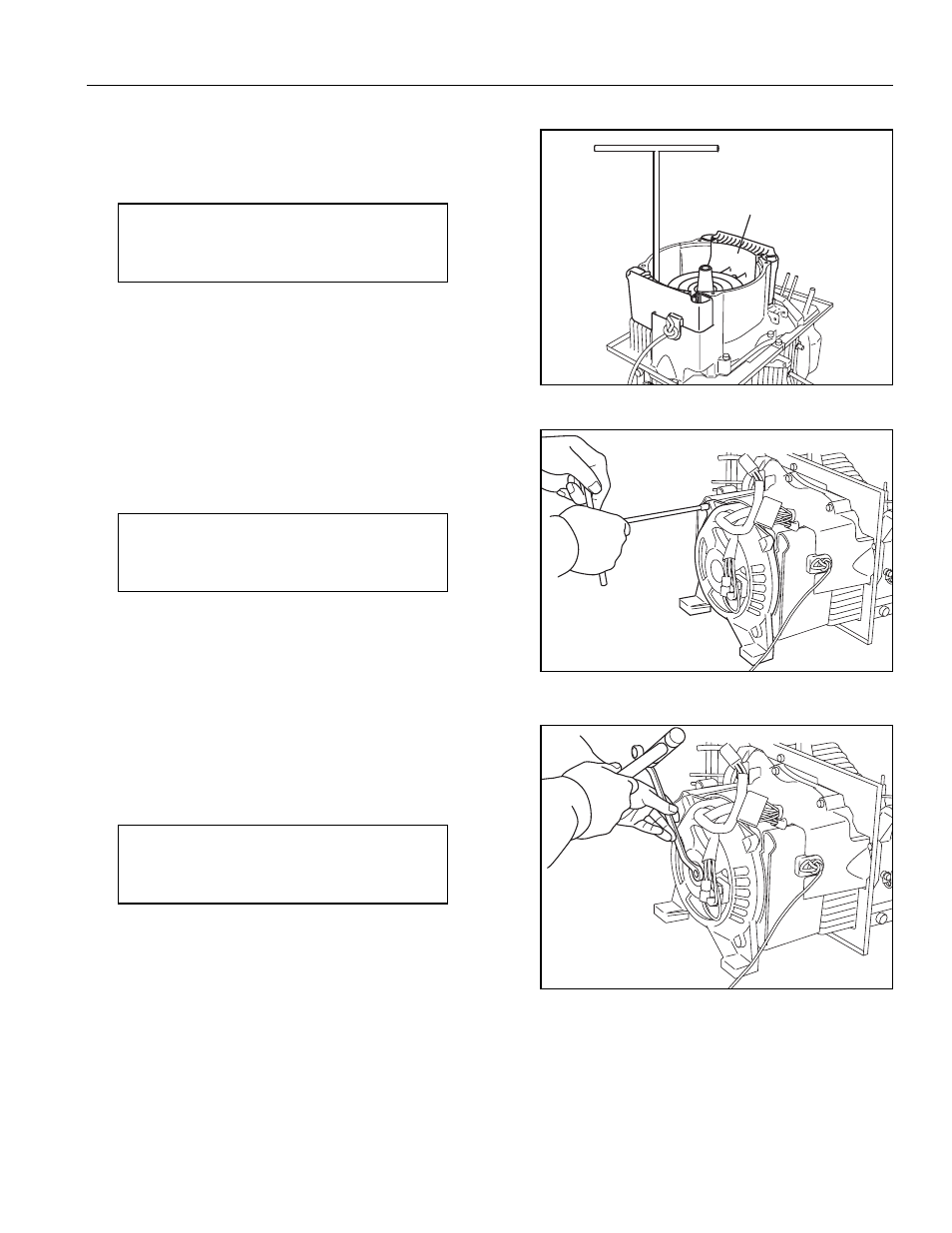

5-4-7 RECOIL STARTER
Assemble the Recoil Starter to blower housing.
M6 x 18mm Bolt : 3pcs.
NOTE : Refer to section 5-5 for further instruction for
disassembly/reassembly procedures of recoil
starter.
5-4-8 REAR COVER
Assemble the Rear Cover to the blower housing.
M6 x 25mm Bolt : 4pcs.
Tightening torque : 6.5-8.5 N m
65-85 kgf cm
(4.8-6.3 ft lbs)
Be extremely careful not to have your finger pinched
between the rotor and stator due to the strong
magnetic force between them.
5-4-9 THROUGH BOLT (thread in reverse direction)
Insert the Through Bolt into the center of rotor shaft and
tighten it.
M10 Through Bolt : 1 pce.
Tightening torque : 19.0-21.0 N m
190-210 kgf cm
(14.0-15.5 ft lbs)
Tools : M14 Socket wrench
NOTE : The thread of the Through Bolt is in reverse
direction.
Therefore, torque it counter-clockwise to
tighten it.
