– 44 –

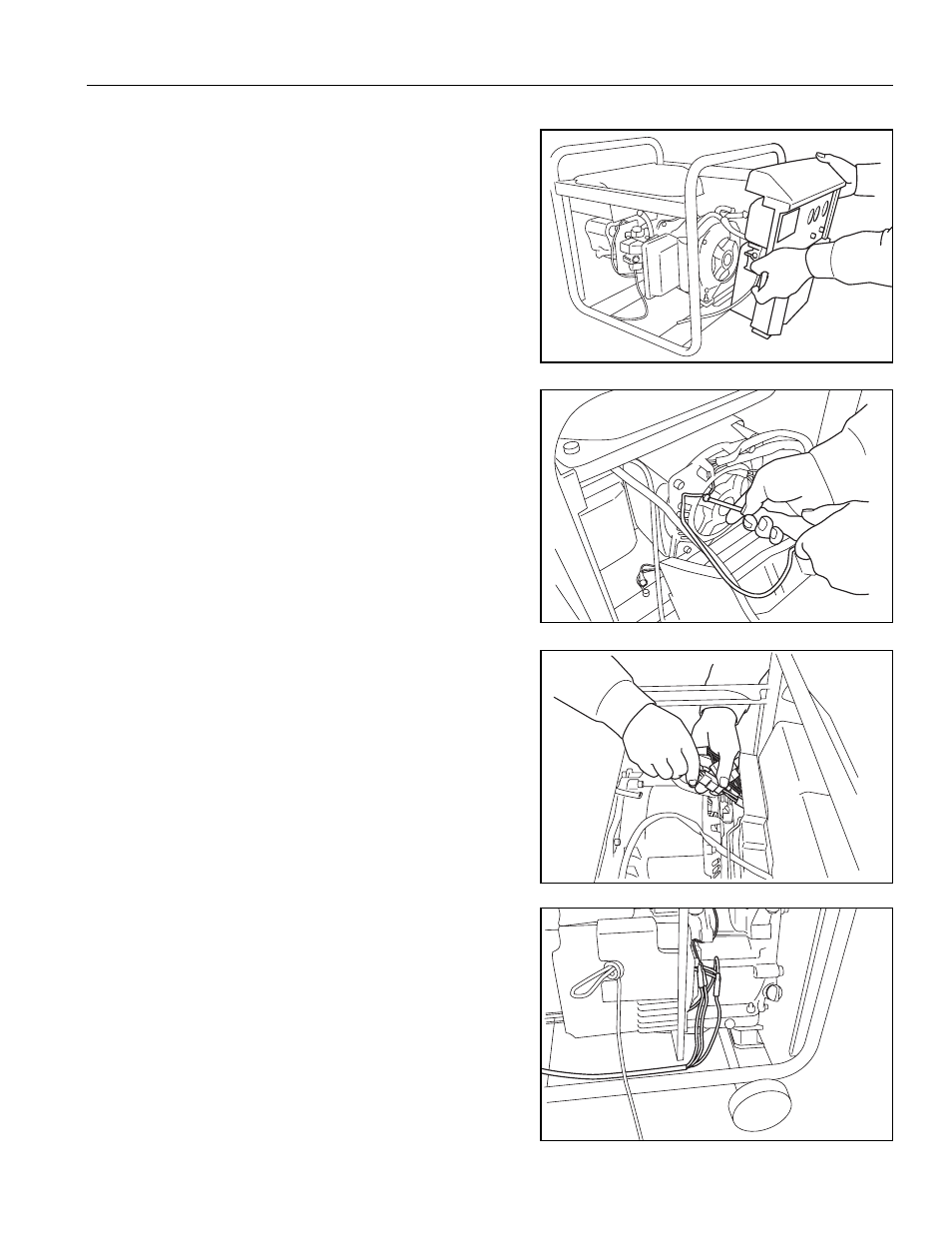

5-4-18 CONTROL BOX and INVERTER UNIT
(1) Temporarily assemble the Control Box and Inverter
Unit.
(2) Connect the wire harness to the control box and
inverter unit.
5-4-20 CONNECTION OF WIRING HARNESS
(1) Engage the connectors of wiring harness between
the control panel, inverter unit and the alternator.
(2) Engage the couplers of wiring harness between the
control panel and the inverter unit.
(3) For electric starting models, connect the wires to the
starting motor.
The battery cable (positive) to pass below the
alternator to connect to the battery.
5-4-19 GROUNDING WIRES
Fasten the ground wire from the alternator and the one
from the inverter unit together to the rear cover with a
screw.
Tools : Screw driver
