– 28 –

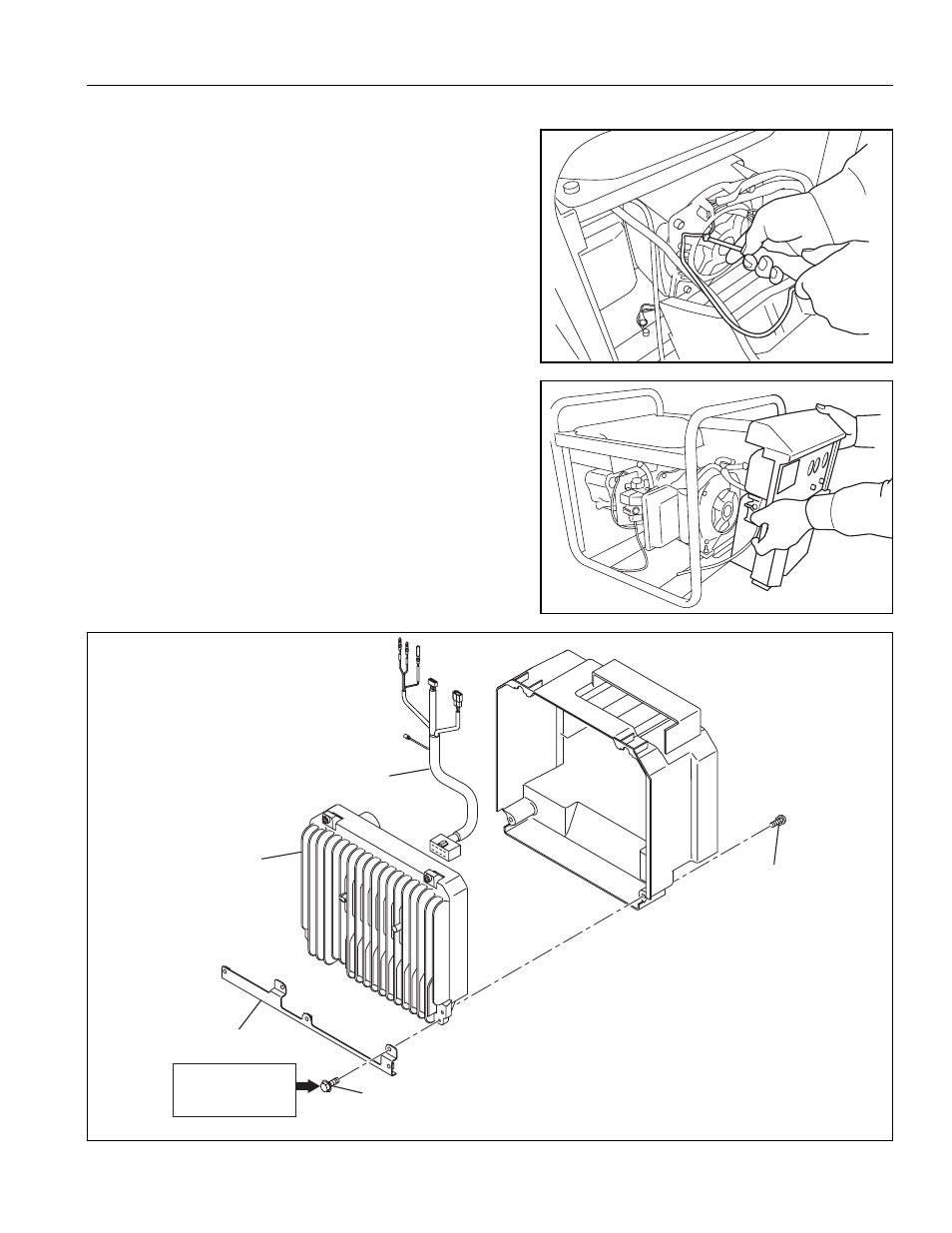

5-3-12 GROUNDING WIRE (2)
Disconnect the two grounding wires from the alternator
and the inverter unit.
Tools : Screw driver
5-3-13 CONTROL BOX and INVERTER UNIT
Removing the cover bracket from the bottom of the
inverter unit, separate the control box and inverter unit.
For further taking apart, refer to " INVERTER UNIT
COMPONENTS" and "CONTROL BOX COMPONENTS".
M6 Bolt
Note : Remove the nut for the grounding wire on
the back side before loosening the bolt.
Screw and Washer
Bracket (Cover)
Inverter unit
Wire harness
4.0 - 6.0 N
･m
40 - 60 kgf
･cm
(3.0 - 4.4 ft
･lbs)
INVERTER UNIT COMPONENTS
