– 35 –
Hand-pressing
machine

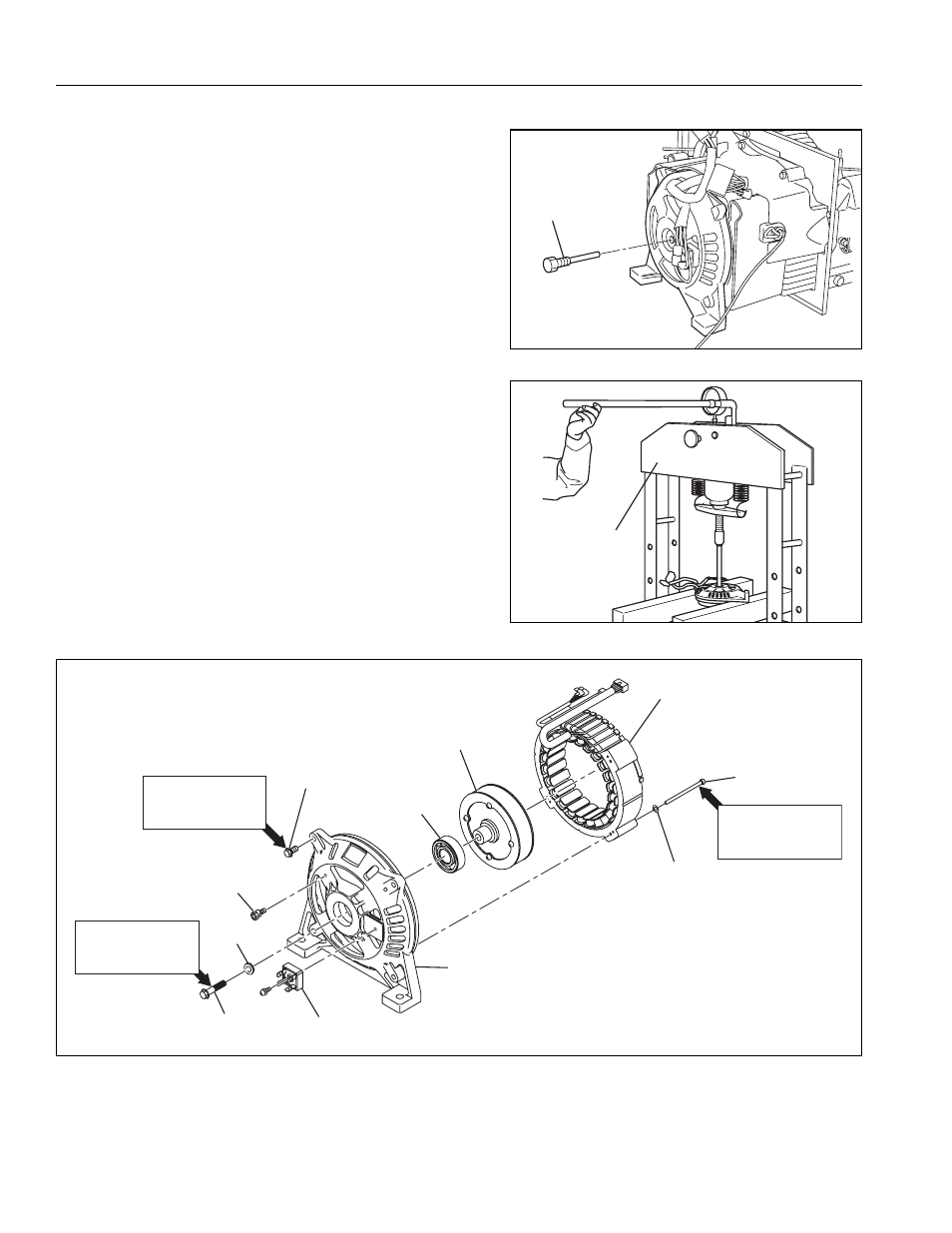

(2) Using a special tool, Rotor Puller, remove the rear
cover together with rotor and stator.
Special tools : Rotor Puller (33B9990501)
NOTE 1: Usually, you do not need to separate the
rotor from the stator. However, should it be
necessary, use a hand-pressing machine to
press out the rotor shaft from the bearing.
NOTE 2: Rotor and stator are bound by a strong
magnetic force. Use extreme care not to
have your fingers pinched by them when
handling rotor and stator.
Rotor puller
M5 Bolt
M10 Bolt
M6 Bolt and Washer
Stator
Rotor
Screw
Rear cover
Rectifier
Bearing
Spring washer
Washer
6.5 - 8.5 N
･m
60 - 85 kgf
･cm
(4.8 - 6.3 ft
･lbs) 7.5 - 9.5 N
･m
75 - 95 kgf
･cm
(5.5 - 7.0 ft
･lbs)
19.0 - 21.0 N
･m
190 - 210 kgf
･cm
(14.0 - 15.5 ft
･lbs)
ALTERNATOR COMPONENTS
