– 33 –

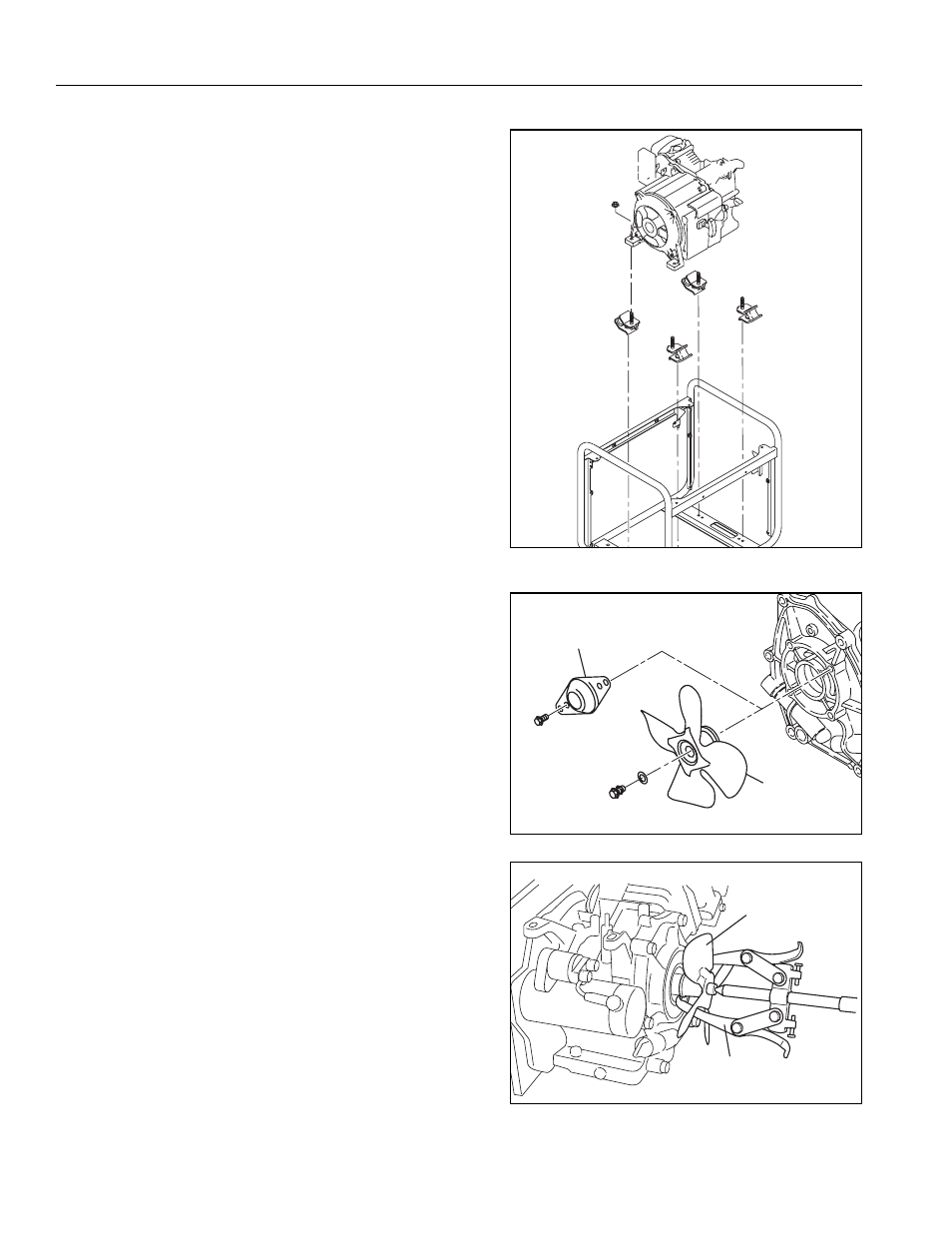

5-3-18 ENGINE BLOCK
(1) Loosen the four M8 nuts that fasten the engine to the
mount rubbers, and remove the engine.
M8 Flange nut : 4pcs.
Tools : 12mm Box wrench
(2) Remove the mount rubbers from the frame as
necessary.
M8 Flange nut : 4pcs.
Tools : 12mm Box wrench
5-3-19 CRANKSHAFT COVER (OPEN FRAME TYPE)
and COOLING FAN (SOUNDPROOF TYPE)
OPEN FRAME TYPE:
Loosen the two M8 bolts and remove the crankshaft
cover.
M8 x 12 Flange bolt : 2pcs.
Tools : 12mm Box wrench
SOUNDPROOF TYPE:
After removing the M8 bolt, remove the cooling fan from
the crankshaft using an ordinary puller.
M8 x 25 Bolt : 1pce.
Tools : 13mm Box wrench
Puller (Ordinary tool available on the market)
Soundproof type
Open frame type
Cover
(Crankshaft )
Fan (Silent)
Cooling fan
Puller
