20

Regency FG39 FireGenie Freestanding Gas Stove

Notch

E)02-45

Bracket

A)02-65

The bottom right edge of Log G)02-48 must

sit snugly against the bracket

Side View

G)02-48

E)02-45

F)02-47

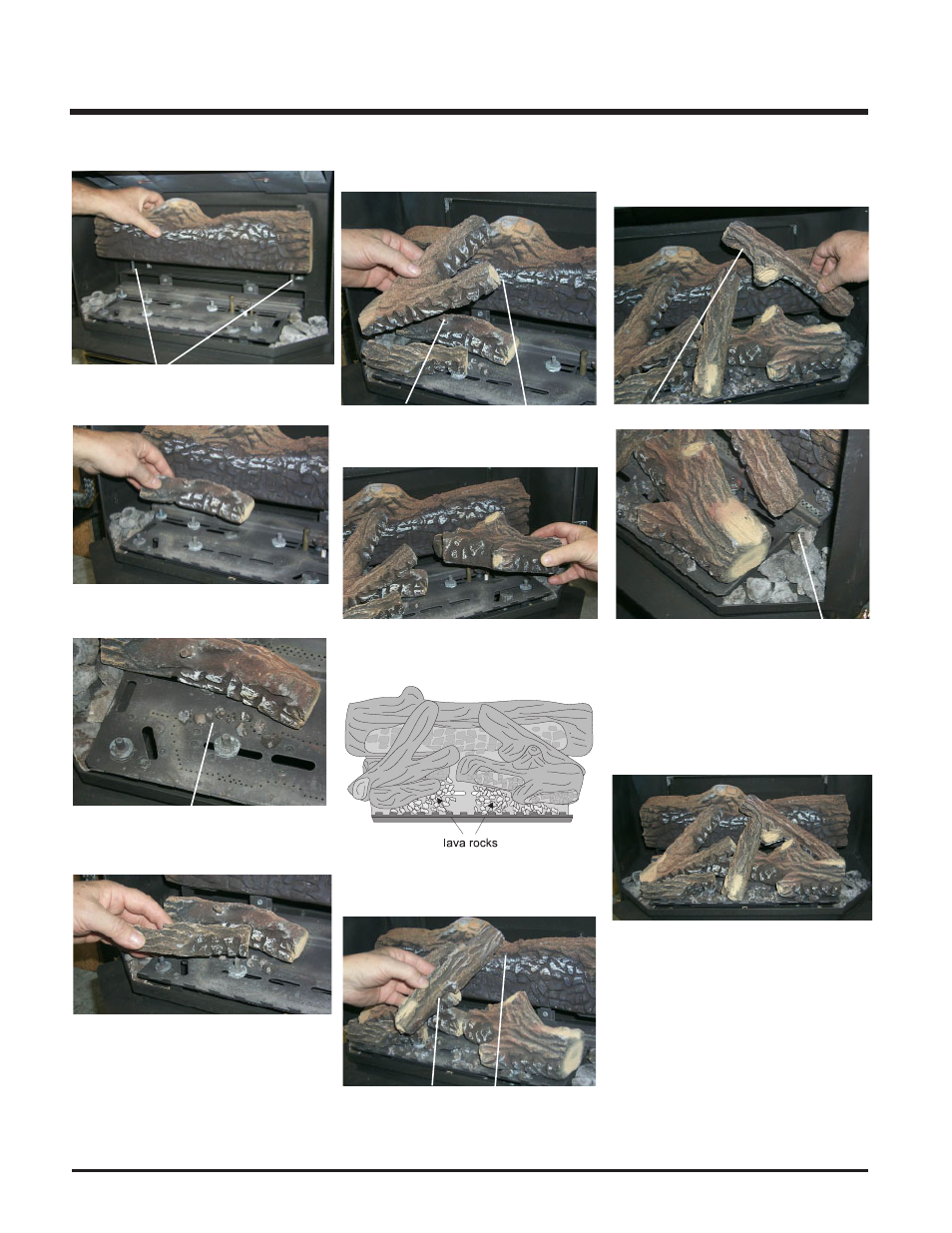

11) Position notch in Front Right Log G)02-48

on Log F)02-47 and push the bottom right

edge against the bracket on the burner

tray.

G)02-48

12) Test fire to ensure proper light off (make

sure flame flows smoothly from one end of

burner to the other. If there is any flame

hesitation, check that area for any block-

age of the burner port.

F)02-47

E)02-45

A)02-65

G)02-48

D)02-46

B)02-56

C)02-44

Cutout

Pin

D)02-46

B)02-56

A)02-65

7) Place the Left Top Log D)02-46 on the pin

on Log B)02-56 and on top of the cutout on

Log A)02-65.

E)02-45

C)02-44

8) Place Front Right Log E)02-45 on the two

pins as shown.

9) Place the lava rock in the area between the

left and right logs, leaving a space in the

middle for log (F) 02-47.

Cutout

Notch

F)02-47

E)02-45

A)02-65

10) Place the notch in Center Log F)02-47 over

Log E)02-45 and across the cutout on Log

A)02-65.

C)02-44

Pins on Rear Log Support

A)02-65

B)02-56

3) Place Rear Log A)02-65 on the two pins on

the rear log support.

4) Place the Middle Left Log B)02-56 on the

two pins as shown.

5) Sprinkle some lava rock just in front of B)

02-56 on the burner holes.

lava rock

B)02-56

6) Place Front Left Log C)02-44 onto the 2

front pins as shown.

INSTALLATION
