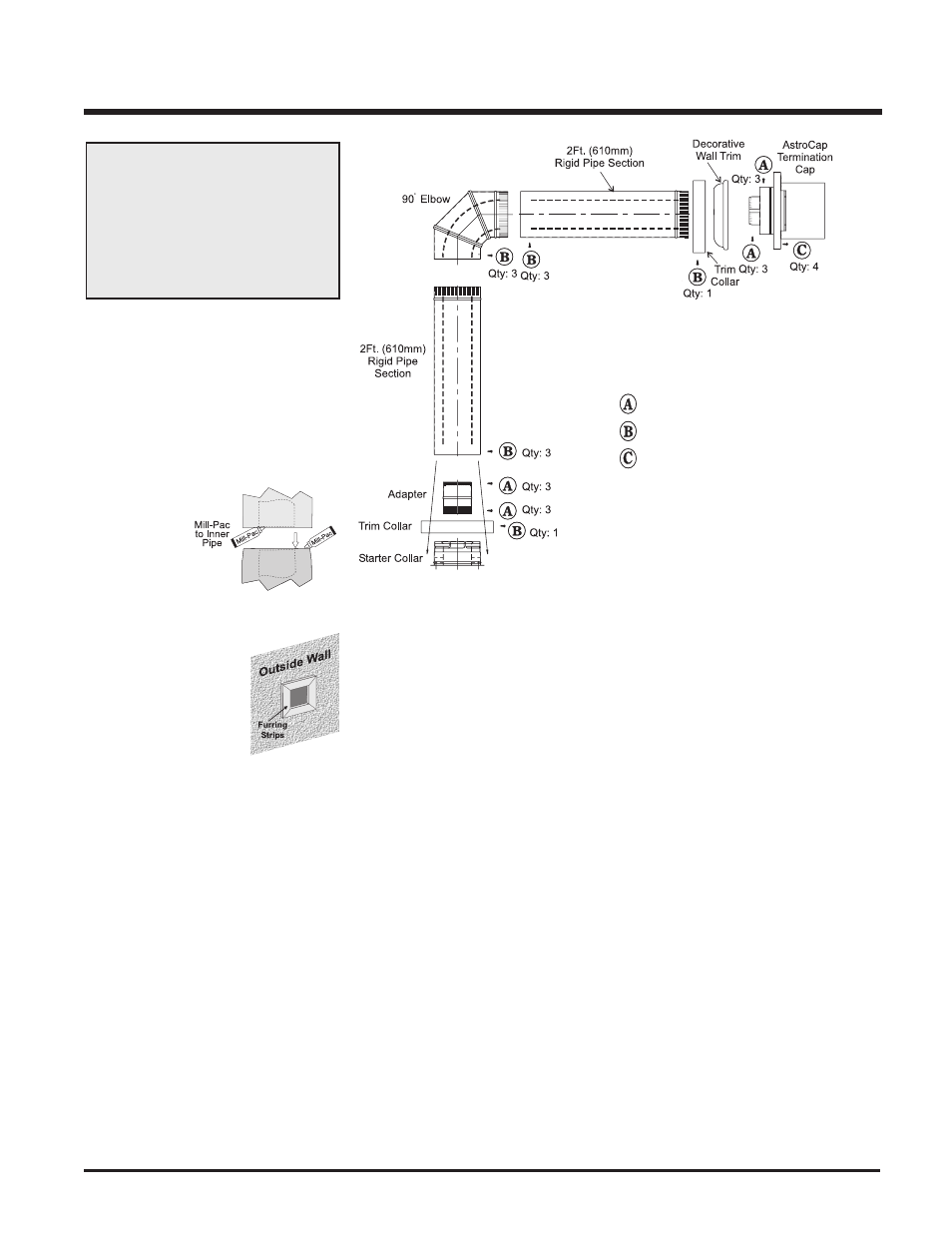

background image

Regency FG39 FireGenie Freestanding Gas Stove

11

INSTALLATION

d) Cut the 2 ft. (.6m) section of rigid pipe

to length. Ensure that the pipe length

when cut will seat onto both the start-

er collar and the 90

o

elbow. Crimped

section of rigid pipe seats into

the 90

o

elbow. Only cut the un-

crimped side of pipe.

Dismantle all pipe sections including flue

terminal.

3) Attach the 4" (102mm) dia. flex liner to the

flue terminal ensuring that the flex overlaps

the collar of the flue terminal by a minimum

of

1-3/8"(35mm). Use Mill-Pac to seal and

secure with 3 of the #8 x 1/2" (13mm)

screws (stainless steel).

4) Attach the 2 ft. (.6m)pipe section to the flue

terminal using Mill-Pac and/or high temper-

ature silicone and attach with 3 of the #8 x

1/2" (13mm) screws (stainless steel).

siding standoff to prevent water from en-

tering and to make a tight seal between the

cap and the standoff.

7) Stretch the 4" (102mm) dia. flex liner out

fully and get a trial fit of the liner onto the 4"

(102mm) dia. starter collar.

8) Cut the 4" (102mm) dia. flex liner to the

desired size.

Hint: leave an extra 12" to 16" (305mm to

406mm) of length, this will make the final

assembly easier to work with.

9) Secure the 4" (102mm) dia. flex liner to the

4" (102mm) adapter with Mill-Pac and 3 of the

#8 x 1/2" (13mm) screws (stainless steel).

10) Slide the Decorative Wall Cover over the

pipe sections.

11) Slide the 90

o

elbow (crimp end up) and the

2 ft. (.6m) pipe section (crimp end up) over

the 4" dia. flex liner.

12) Slide the trim collar over the pipe section to

cover the joint.

13) Install the spring spacers onto the pipe

sections.

14) Secure the 4" (102mm) dia. flex liner with

adapter onto the stove collar. Put a bead of

Mill-Pac around the appliance adapter and

secure with 3 screws (#8 x 1/2" / 13mm,

stainless steel).

15) Attach the pipe section onto the starter

collar by sealing with Mill-Pac and/or high

temperature silicone and securing with 3 of

the #8 x 1/2" (13mm) (black) screws. Pipe

seams should be facing the wall.

16) Attach the 90

o

elbow onto the pipe section

by sealing with Mill-Pac and/or high temper-

ature silicone and securing with 3 of the #8

x 1/2" (13mm) screws (black).

17) Slide the 2 ft. (.6m) pipe section onto the 90

o

elbow. The flex may have to be com-

pressed back in order for the pipe to prop-

erly mate to the elbow. Seal with Mill-Pac

and/or high temperature silicone and se-

cure with 3 of the #8 x 1/2" (13mm) screws

(black). Pipe seams facing down.

18) Install the trim collar over the starter collar

and secure with a #8 x 1/2" (13mm) screw

(black).

If the pipe needs to be touched up, use only

Stove Brite High Temperature Metallic Black

Stove Paint.

NOTE: All inner joints must be sealed

with Mill-Pac.

All outer joints may be sealed with

high temperature silicone.

Note: The pipe seam

should be facing

down.

Note: To make the instal-

lation more aes-

thetically pleasing,

we

recommend

framing out a square that the cap

can be mounted on.

Note: If installing termination on a siding

covered wall, a vinyl siding stand-

off or furring strips must be used

to ensure that the termination is

not recessed into the siding. For

vinyl siding standoff installation re-

fer to the Dura-Flue Termination

instructions.

5) Slide the partially connected pipe and flue

terminal assembly through the wall (from

the exterior into the interior) and secure the

cap to the exterior wall with 4 of the supplied

screws (#8 x 1-1/2" (38mm) drill point,

stainless steel).

Note: The four screws provided for the

flue cap should be replaced with

appropriate fasteners for stucco,

brick, concrete, or other types of

sidings.

6) A bead of non-hardening mastic should be

run around both the termination and vinyl

Hint: Apply the

sealant (Mill-

Pac and/or high

temperature sil-

icone) to the

outer pipe be-

fore connecting

the inner pipe.

#8 x ½" (13mm) Self Tapping, Stainless Steel

#8 x ½"

Self Tapping, Black

(13mm)

#8 x 1½" (38mm) Drill Point, Stainless Steel
