Regency FG39 FireGenie Freestanding Gas Stove

INSTALLATION

DV STOVE HORIZONTAL FLUE KIT (#946-112) INSTALLATION

Minimum

Installation

Height:

FG39: 59-3/4" ( 1518mm)

Review the following sequence of instruc-

tions which are typical of most installations.

The sequence may vary depending on wall

thickness. Refer to flue location and clear-

ance dimensions on pages 8 to 9.

1) Set the unit in its desired location. Check

to determine if wall studs will be in the way

of the fluing system, adjust location until all

clearances are met and there are no

obstructions.

Note: A 1-1/2"(38mm) clearance around

the outer pipe must be main-

tained except that only a 1"

(25mm) clearance is needed at

the termination end.

IMPORTANT:

Do not locate termination hood where

excessive snow or ice buildup may oc-

cur. Be sure to check flue termination

area after snow falls, and clear to pre-

vent accidental blockage of fluing sys-

tem. When using snow blowers, make

sure snow is not directed towards flue

termination area.

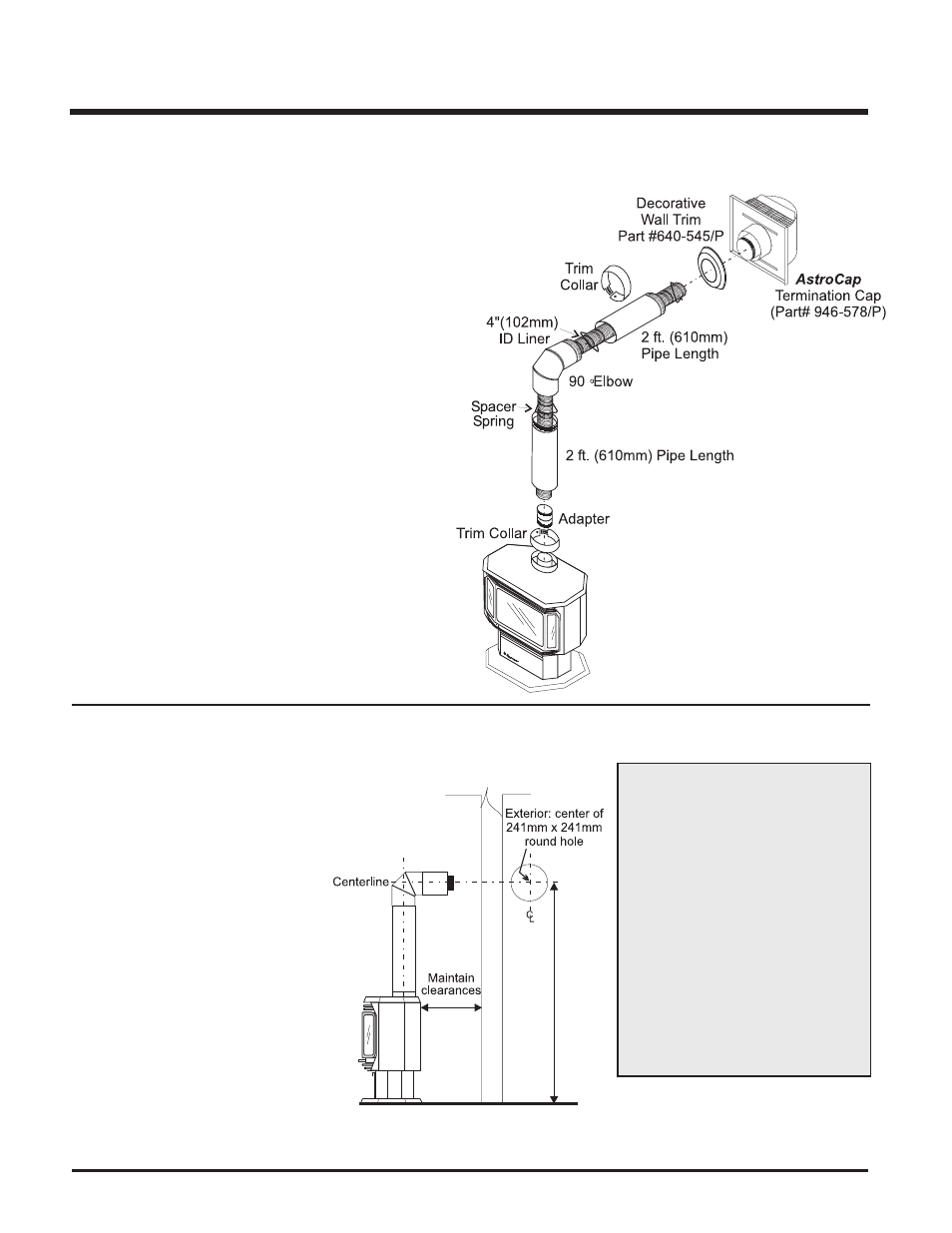

2) Assemble a trial fit to determine the ver-

tical center-line for the flue termination.

a) Cut a 241mm round hole on both the

interior and exterior wall.

b) Attach the 2 ft. (.6m) pipe section to

the flue terminal and slide into posi-

tion from the exterior. The larger

diameter end of the adjustable

pipe goes to the flue terminal.

c) Install the 90

o

elbow onto the adjust-

able pipe to determine the vertical

centerline of the starter collar on the

unit.

Note: if the centerline cannot be

met, the adjustable sections will

have to be cut.

DV STOVE HORIZONTAL FLUE KIT

Horizontal Stove Flue Kit (Part # 946-112) includes all the parts needed to install the FG39

Freestanding Gas unit with minimum horizontal and vertical vent dimensions. For installations that

require longer vertical and/or horizontal vents use the Dura-Vent system as shown in your manual.

Qty.

Description

1)

2 Rigid Pipe Section 1.2m length, 165mm inside diameter

2)

1 Flex Liner, compressed aluminium 2 ply liner, 102mm inside diameter

3)

4 spring spacers

4)

1 90 deg. Elbow

5)

1 Decorative Wall Trim

6)

1 Adapter

7)

1 AstroCap Termination Cap

8)

2 Trim Collar

9)

1 tube of Mill-Pac, high temperature sealant

10) 12 Screws, #8 x 1/2" (13mm) Self tapping, Stainless Steel

11) 14 Screws, #8 x 1/2" (13mm) Self tapping, Black
12)

4 Screws #8 x 1-1/2" (38mm) Drill Point, Stainless Steel

Optional:
946-206 Vinyl Siding Standoff for AstroCap

Note:

a ) Liner sections should be continuous

without any joints or seams.

b) This is an approved system, therefore

components in this system must not be

substituted for any other manufactur-

er's products.

c) Wall Thimble is required when install-

ing through a combustible wall.
